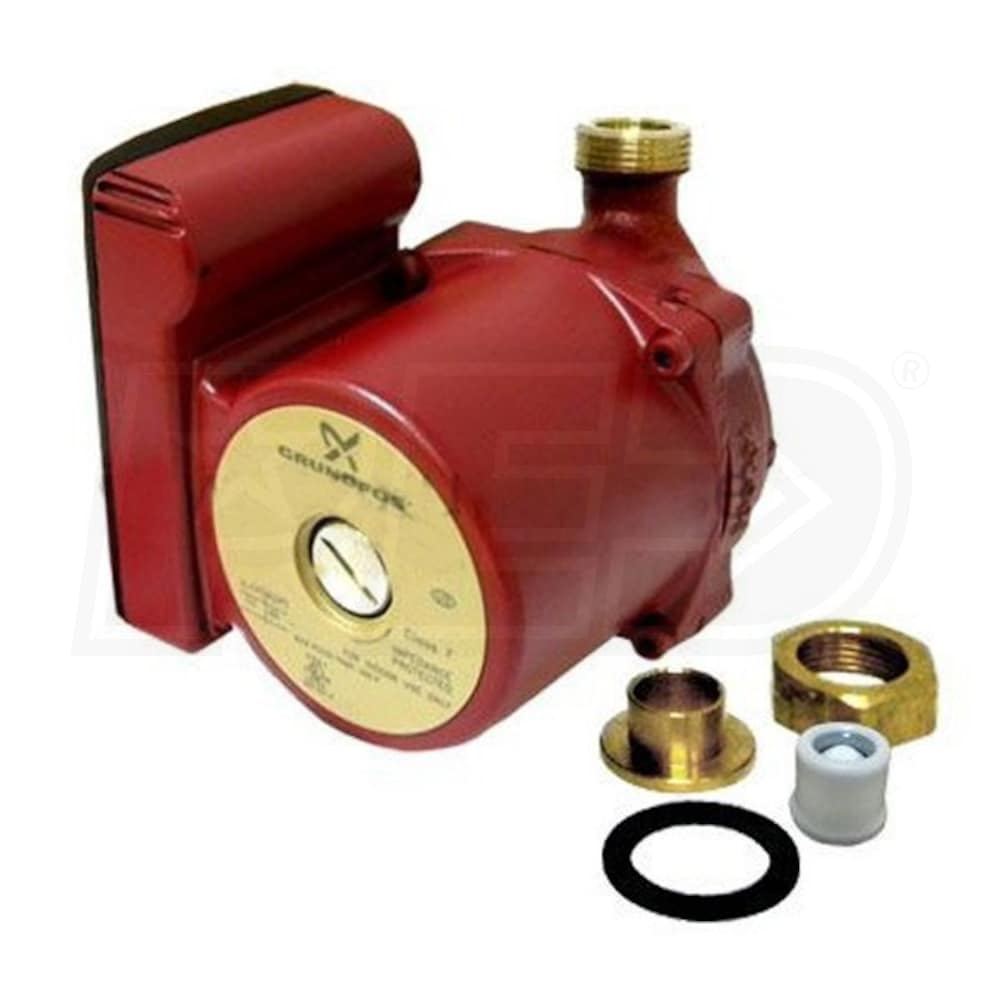

Grundfos UP - 1/25 HP - Single-Speed Circulation Pump - Bronze - 3/4" Sweat - Check Valve
Grundfos UP - 1/25 HP - Single-Speed Circulation Pump - Bronze - 3/4" Sweat - Check Valve
+
Share This Product
-
Product Description
-
11Reviews
-
2Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Durable Bronze Construction
- The Grundfos UP15-18BUC7 is crafted from bronze, which gives the pump both extended lifespan and protection against corrosion.
- Whisper Quiet Operation
- The UP15-18BUC7 pump runs quiet even at high flow levels, ensuring the pump won't distract you from your work or disrupt your sleep.
- Resilient Wet-Rotor Fluid Movement
- The wet rotor design of the UP15-18BUC7 lends integrity to both the motor and the rotor itself, providing exceptional longevity to any hydronic system the pump is a part of.
Grundfos pumps offer the pinnacle of reliability and performance for a large variety of water circulation applications. From home hydronic circulation to large scale commercial water movement, Grundfos has a pump that will provide years of trouble-free service. The UP15-18BUC7 is a single speed circulator with an integrated flow check valve, limiting water flow to a single direction. Solid bronze construction guarantees years of reliable performance with minimal maintenance needs, while hardwire electrical connection design allows the pump to tap directly into your home's electrical supply.
Specifications
General Information
Product Line
UP15-18
Speed Settings
Single-Speed
Connection Type
Sweat
Mount Type
In-Line
Material
Bronze
Drive Type
Wet Rotor
UPC
05700391411656
Performance
Maximum Head
14.4 Feet
Maximum Flow Rate
14.5 GPM
Maximum Operating Pressure
145 PSI
Minimum Fluid Temperature
35.6 F
Maximum Fluid Temperature
230 F
Horsepower
1/25
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.55 Amps
Dimensions
Connection Size
3/4 Inch
Product Height
5 1/4 Inches
Product Width
5 1/8 Inches
Product Depth
7 3/4 Inches
Product Weight
8 Pounds
Warranty Information
Features
Features
- Durable Bronze Construction
- The Grundfos UP15-18BUC7 is crafted from bronze, which gives the pump both extended lifespan and protection against corrosion.
- Whisper Quiet Operation
- The UP15-18BUC7 pump runs quiet even at high flow levels, ensuring the pump won't distract you from your work or disrupt your sleep.
- Resilient Wet-Rotor Fluid Movement
- The wet rotor design of the UP15-18BUC7 lends integrity to both the motor and the rotor itself, providing exceptional longevity to any hydronic system the pump is a part of.
Grundfos pumps offer the pinnacle of reliability and performance for a large variety of water circulation applications. From home hydronic circulation to large scale commercial water movement, Grundfos has a pump that will provide years of trouble-free service. The UP15-18BUC7 is a single speed circulator with an integrated flow check valve, limiting water flow to a single direction. Solid bronze construction guarantees years of reliable performance with minimal maintenance needs, while hardwire electrical connection design allows the pump to tap directly into your home's electrical supply.
Specifications
General Information
Product Line
UP15-18
Speed Settings
Single-Speed
Connection Type
Sweat
Mount Type
In-Line
Material
Bronze
Drive Type
Wet Rotor
UPC
05700391411656
Performance
Maximum Head
14.4 Feet
Maximum Flow Rate
14.5 GPM
Maximum Operating Pressure
145 PSI
Minimum Fluid Temperature
35.6 F
Maximum Fluid Temperature
230 F
Horsepower
1/25
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.55 Amps
Dimensions
Connection Size
3/4 Inch
Product Height
5 1/4 Inches
Product Width
5 1/8 Inches
Product Depth
7 3/4 Inches
Product Weight
8 Pounds
Warranty Information
Product Specs
+−
Specifications
General Information
Product Line
UP15-18
Speed Settings
Single-Speed
Connection Type
Sweat
Mount Type
In-Line
Material
Bronze
Drive Type
Wet Rotor
UPC
05700391411656
Performance
Maximum Head
14.4 Feet
Maximum Flow Rate
14.5 GPM
Maximum Operating Pressure
145 PSI
Minimum Fluid Temperature
35.6 F
Maximum Fluid Temperature
230 F
Horsepower
1/25
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.55 Amps
Dimensions
Connection Size
3/4 Inch
Product Height
5 1/4 Inches
Product Width
5 1/8 Inches
Product Depth
7 3/4 Inches
Product Weight
8 Pounds
Warranty Information
Product Q&A
(2)
+−
Search Product Q&A's
Answered by Chris, the eComfort Product Expert
+−
Can this pump work upside down? That is installed vertically but the flow goes from above to below?
Robert
from Illinois
December 31, 2015
Answer
The pump can be installed in any orientation as long as the motor shaft is located horizontally. It is also best practice to have the terminal box on one side of the pump with the conduit entry facing down. Details can be found in the installation manual on page 7.
+−
My pump froze. Is there more to changing out the pump than shutting both gate valves and undoing the 4 bolts?
Mike
from California
September 19, 2015
Answer
As long as there are isolation valves on either side of the pump, you should be okay. You might need new flanges if they are leaking. Please refer to the Grundfos UP Installation Manual for more details.
