Gree - 24k BTU Cooling + Heating - U-Match Concealed Duct Air Conditioning System - 16.0 SEER

Model:

UMAT24HP230V1AD-S

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Gree - 24k BTU Cooling + Heating - U-Match Concealed Duct Air Conditioning System - 16.0 SEER
Gree - 24k BTU Cooling + Heating - U-Match Concealed Duct Air Conditioning System - 16.0 SEER
Model: UMAT24HP230V1AD-S
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    For more than 20 years, Gree has been providing energy-efficient, dependable heating and air conditioning solutions for residential use. As the producer of one third of the world's HVAC products, Gree has established itself as a global leader and the U-Match UMAT24HP230V1AD-S mini split system is the perfect solution for residential applications where space is limited. The Gree UMAT24HP230V1AD-S has a high efficiency, 16 SEER rating. The compact ceiling cassette unit mounts easily in your ceiling, allowing you to install the unit at the center of your zone for ideal airflow coverage. This mini split system is slim, lightweight, and visually appealing, with low maintenance, cleanable filters that eliminate the need for frequent replacements.

    Product Features

    Inverter Technology
    The UMAT24HP230V1AO outdoor condenser includes Gree's G10 Inverter technology to improve comfort and efficiency. This built-in inverter drives the compressor and allows it to adjust output to the heating and cooling demands of the conditioned space, ensuring a more stable, consistent temperature and comfort level. This technology will also remove more moisture, reduce short-cycling, and improve the overal efficiency of your system.

    Low Ambient Cooling
    The Gree UMAT24HP230V1AD-S system contains the UMAT24HP230V1AO which allows it to operate when the outdoor temperature is as low as 0 degrees Fahrenheit.

    Advanced Filtration
    The UMAT24HP230V1AD-S has a cleanable air filter that helps save energy by keeping your indoor coils free of dirt, dust and lint.

    Quiet Operating Mode
    The UMAT24HP230V1AD-S operates quietly, barely noticeable with sounds no louder than a conversation. This unit's design adjusts airflow slightly to reduce fan noise in the unit, providing you with perfectly quiet comfort.

    Condensate Protection
    The Gree UMAT24HP230V1AD-S features an indoor unit with a built-in condensate drain pump allowing for the safe, effective removal of harmful expelled condensate.

    Power Failure Protection
    The Gree UMAT24HP230V1AD-S is prepared to handle power interruptions without issue. Your settings and selected parameters are stored in non-volitile memory so that, if a power outage does occur, your system will be restored as if nothing happened. The unit will automatically return to its most recent operating conditions.

    Product Includes
    • (1) Gree UMAT24HP230V1AO Heat Pump Mini Split Outdoor Condenser
    • (1) Gree UMAT24HP230V1AC Ceiling Cassette Heat Pump Mini Split Indoor Unit
    • (1) Gree UMAT24GRILLE Cassette Grille
    • (1) Gree Wireless Remote Controller
    Product Note

    This product requires the following accessories for installation:

    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
    • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
    • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
    • Adding these accessories to your order will provide a complete, ready-to-install mini split system.

California residents see
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Gree - 24k BTU - U-Match Outdoor Condenser - Single Zone Only (UMAT24HP230V1AO)
  • (1) Gree - 24k BTU - U-Match Concealed Duct Unit - For Single-Zone (UMAT24HP230V1AD)
UMAT24HP230V1AD-S
specs product image PID-56889
General Information
Type
Ducted
Product Line
U-Match
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones Learn More
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
24
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
3/8" x 5/8"
Performance
Cooling Capacity
24000 BTU
Heating Capacity
24000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16.0
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
10.7
HSPF Learn More
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
10.0
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
UMAT24HP230V1AO
General Information
Type
Condenser
Product Line
U Match
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
24000
Cooling Capacity
24000 BTU
Heating Capacity
27200 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
10.7
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
57 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
24 Amps
Recommended Breaker Size
40 Amps
Dimensions
Maximum Line Length
98 Feet
Gas Connection Size
5/8 Inch
Suction Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
16 19/24 Inches
Product Width
31 5/48 Inches
Product Depth
38 29/48 Inches
Product Weight
152 Pounds
Shipping Height
33 17/24 Inches
Shipping Width
42 29/48 Inches
Shipping Depth
19 5/24 Inches
Shipping Weight
163 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years

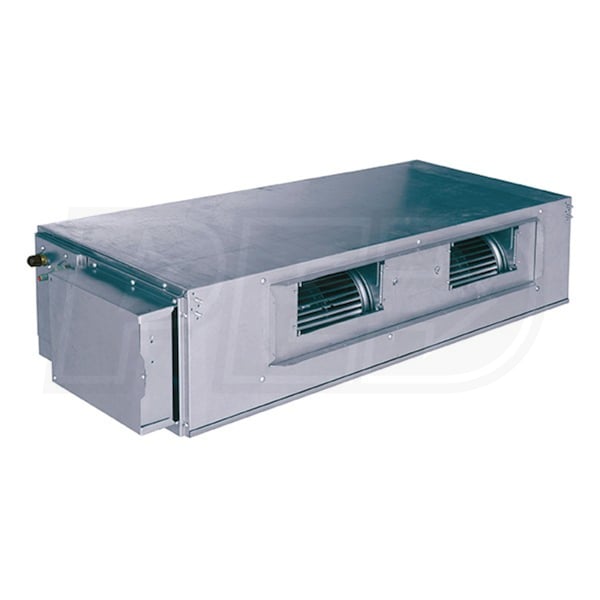

UMAT24HP230V1AD
General Information
Type
Air Handler
Product Line
U-Match
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A

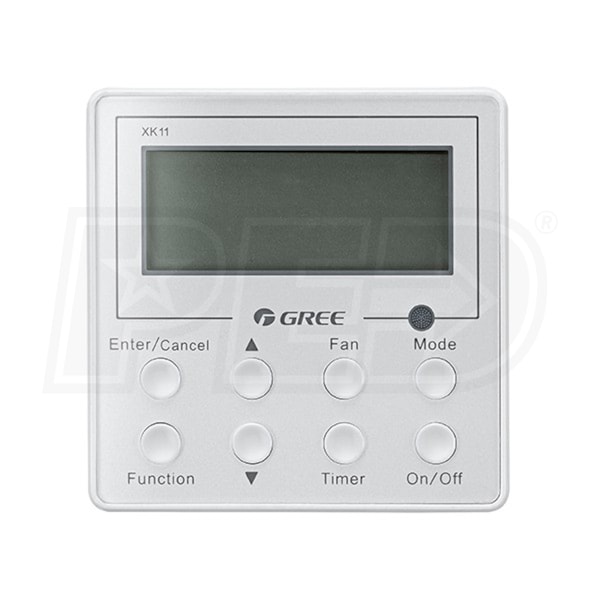

Remote Control
Wired
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
24
Installation Location
Indoor
Performance
Cooling BTU
24000
Cooling Capacity
24000 BTU
Heating Capacity
27200 BTU
Maximum Air Flow
820 CFM
Minimum Sound Level
40 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
47 dB
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
10 29/48 Inches
Product Width
22 Inches
Product Depth
50 19/48 Inches
Product Weight
75 Pounds
Shipping Width
53 5/48 Inches
Shipping Height
11 5/48 Inches
Shipping Depth
23 1/2 Inches
Shipping Weight
86 Pounds
Liquid Valve Connection Size
3/8 Inch
Suction Valve Connection Size
5/8 Inch
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
