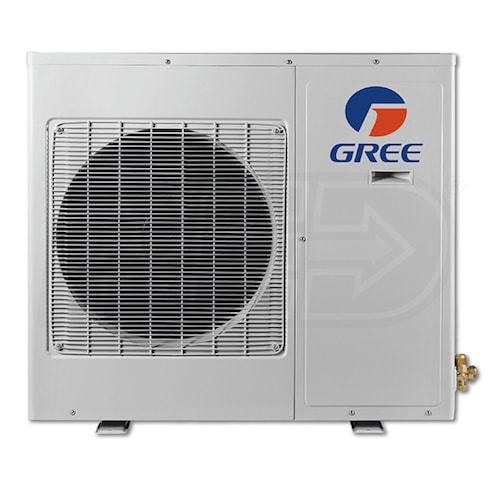

Gree - 24k BTU - Terra Outdoor Condenser - Single Zone Only

Model:

TERRA24HP230V1BO

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Gree - 24k BTU - Terra Outdoor Condenser - Single Zone Only
Gree - 24k BTU - Terra Outdoor Condenser - Single Zone Only
Model: TERRA24HP230V1BO
Product Discontinued
Accessories
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Specifications

    TERRA24HP230V1BO
    specs product image PID-50548
    General Information
    Type
    Outdoor Condenser
    Product Line
    Terra
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
    Heating and Cooling
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    UPC
    852036004435
    Performance
    Cooling BTU
    24000
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
    56 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    30 Amps
    Dimensions
    Maximum Line Length
    98 Feet
    Gas Connection Size
    5/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    31 5/48 Inches
    Product Width
    38 29/48 Inches
    Product Depth
    16 19/24 Inches
    Product Weight
    154 Pounds
    Shipping Width
    42 29/48 Inches
    Shipping Height
    33 17/24 Inches
    Shipping Depth
    19 5/24 Inches
    Shipping Weight
    164 Pounds
    Certifications
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Compressor Warranty
    7 Years
