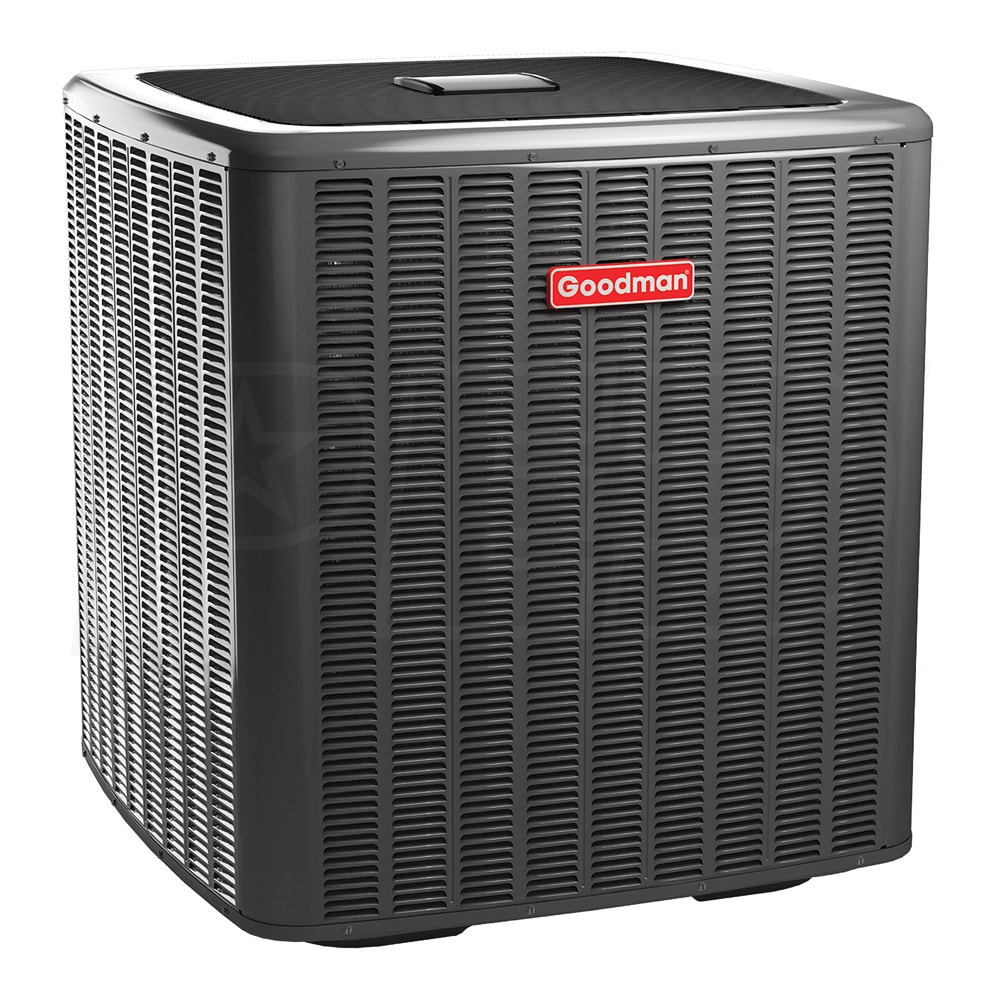

Goodman GVZC20 - 3 Ton - Heat Pump - 20 Nominal SEER - Inverter Compressor

Model:

GVZC200361

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Goodman GVZC20 - 3 Ton - Heat Pump - 20 Nominal SEER - Inverter Compressor
Goodman GVZC20 - 3 Ton - Heat Pump - 20 Nominal SEER - Inverter Compressor
Model: GVZC200361
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Goodman comfort system with inverter technology is designed to come on the moment you need it and automatically adjusts output to maintain the set temperature on your thermostat, so you feel consistent indoor comfort, These high-efficiency products offer performance of up to 24.5 SEER when properly matched with an indoor coil, air handler, or furnace.
  • Smart Speed Inverter Technology
  • Designed to automatically adjust the speed of the compressor and condensing fan motor based on cooling demand full, 100% capacity for extreme temperatures, and reduced capacity for milder days.
  • Ultra-Quiet
  • A compressor covered in a high-density sound blanket along with its ultra-quiet variable-speed motor, makes for an extremely quiet air conditioner.
  • Variable-Speed Compressor
  • Variable-speed compressor technology allows the unit to run at the speed that best meets your comfort needs coupled with energy-efficient operation.
  • Secure Cabinet
  • This condenser cabinet is built to last. Galvanized steel construction, a durable powder paint finish, and a steel coil guard protect your equipment from wear and tear, increasing its longevity.
  • Filter Drier
  • A filter drier is installed in the liquid line of this air conditioner. It serves two important purposes: removing moisture and trapping impurities.
  • Quiet Comfort
  • Goodman takes great pride in providing comfort that doesn't disrupt your home. The wire fan discharge grille and condenser fan motor were designed to reduce noise levels without compromising performance.
  • CoolCloud Compatible
  • Commissioning and diagnostics via indoor board Bluetooth with the CoolCloud using application.
  • ComfortBridge Compatible
  • This air conditioner is compatible with Goodman's ComfortBridge communicating controls. A ComfortBridge control streamlines the installation and maintenance processes by automatically detecting your equipment and providing diagnostics.
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
  • Product Note
    The recommended line set size for this unit will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

GVZC200361
specs product image PID-113420
Overview
Product Category
Heat Pump
General Information
Type
Heat Pump Condenser
Product Line
GVZC20
Product Category
Heat Pump
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Variable Speed
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Installation Available
Yes
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 Tons
Cooling BTU
36000
Cooling Capacity
35800 BTU
Heating Capacity
35400 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
20.0
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
74.2 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
29.8 Amps
Recommended Breaker Size
30 Amps
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
41 1/4 Inches
Product Width
35 1/2 Inches
Product Depth
35 1/2 Inches
Product Weight
291 Pounds
Shipping Weight
318 Pounds
Certifications
ETL Listed
Yes
Energy Star Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
Limited* 10 Years Years
Compressor Warranty
LIFETIME Years
