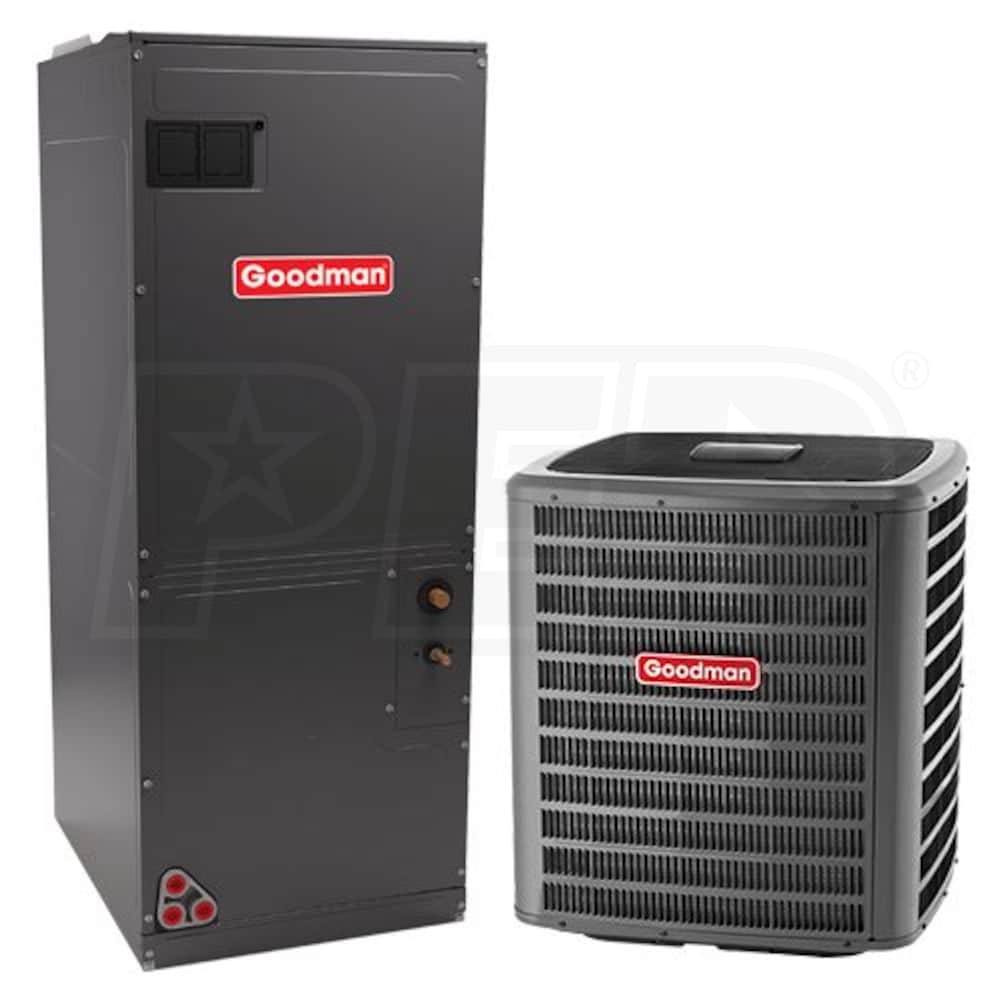

Goodman - 2.5 Ton Cooling - 29,400 BTU/Hr Heating - Heat Pump + Air Handler Kit - 16 SEER - 9 HSPF

Model:

GSZ160301 AVPTC37C14

Write a Review
Add to Cart for Best Price
Was $2,982.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Backordered
Estimated Availability July 30, 2021
Shipping to60601
$47 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Goodman - 2.5 Ton Cooling - 29,400 BTU/Hr Heating - Heat Pump + Air Handler Kit - 16 SEER - 9 HSPF
Goodman - 2.5 Ton Cooling - 29,400 BTU/Hr Heating - Heat Pump + Air Handler Kit - 16 SEER - 9 HSPF
Model: GSZ160301 AVPTC37C14
Add to Cart for Price
Was $2,982.00
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

    Goodman has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing building the most reliable and refreshingly affordable indoor comfort products in the market. The complete line of Goodman brand products are built on the principles of founder Harold Goodman, a former air conditioning contractor. Building Goodman products to Harold's standards, and protecting those products with some of the best limited warranties in the industry, has helped to make the Goodman brand widely recognized as a leading brand in the residential and light commercial heating, ventilation and air conditioning industry today.
    Product Includes
    • (1) Goodman GSZ16 - 2.5 Ton - Heat Pump - 16 Nominal SEER - Single-Stage - R-410A Refrigerant (GSZ160301)

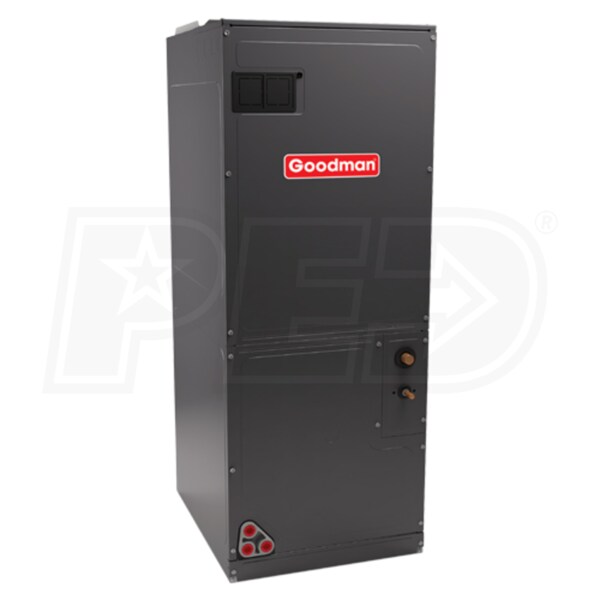

    • (1) Goodman AVPTC - 3.0 Ton - Air Handler - Multi-Position - Variable Speed ECM Blower (AVPTC37C14)
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Goodman GSZ16 - 2.5 Ton - Heat Pump - 16 Nominal SEER - Single-Stage - R-410A Refrigerant (GSZ160301)
  • (1) Goodman AVPTC - 3.0 Ton - Air Handler - Multi-Position - Variable Speed ECM Blower (AVPTC37C14)
GSZ160301 AVPTC37C14
General Information
Operating Mode Learn More
Heating and Cooling
Configuration Learn More
Multi-Position
DOE Regional Compliance Learn More
Nationwide
Installation Available
Yes
Performance
Capacity Learn More
2.5 Tons
Cooling Capacity
28800 BTU
Nominal Cooling Capacity
30000 BTU
Heating Capacity
29400 BTU
SEER Learn More
16.0
EER Learn More
13.0
HSPF Learn More
9.0
Maximum Air Flow
930 CFM
Dimensions
Product Weight
330 Pounds
Shipping Weight
350 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
8996203
GSZ160301
General Information
Type
Condenser
Product Line
GSZ16
Operating Mode Learn More
Heating and Cooling
Refrigerant Type
R-410a
Installation Location
Outdoor
Compressor Stages Learn More
Single
DOE Regional Compliance Learn More
Nationwide
Installation Available
Yes
Performance
Capacity Learn More
2.5 Tons
Cooling BTU
30000
Cooling Capacity
30000 BTU
SEER Learn More
16.0
Maximum Sound Level Learn More
75 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
18 Amps
Recommended Breaker Size
30 Amps
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
34 5/8 Inches
Product Width
35 1/2 Inches
Product Depth
35 1/2 Inches
Product Weight
186 Pounds
Shipping Weight
206 Pounds
Certifications
Energy Star Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Limited* 10 Years Years
AVPTC37C14
General Information
Type
Air Handler
Product Line
AVPTC
Refrigerant Type
R-410A
Blower Motor
Variable-Speed
Motor Type
ECM
Configuration Learn More
Multi-Position
Installation Location
Indoor
Installation Available
Yes
Performance
Capacity Learn More
3.5 Tons
Cooling BTU
36000
Maximum Air Flow
1275 CFM
Minimum Air Flow
845 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
7 Amps
Recommended Breaker Size
15 Amps
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
53 7/16 Inches
Product Width
21 Inches
Product Depth
21 Inches
Product Weight
109 Pounds
Shipping Weight
144 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty Learn More
5 Years
Parts Warranty Learn More
10 Limited Years
