Goodman - 2.0 Ton Cooling - 60k BTU/Hr Heating - Heat Pump + Furnace Kit - 15.0 SEER - 96% AFUE - Horizontal

Model:

GSZ1424GMES96060H

Write a Review
Add to Cart for Best Price
Was $3,260.00
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Factory-Direct
Ships in 4-6 Weeks
synchrony card logo
$52 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Goodman - 2.0 Ton Cooling - 60k BTU/Hr Heating - Heat Pump + Furnace Kit - 15.0 SEER - 96% AFUE - Horizontal
Goodman - 2.0 Ton Cooling - 60k BTU/Hr Heating - Heat Pump + Furnace Kit - 15.0 SEER - 96% AFUE - Horizontal
Model: GSZ1424GMES96060H
Add to Cart for Price
Was $3,260.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Chris, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    A Goodman heat pump and furnace package is the perfect way to upgrade your home's HVAC system. This kit contains a GSZ heat pump with an advanced coil design to maximize efficiency. The heat pump is paired with a single stage GMES96 furnace equipped with an ECM multi-speed motor. This pair was specifically chosen to provide high efficiency comfort, year round. A cased coil and valve kit are included, making this kit an affordable, efficient, whole home solution.
  • Advanced Coil Design
  • The condenser coil of this heat pump is designed with aluminum fins and rifled copper tubing to maximize efficiency. The fins and rifling serve to increase surface area, allowing the heat transfer capabilities of the materials to shine.
  • SmartShift
  • Goodman's SmartShift technology, combined with ambient and coil temperature sensors, gives this unit a quiet and effective defrost system. SmartShift also helps to prevent short-cycling, increasing the efficiency of defrost operations.
  • High-Efficiency Compressor
  • This unit utilizes a high-efficiency scroll compressor to provide refrigerant flow. Scroll compressors are renowned for operating more smoothly and reliably than traditional compressors.
  • All-Aluminum Coil
  • Goodman's evaporator coils use a reliable all-aluminum design featuring sine fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
  • Condensate Management
  • The included coil features foil-faced insulation to inhibit the formation of condensate and a rust-resistant thermoplastic drain pan to capture what does form, keeping your system safe and operational.
  • Advanced Heat Exchanger Design
  • The GMES96 furnace employs a reliable heavy-duty tubular heat exchanger design. Aluminized steel is used in construction for incredibly efficient heat transfer and wrinkle-bend technology for extraordinary durability.
  • Multi-Speed ECM Motor
  • The GMES96 energy efficient blower motor uses the lowest speed it can to deliver precise temperature control for your home while keeping utility bills to a minimum.
  • Quiet Comfort
  • Goodman takes great pride in producing equipment that doesn't disrupt your home. The blower and gas valve of the GMES96 were selected for their incredibly low sound levels.
  • Self-Diagnostic Control Board
  • The GMES96 continuously monitors the system to ensure reliable operation, stores the last diagnostic codes in memory, and a flashing LED indicates condition for quick troubleshooting.
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.

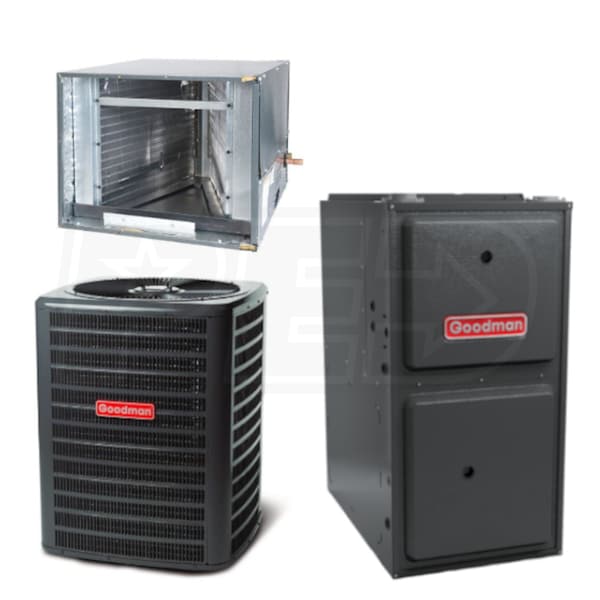

  • Product Includes
    • (1) Goodman GSZ14 - 2 Ton - Heat Pump - 14 Nominal SEER - Single-Stage - R-410A Refrigerant (GSZ140241)
    • (1) Goodman GMES96 - 60k BTU - Gas Furnace - 96% AFUE (GMES960603BN)
    • (1) Goodman CHPF - 3 Ton - Horizontal A Coil - Cased - 17.5" Width Cabinet (CHPF3636B6)
    Product Note
    The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab. | The US Department of Energy regulates minimum efficiency standards for central air conditioners and heat pumps based on geographic regions. We are required to abide by these regulations when selling products, and take this responsibility seriously. The standards depend on the rated efficiency of the entire system, not the nominal efficiencies of individual components. If you are unsure if your system will be compliant, please call or email us for help.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Goodman GSZ14 - 2 Ton - Heat Pump - 14 Nominal SEER - Single-Stage - R-410A Refrigerant (GSZ140241)
  • (1) Goodman GMES96 - 60k BTU - Gas Furnace - 96% AFUE (GMES960603BN)
  • (1) Goodman CHPF - 3 Ton - Horizontal A Coil - Cased - 17.5" Width Cabinet (CHPF3636B6)
GSZ1424GMES96060H
specs product image PID-102001
General Information
Operating Mode Learn More
Heating and Cooling
Modulating/Staging Learn More
Single Stage
Blower Motor
ECM Multi-Speed
Coil Width
17.5 Inches
Configuration Learn More
Horizontal
DOE Regional Compliance Learn More
Nationwide (Except CA, TX and UT)
Installation Available
Yes
Performance
AFUE Learn More
96 %
Capacity Learn More
2.0 Tons
Cooling Capacity
22400 BTU
Nominal Cooling Capacity
24000 BTU
Heating BTU
60000
SEER Learn More
15.0
EER Learn More
12.0
HSPF Learn More
8.0
Maximum Air Flow
740 CFM
Dimensions
Product Weight
303 Pounds
Shipping Weight
317 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
203490725
GSZ140241
General Information
Type
Condenser
Product Line
GSZ14
Operating Mode Learn More
Heating and Cooling
Refrigerant Type
R-410a
Installation Location
Outdoor
Compressor Stages Learn More
Single
DOE Regional Compliance Learn More
Nationwide
Installation Available
Yes
Performance
Capacity Learn More
2.0 Tons
Cooling BTU
24000
Cooling Capacity
24000 BTU
SEER Learn More
14.0
Maximum Sound Level Learn More
72 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
15 Amps
Recommended Breaker Size
25 Amps
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
34 1/2 Inches
Product Width
29 Inches
Product Depth
29 Inches
Product Weight
142 Pounds
Shipping Weight
156 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Limited* 10 Years Years
GMES960603BN
General Information
Type
Gas Furnace
Product Line
GMES96
Fuel Type Learn More
Natural Gas
Vent Type Learn More
Direct Vent
Modulating/Staging Learn More
Single Stage
Blower Motor
ECM Multi-Speed
Configuration Learn More
Upflow/Horizontal
Gas Conversion Kit
Available
Installation Available
Yes
Performance
AFUE Learn More
96 %
Heating BTU
60000
High Fire Input
60000 BTU
High Fire Output
57660 BTU
Maximum Air Flow
1200 CFM
Ultra Low NOx Emissions Learn More
No
Low NOx Emissions Learn More
Yes
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
9.6 Amps
Recommended Breaker Size
15 Amps
Dimensions
Flue Connection Size
2 or 3 Inches
Cabinet Width
17 1/2 Inches
Product Height
34 1/2 Inches
Product Width
17 1/2 Inches
Product Depth
29 Inches
Product Weight
111 Pounds
Shipping Weight
111 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
203400980
Warranty Information
Parts Warranty Learn More
10 Years
Heat Exchanger Warranty
Lifetime Years
CHPF3636B6
General Information
Type
Evaporator Coil
Product Line
CHPF
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration Learn More
Horizontal
Installation Available
Yes
Performance
Capacity Learn More
3.0 Tons
Cooling BTU
36000
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
17 1/2 Inches
Product Height
17 1/2 Inches
Product Width
26 Inches
Product Depth
21 1/8 Inches
Product Weight
50 Pounds
Shipping Weight
60 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty Learn More
5 Years
