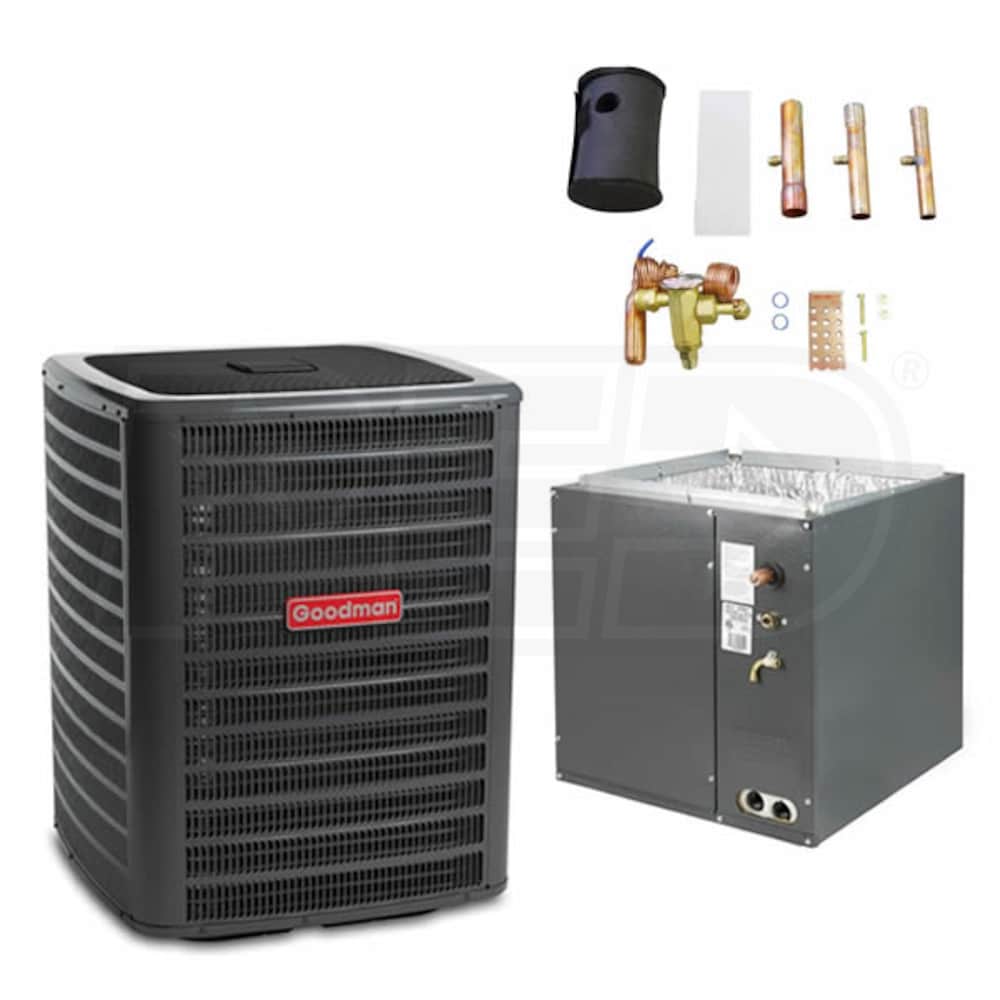

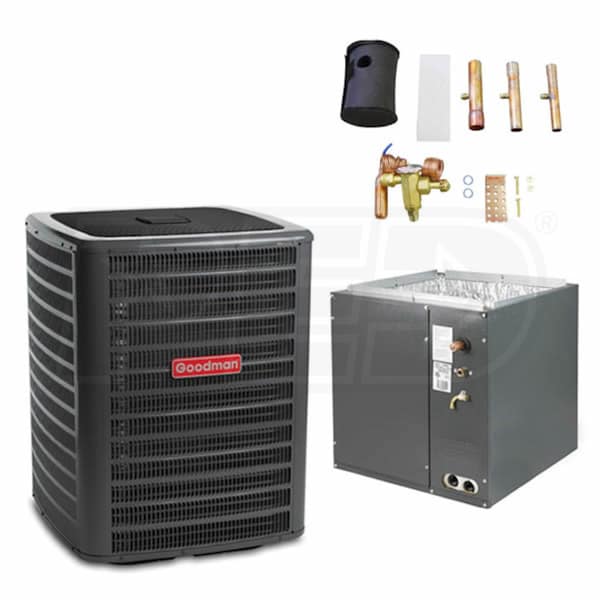

Goodman - 4 Ton Air Conditioner + Coil Kit - 16 SEER - 24.5" Coil Width - For Upflow/Downflow Installation

Goodman - 4 Ton Air Conditioner + Coil Kit - 16 SEER - 24.5" Coil Width - For Upflow/Downflow Installation
Model: GSXC1648CAPF4961D6-V
$2,677.00
Ships in 7-14 Business Days
Free Shipping
Free Lift Gate Service -
Cooling Capacity (BTU/Hr)
Coil Width (Inches)
Orientation Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Add-Ons

Ships in 7-14 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 2
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    The Goodman GSXC1648CAPF4961D6-V kit includes an outdoor condenser and evaporator coil to complete your home's central air system. The powerful GSXC16 air conditioner features an advanced condenser coil design that provides efficient cooling with a nominal SEER rating of 16. The CAPF4961D6 evaporator coil fits directly onto your existing 24.5" furnace or air handler cabinet, allowing conditioned air to be circulated into your home. The GSXC16's galvanized steel construction paired with the all-aluminum evaporator coil design ensures your cooling system stays effective and efficient for years to come.
  • Ultra Quiet
  • A compressor covered in a high-density sound blanket with the addition of a two-speed ultra-quiet ECM motor, makes for an extremely quiet air conditioner.
  • UltraTech™ Compressor
  • A two-stage Copeland® UltraTech™ scroll compressor provides the GSXC16 with incredibly reliable refrigerant flow. The two stage compressor increases efficiency by allowing the compressor to operate at a lower capacity when your demand is low.
  • Filter Drier
  • A filter drier is installed in the liquid line of the air conditioner to remove moisture and trap impurities. This prevents corrosion, freezing, and blockages that can negatively impact the operation of the air conditioner.
  • Secure Cabinet
  • The cabinet of the GSXC16 is built to last. Galvanized steel construction, a durable powder paint finish, and a steel coil guard protect your equipment from wear and tear, increasing its longevity.
  • All-Aluminum Coil
  • Goodman's evaporator coils use a reliable all-aluminum design featuring sine fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
  • Durable Evaporator Coil
  • A galvanized, embossed, and insulated cabinet protects the evaporator coil and prevents air leakage, providing superior efficiency over years of use.
  • ComfortAlert™
  • The included ComfortAlert™ compressor diagnostics module reduces the average time of maintenance calls and virtually eliminates misdiagnoses by experienced technicians, saving you money throughout the life of the air conditioner.
  • ComfortNet™ Compatible
  • The GSXC16 is compatible with Goodman's ComfortNet™ communicating controls. ComfortNet™ control streamlines the installation and maintenance processes by automatically detecting your equipment and providing diagnostics.
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
  • Product Includes
    • (1) Goodman GSXC16 - 4.0 Ton - Air Conditioner - 16 Nominal SEER - Two-Stage - R-410a Refrigerant (GSXC160481)
    • (1) Goodman CAPF - 4-5 Ton - Upflow/Downflow A Coil - Cased - 24.5" Width (CAPF4961D6)
    • (1) Goodman TXV Kit - 3.5-5 Ton - R-410A (TX5N4)
    Product Note
    The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab.
Specifications
General Information
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Refrigerant Type
R-410A
Coil Width
24.5 Inches
Orientation Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Downflow
Compressor Stages Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Two
DOE Regional Compliance In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Cooling Capacity
48000 BTU
Tonnage Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
4.0 Tons
Nominal Cooling Capacity
48000 BTU
SEER SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16
Dimensions
Shipping Weight
361 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
10491559
GSXC160481 Specifications
General Information
Type
Outdoor Condenser
Product Line
GSXC16
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Two
DOE Regional Compliance In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Tonnage Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
4.0 Tons
Nominal Cooling Capacity
48000 BTU
Maximum Sound Level Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
72 dB
Nominal SEER SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Actual SEER may differ from Nominal SEER depending on the products used in a particular system.
16.0
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
26.7 Amps
Recommended Breaker Size
45 Amps
Dimensions
Product Height
37 Inches
Product Width
35.75 Inches
Product Depth
35.75 Inches
Product Weight
263 Pounds
Shipping Weight
285 Pounds
Liquid Valve Connection Size
0.375 Inches
Suction Valve Connection Size
1.125 Inches
Certifications
Country of Origin
United States
Energy Star Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
5 Years
CAPF4961D6 Specifications
General Information
Type
Evaporator Coil
Product Line
CAPF
Refrigerant Type
R-22 or R-410a
Casing
Cased
Shape
A Coil
Orientation Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Downflow
Performance
Tonnage Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
4.0 - 5.0 Tons
Nominal Minimum Cooling Capacity
48000 BTU
Nominal Cooling Capacity
60000 BTU
Dimensions
Liquid Connection Size
0.375 Inches
Suction Connection Size
0.875 Inches
Product Height
30 Inches
Product Width
24.5 Inches
Product Depth
21 Inches
Shipping Weight
76 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
TX5N4 Specifications
General Information
Refrigerant Type
R-410A
Dimensions
Shipping Weight
2 Pounds
Features
Features
    The Goodman GSXC1648CAPF4961D6-V kit includes an outdoor condenser and evaporator coil to complete your home's central air system. The powerful GSXC16 air conditioner features an advanced condenser coil design that provides efficient cooling with a nominal SEER rating of 16. The CAPF4961D6 evaporator coil fits directly onto your existing 24.5" furnace or air handler cabinet, allowing conditioned air to be circulated into your home. The GSXC16's galvanized steel construction paired with the all-aluminum evaporator coil design ensures your cooling system stays effective and efficient for years to come.
  • Ultra Quiet
  • A compressor covered in a high-density sound blanket with the addition of a two-speed ultra-quiet ECM motor, makes for an extremely quiet air conditioner.
  • UltraTech™ Compressor
  • A two-stage Copeland® UltraTech™ scroll compressor provides the GSXC16 with incredibly reliable refrigerant flow. The two stage compressor increases efficiency by allowing the compressor to operate at a lower capacity when your demand is low.
  • Filter Drier
  • A filter drier is installed in the liquid line of the air conditioner to remove moisture and trap impurities. This prevents corrosion, freezing, and blockages that can negatively impact the operation of the air conditioner.
  • Secure Cabinet
  • The cabinet of the GSXC16 is built to last. Galvanized steel construction, a durable powder paint finish, and a steel coil guard protect your equipment from wear and tear, increasing its longevity.
  • All-Aluminum Coil
  • Goodman's evaporator coils use a reliable all-aluminum design featuring sine fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
  • Durable Evaporator Coil
  • A galvanized, embossed, and insulated cabinet protects the evaporator coil and prevents air leakage, providing superior efficiency over years of use.
  • ComfortAlert™
  • The included ComfortAlert™ compressor diagnostics module reduces the average time of maintenance calls and virtually eliminates misdiagnoses by experienced technicians, saving you money throughout the life of the air conditioner.
  • ComfortNet™ Compatible
  • The GSXC16 is compatible with Goodman's ComfortNet™ communicating controls. ComfortNet™ control streamlines the installation and maintenance processes by automatically detecting your equipment and providing diagnostics.
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
  • Product Includes
    • (1) Goodman GSXC16 - 4.0 Ton - Air Conditioner - 16 Nominal SEER - Two-Stage - R-410a Refrigerant (GSXC160481)
    • (1) Goodman CAPF - 4-5 Ton - Upflow/Downflow A Coil - Cased - 24.5" Width (CAPF4961D6)
    • (1) Goodman TXV Kit - 3.5-5 Ton - R-410A (TX5N4)
    Product Note
    The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab.
Specifications
General Information
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Refrigerant Type
R-410A
Coil Width
24.5 Inches
Orientation Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Downflow
Compressor Stages Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Two
DOE Regional Compliance In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Cooling Capacity
48000 BTU
Tonnage Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
4.0 Tons
Nominal Cooling Capacity
48000 BTU
SEER SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16
Dimensions
Shipping Weight
361 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
10491559
GSXC160481 Specifications
General Information
Type
Outdoor Condenser
Product Line
GSXC16
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Two
DOE Regional Compliance In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Tonnage Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
4.0 Tons
Nominal Cooling Capacity
48000 BTU
Maximum Sound Level Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
72 dB
Nominal SEER SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Actual SEER may differ from Nominal SEER depending on the products used in a particular system.
16.0
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
26.7 Amps
Recommended Breaker Size
45 Amps
Dimensions
Product Height
37 Inches
Product Width
35.75 Inches
Product Depth
35.75 Inches
Product Weight
263 Pounds
Shipping Weight
285 Pounds
Liquid Valve Connection Size
0.375 Inches
Suction Valve Connection Size
1.125 Inches
Certifications
Country of Origin
United States
Energy Star Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
5 Years
CAPF4961D6 Specifications
General Information
Type
Evaporator Coil
Product Line
CAPF
Refrigerant Type
R-22 or R-410a
Casing
Cased
Shape
A Coil
Orientation Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Downflow
Performance
Tonnage Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
4.0 - 5.0 Tons
Nominal Minimum Cooling Capacity
48000 BTU
Nominal Cooling Capacity
60000 BTU
Dimensions
Liquid Connection Size
0.375 Inches
Suction Connection Size
0.875 Inches
Product Height
30 Inches
Product Width
24.5 Inches
Product Depth
21 Inches
Shipping Weight
76 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
TX5N4 Specifications
General Information
Refrigerant Type
R-410A
Dimensions
Shipping Weight
2 Pounds
Product Specs
+
Specifications
General Information
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Refrigerant Type
R-410A
Coil Width
24.5 Inches
Orientation Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Downflow
Compressor Stages Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Two
DOE Regional Compliance In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Cooling Capacity
48000 BTU
Tonnage Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
4.0 Tons
Nominal Cooling Capacity
48000 BTU
SEER SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16
Dimensions
Shipping Weight
361 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
10491559
GSXC160481 Specifications
General Information
Type
Outdoor Condenser
Product Line
GSXC16
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Two
DOE Regional Compliance In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Tonnage Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
4.0 Tons
Nominal Cooling Capacity
48000 BTU
Maximum Sound Level Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
72 dB
Nominal SEER SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Actual SEER may differ from Nominal SEER depending on the products used in a particular system.
16.0
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
26.7 Amps
Recommended Breaker Size
45 Amps
Dimensions
Product Height
37 Inches
Product Width
35.75 Inches
Product Depth
35.75 Inches
Product Weight
263 Pounds
Shipping Weight
285 Pounds
Liquid Valve Connection Size
0.375 Inches
Suction Valve Connection Size
1.125 Inches
Certifications
Country of Origin
United States
Energy Star Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
5 Years
CAPF4961D6 Specifications
General Information
Type
Evaporator Coil
Product Line
CAPF
Refrigerant Type
R-22 or R-410a
Casing
Cased
Shape
A Coil
Orientation Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Downflow
Performance
Tonnage Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
4.0 - 5.0 Tons
Nominal Minimum Cooling Capacity
48000 BTU
Nominal Cooling Capacity
60000 BTU
Dimensions
Liquid Connection Size
0.375 Inches
Suction Connection Size
0.875 Inches
Product Height
30 Inches
Product Width
24.5 Inches
Product Depth
21 Inches
Shipping Weight
76 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
TX5N4 Specifications
General Information
Refrigerant Type
R-410A
Dimensions
Shipping Weight
2 Pounds
Reviews
(2)
+
Goodman GSXC1648CAPF4961D6-V Reviews & Ratings
Product Q&A
+
Be the first to ask a question.
Recommended Accessories
+
Expert Recommended Accessories Hand Picked By Our Expert Chris
icon-social-fb1
Required Accessories Add All Required
Optional Accessories
How-To Articles
+
Manuals
+


×
Goodman - 4 Ton Air Conditioner + Coil Kit - 16 SEER - 24.5" Coil Width - For Upflow/Downflow Installation
Goodman GSXC1648CAPF4961D6-V
+
Reset View
Goodman GSXC1648CAPF4961D6-V
Goodman GSXC1648CAPF4961D6-V
Goodman GSXC1648CAPF4961D6-V
Goodman GSXC1648CAPF4961D6-V
Goodman GSXC1648CAPF4961D6-V
Goodman GSXC1648CAPF4961D6-V
Goodman GSXC1648CAPF4961D6-V
×
Customer Review Images

Visit eComfort on Facebook
View the eComfort Twitter Profile Page
Follow eComfort on Pinterest
View eComfort YouTube Channel
View eComfort LinkedIn Company Profile
