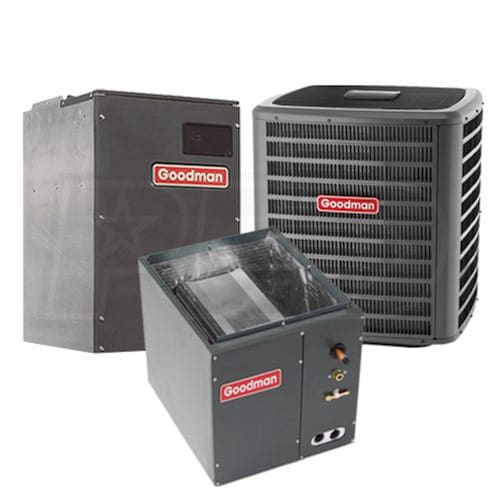

Goodman - 2.0 Ton Cooling - Air Conditioner + Variable Speed Air Handler System - 16.0 SEER
Model:
GSXC160241 MBVC1200AA-1 CAPFA2418B6 TXV
+
Share This Product
Features
- The manufacturer model number(s): Goodman GSXC160241 MBVC1200AA-1 CAPF3636B6 TX2N4
- AHRI Reference Number: 10332372 * *May change based on the Manufacturer revision

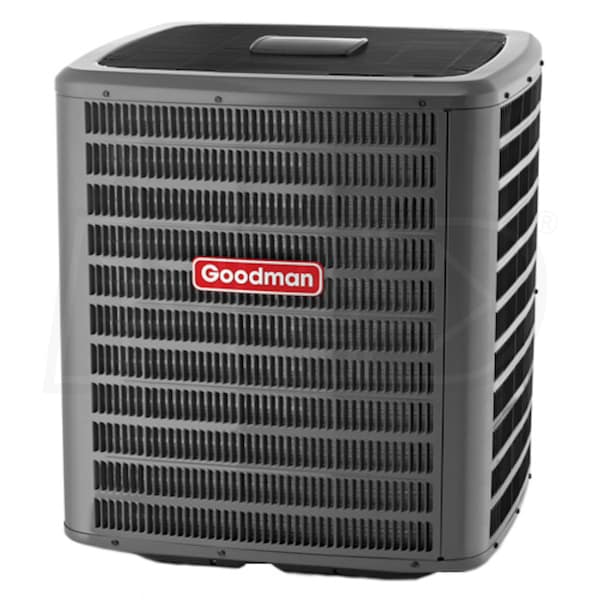

- (1) Goodman GSXC16 - 2.0 Ton - Air Conditioner - 16 Nominal SEER - Two-Stage - R-410a Refrigerant (GSXC160241)
- (1) Goodman MBVC - 1200 CFM - Modular Blower - Variable Speed - 208-230/60/1 - ECM Motor (MBVC1200AA-1)
- (1) Goodman CAPF - 2 Ton - Upflow/Downflow A Coil - Cased - 17.5" Width (CAPFA2418B6)

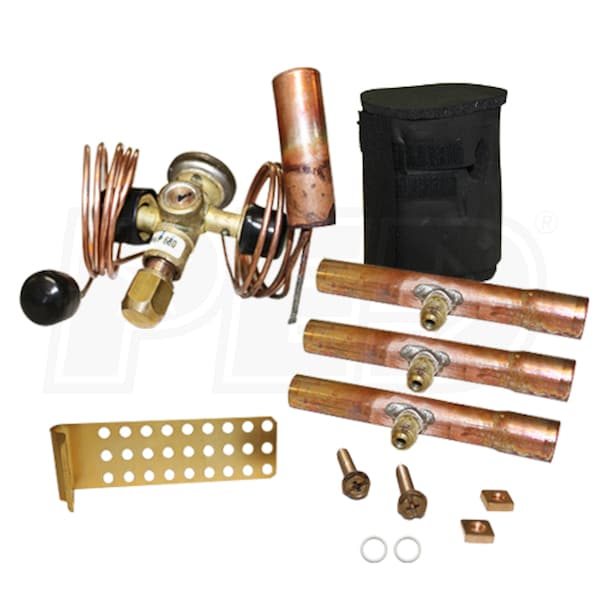

- (1) Goodman TXV Kit - 1.5-2 Ton - R-410A (TX2N4A)
A Goodman central air and furnace kit is the perfect way to update your home's HVAC system. This kit contains a GSXC16 air conditioner, a MBVC12 modular blower, and a cased CAPFA evaporator coil making it the ideal solution for most parts of the country. It's the perfect kit for areas that use an average amount of cooling but want a multi-speed furnace for the long cold winters. Each of these components is designed with a focus on ease-of-installation and durability to provide you with upfront and long-term value. If you're looking for a complete comfort solution backed by superior craftsmanship, the Goodman GSXC160241 MBVC1200AA-1 CAPFA2418B6 TXV air conditioner and furnace kit fits the bill perfectly.
Product Includes
Product Note
NOTE: Due to DOE regulations, as of January 1st this unit can no longer be installed in the southwest and southeast DOE regions.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) Goodman GSXC16 - 2.0 Ton - Air Conditioner - 16 Nominal SEER - Two-Stage - R-410a Refrigerant (GSXC160241)
- (1) Goodman MBVC - 1200 CFM - Modular Blower - Variable Speed - 208-230/60/1 - ECM Motor (MBVC1200AA-1)
- (1) Goodman CAPF - 2 Ton - Upflow/Downflow A Coil - Cased - 17.5" Width (CAPFA2418B6)
- (1) Goodman TXV Kit - 1.5-2 Ton - R-410A (TX2N4A)
GSXC160241 MBVC1200AA-1 CAPFA2418B6 TXV
Overview
Product Category
Air Conditioner & Air Handler Package
General Information
Product Category
Air Conditioner & Air Handler Package
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Blower Motor Type
ECM Variable-Speed
Coil Width
17.5 Inches
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Downflow
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
North
Installation Available
Yes
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 Tons
Cooling Capacity
23000 BTU
Nominal Cooling Capacity
36000 BTU
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16.0
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
13.0
Maximum Air Flow
1220 CFM
Dimensions
Product Weight
361 Pounds
Shipping Weight
383 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
205228255
GSXC160241
General Information
Type
Condenser
Product Line
GSXC16
Product Category
Air Conditioning Condensers
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Refrigerant Type
R-410a
Installation Location
Outdoor
Compressor Stages
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Two Stage
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
North
Installation Available
Yes
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 Tons
Cooling BTU
24000
Cooling Capacity
24000 BTU
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16.0
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
71 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
14 Amps
Recommended Breaker Size
20 Amps
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
32 1/2 Inches
Product Width
29 1/4 Inches
Product Depth
29 1/4 Inches
Product Weight
180 Pounds
Shipping Weight
197 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
Limited* 10 Years
Compressor Warranty
LIFETIME Years
Overview
Product Category
Air Conditioning Condensers
MBVC1200AA-1
General Information
Type
Air Handler
Product Line
MBVC
Product Category
Air Handler
Blower Motor Type
Variable Speed
Motor Type
ECM
Mount Type
Multi-Position
Installation Location
Indoor
Electric Heat
Available
Installation Available
Yes
TXV Installed
No
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 Tons
Maximum Air Flow
1200 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
4.3 Amps
Recommended Breaker Size
15 Amps
Dimensions
Cabinet Width
17 1/2 Inches
Product Height
26 Inches
Product Width
17 1/2 Inches
Product Depth
21 Inches
Product Weight
67 Pounds
Shipping Weight
77 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
Limited* 10 Years
Overview
Product Category
Forced Air Blower
CAPFA2418B6
General Information
Type
Evaporator Coil
Product Line
CAPF
Product Category
Evaporator Coil
Refrigerant Type
R-22/R-410A
Casing
Cased
Style
A Coil
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Downflow
Installation Available
Yes
TXV Installed
No
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 Tons
Cooling BTU
24000
Nominal Minimum Cooling Capacity
24000 BTU
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
17 1/2 Inches
Product Height
18 Inches
Product Width
17 1/2 Inches
Product Depth
21 Inches
Product Weight
28 Pounds
Shipping Weight
38 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
Overview
Product Category
Evaporator Coil
TX2N4A
General Information
Type
TXV Kit
Product Line
TX
Product Category
Forced Air Accessories
Refrigerant Type
R-410A
Dimensions
Product Weight
1 Pound
Shipping Weight
2 Pounds
Overview
Product Category
Forced Air Accessories
