Goodman - 2.5 Ton Cooling - 100k BTU/Hr Heating - Air Conditioner + 2-Stage Furnace Kit - 16.0 SEER - 96% AFUE - For Upflow Installation

Model:

GSX1630GMEC96100U

Write a Review
Add to Cart for Best Price
Was $3,812.00
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Factory-Direct
Ships in 4-6 Weeks
synchrony card logo
$61 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Goodman - 2.5 Ton Cooling - 100k BTU/Hr Heating - Air Conditioner + 2-Stage Furnace Kit - 16.0 SEER - 96% AFUE - For Upflow Installation
Goodman - 2.5 Ton Cooling - 100k BTU/Hr Heating - Air Conditioner + 2-Stage Furnace Kit - 16.0 SEER - 96% AFUE - For Upflow Installation
Model: GSX1630GMEC96100U
Add to Cart for Price
Was $3,812.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Chris, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    A Goodman central air and furnace kit is the perfect way to update your home's HVAC system. This kit contains a GSX16 air conditioner, a GMEC96 furnace, and a cased evaporator coil providing you with efficient heating and cooling for any climate. The GSX16 provides you with an impressive SEER rating of 16 and the GMEC96 provides you with efficient two-stage heating for those long cold winters. Each of these components is designed with a focus on ease-of-installation and durability to provide you with upfront and long-term value. If you're looking for a complete comfort solution backed by superior craftsmanship, the Goodman GSX1630GMEC96100U air conditioner and furnace kit fits the bill perfectly.
  • Energy Efficient ECM Motor
  • PSC blower motors are energy hogs. The ECM motor in the GMEC96 provides more efficient, more intelligent airflow for your home.
  • Advanced Coil Design
  • The condenser coil of this air conditioner is designed with aluminum fins and rifled copper tubing to maximize efficiency. The fins and rifling serve to increase surface area, allowing the heat transfer capabilities of the materials to shine.
  • Filter Drier
  • A filter drier is installed in the liquid line of this air conditioner. It serves two important purposes: removing moisture and trapping impurities. This prevents corrosion, freezing, and blockages that can negatively impact the operation.
  • Advanced Heat Exchanger Design
  • The GMEC96 furnace employs a reliable dual-diameter tubular heat exchanger design. Aluminized steel is used in construction for incredibly efficient heat transfer, and a wrinkle-bend is applied to the tubes to enhance the heat exchanger's dependability.
  • High-Efficiency Compressor
  • This unit utilizes a high-efficiency scroll compressor to provide refrigerant flow. Scroll compressors are renowned for operating more smoothly and reliably than traditional compressors.
  • Secondary Heat Exchanger
  • This furnace produces additional heat without using more fuel by directing combustion gases through a secondary heat exchanger before they are vented.
  • All-Aluminum Coil
  • Goodman's evaporator coils use a reliable all-aluminum design featuring sine fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.

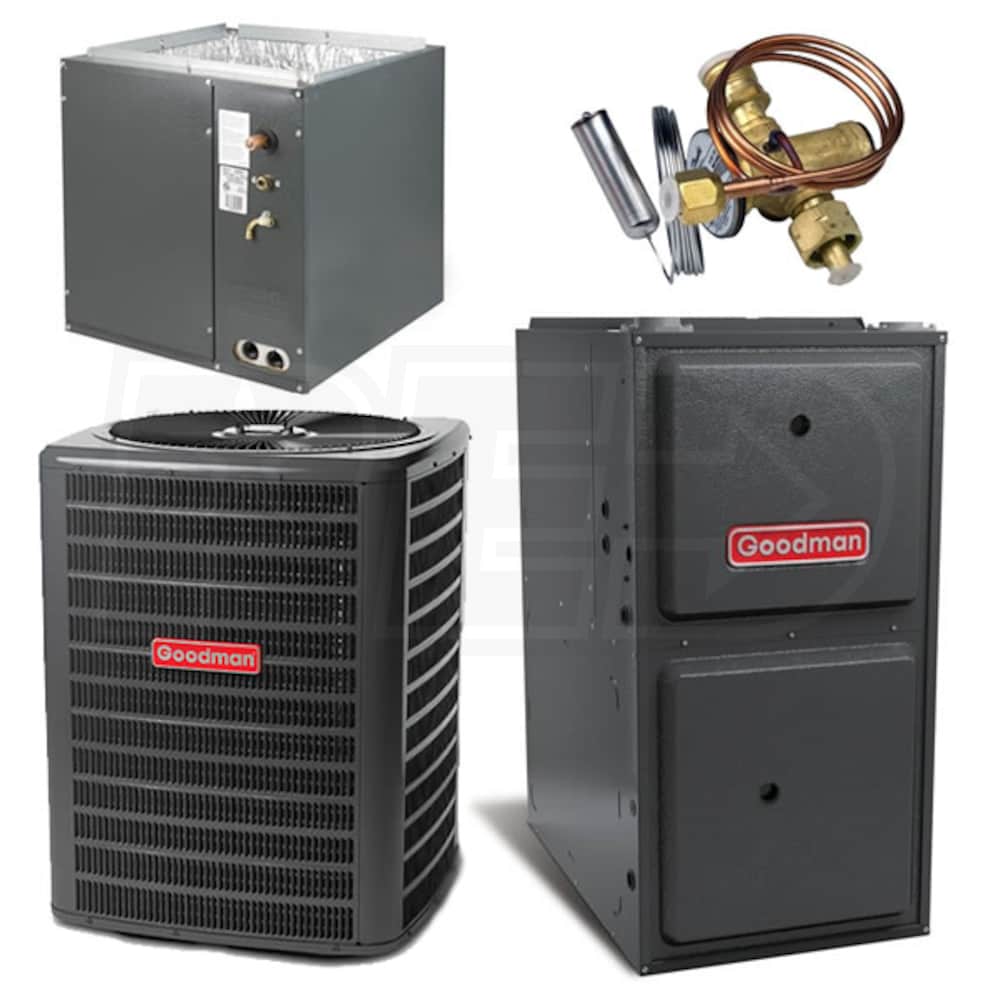

  • Product Includes
    • (1) Goodman GMEC96 - 100k BTU - Two-Stage Gas Furnace - 96% AFUE (GMEC961004CN)
    • (1) Goodman GSX16 - 2.5 Ton - Air Conditioner - 16 Nominal SEER - Single-Stage - R-410a Refrigerant (GSX160301)
    • (1) Goodman CAPF - 3-3.5 Ton - Upflow/Downflow A Coil - Cased - 21" Width (CAPF3743C6)
    • (1) Goodman TXV Kit - 1.5-2.5 Ton - R-410A (TXV-30)
    Product Note
    The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Goodman GMEC96 - 100k BTU - Two-Stage Gas Furnace - 96% AFUE (GMEC961004CN)
  • (1) Goodman GSX16 - 2.5 Ton - Air Conditioner - 16 Nominal SEER - Single-Stage - R-410a Refrigerant (GSX160301)
  • (1) Goodman CAPF - 3-3.5 Ton - Upflow/Downflow A Coil - Cased - 21" Width (CAPF3743C6)
  • (1) Goodman TXV Kit - 1.5-2.5 Ton - R-410A (TXV-30)
GSX1630GMEC96100U
specs product image PID-75890
General Information
Operating Mode Learn More
Heating and Cooling
Modulating/Staging Learn More
Two Stage
Blower Motor
ECM Multi-Speed
Coil Width
21 Inches
Configuration Learn More
Upflow
DOE Regional Compliance Learn More
Nationwide (Except CA, TX and UT)
Installation Available
Yes
Performance
AFUE Learn More
96 %
Capacity Learn More
2.5 Tons
Cooling Capacity
28600 BTU
Nominal Cooling Capacity
30000 BTU
Heating BTU
100000
SEER Learn More
16.0
EER Learn More
13.0
Maximum Air Flow
1000 CFM
Dimensions
Product Weight
354 Pounds
Shipping Weight
372 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
7365818
GMEC961004CN
General Information
Type
Gas Furnace
Product Line
GMEC96
Fuel Type Learn More
Natural Gas
Vent Type Learn More
Direct Vent
Modulating/Staging Learn More
Two Stage
Blower Motor
ECM Multi-Speed
Configuration Learn More
Upflow/Horizontal
Gas Conversion Kit
Available
Installation Available
Yes
Performance
AFUE Learn More
96 %
Heating BTU
100000
High Fire Input
100000 BTU
High Fire Output
96000 BTU
Low Fire Input
70000 BTU
Low Fire Output
67200 BTU
Maximum Air Flow
1600 CFM
Ultra Low NOx Emissions Learn More
No
Low NOx Emissions Learn More
Yes
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
13.3 Amps
Recommended Breaker Size
15 Amps
Dimensions
Flue Connection Size
2 or 3 Inches
Cabinet Width
21 Inches
Product Height
34 1/2 Inches
Product Width
21 Inches
Product Depth
28 3/4 Inches
Product Weight
140 Pounds
Shipping Weight
140 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
Energy Star Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
7423789
Warranty Information
Parts Warranty Learn More
5 Years
Heat Exchanger Warranty
20 Years
GSX160301
General Information
Type
Condenser
Product Line
GSX16
Operating Mode Learn More
Cooling
Refrigerant Type
R-410a
Installation Location
Outdoor
Compressor Stages Learn More
Single
DOE Regional Compliance Learn More
Nationwide
Installation Available
Yes
Performance
Capacity Learn More
2.5 Tons
Cooling BTU
30000
Cooling Capacity
29000 BTU
SEER Learn More
16.0
Maximum Sound Level Learn More
72 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
17 Amps
Recommended Breaker Size
25 Amps
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
36 1/4 Inches
Product Width
29 Inches
Product Depth
29 Inches
Product Weight
149 Pounds
Shipping Weight
167 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Limited* 10 Years Years
CAPF3743C6
General Information
Type
Evaporator Coil
Product Line
CAPF
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration Learn More
Upflow/Downflow
Installation Available
Yes
Performance
Capacity Learn More
3.0 - 3.5 Tons
Cooling BTU
42000
Nominal Minimum Cooling Capacity
36000 BTU
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
21 Inches
Product Height
30 Inches
Product Width
21 Inches
Product Depth
21 Inches
Product Weight
63 Pounds
Shipping Weight
73 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty Learn More
5 Years
General Information
Type
TXV Kit
Product Line
TXV
Refrigerant Type
R-410A
Dimensions
Product Weight
1 Pound
Shipping Weight
2 Pounds
