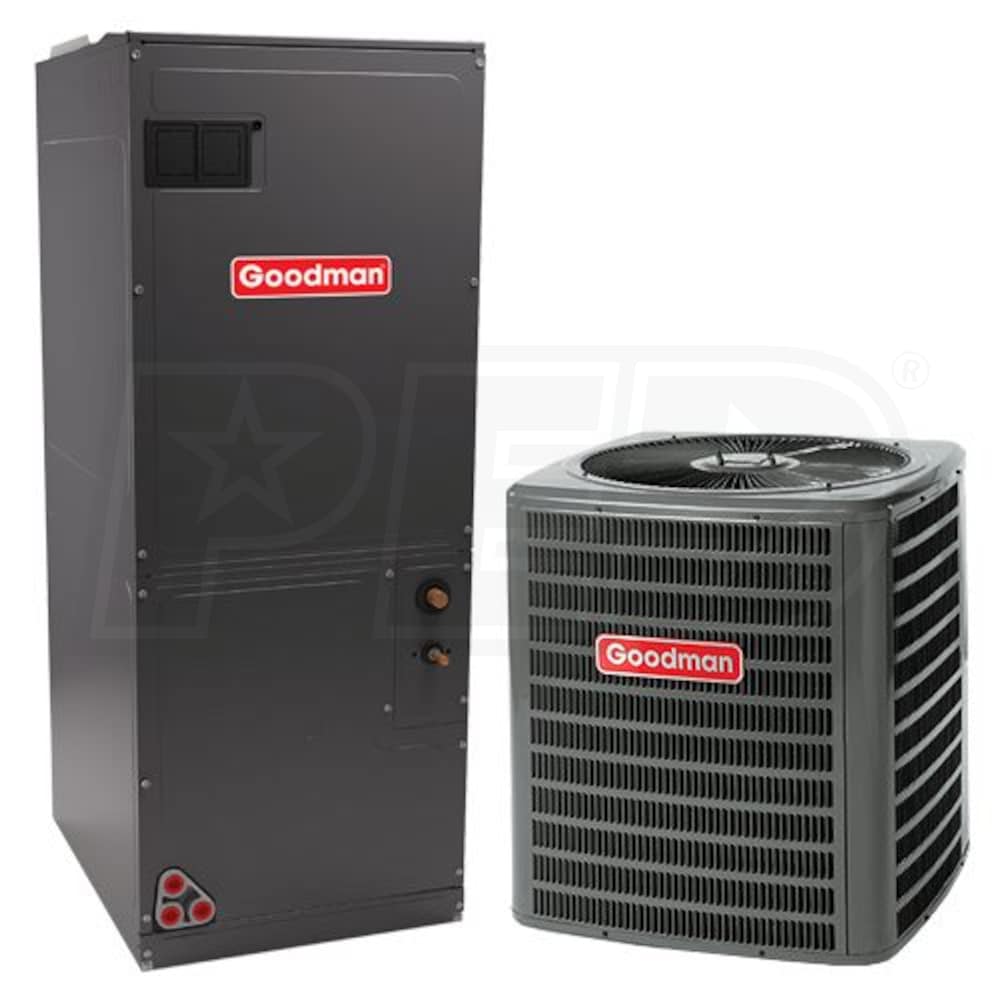

Goodman - 5.0 Ton Cooling - Air Conditioner + Air Handler Kit - 16 SEER

Model:

GSX160601 AVPTC61D14

Write A Review
Add to Cart for Best Price
Was $4,252.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-6 Weeks
synchrony card logo
$70 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Goodman - 5.0 Ton Cooling - Air Conditioner + Air Handler Kit - 16 SEER
Goodman - 5.0 Ton Cooling - Air Conditioner + Air Handler Kit - 16 SEER
Model: GSX160601 AVPTC61D14
Add to Cart for Price
Was $4,252.00
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

    The compressor in the Goodman GSX160601 Air Conditioner Condenser is covered by a 10-Year Compressor Replacement Limited Warranty. If the compressor fails within 10 years of installation, a new one will be provided to the original purchaser of the central air conditioning system as long as they live in the same single-family residence. All functional parts are covered by a 10-Year Parts Limited Warranty.

    The Goodman GSX16 GSX160601 Air Conditioner Condenser

    The Goodman brand is one of the biggest names in home cooling, heating and energy-efficient home comfort. That's because Goodman air conditioner condensers live up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable.

    A cool history for the Goodman GSX160601 air conditioner condenser

    Long ago Goodman determined that the combination of copper tubing and aluminum fins provided the most efficient transfer of thermal heat available. Today, the Goodman GSX160601 air conditioner has improved upon this industry standard by making the condenser coil copper tubing smaller and smarter. The result is a Goodman air conditioning unit that can offer high efficiency, use less refrigerant, and deliver money-saving and energy saving comfort to you for years.

    The Goodman GSX160601 will keep you as cool as a cucumber

    Known as the best air conditioner the Goodman GSX160601 is the kind you don't have to think or worry about. It comes on the moment you need it and then runs quietly and efficiently all year long as needed. The Goodman GSX16 GSX160601 is loaded with features designed to provide outstanding performance for years to come. The Goodman company use's advanced techniques and materials so you know the cozy, even temperature you feel in every corner of your home is an energy-efficient trend that's designed to stay for many years.

    Goodman brand air conditioners and heaters such as the GSX160601 take pride in its company heritage.

    Goodman brand air conditioners and heaters offer a complete line of HVAC products that are priced to help add comfort to your budget. Goodman air conditioners were designed to add a smile every time you open your utility bill. The Goodman GSX160601 air conditioners ultimately adhere to some old-fashioned values, too. Goodman believes in the integrity of the American worker. That's why Goodman brand heating and cooling systems are designed, engineered and assembled in the United States.

    When you think of the Goodman GSX160601 air conditioner condenser consider it as the art of precision

    Energy-Efficient Scroll Compressor - Inside of the Goodman GSX160601 air conditioners you will find compressors designed to provide years of reliable cooling comfort, it provides 14 SEER cooling performance for lower energy bills compared to lower SEER units.

    Single-Speed Condenser Fan Motor - With advanced fan design, it provides dependable, quiet airflow across the condensing coil. The Goodman GSX160601 air conditioners simply work the way they're supposed to, making each one a thing of beauty.

    Efficient Cooling Capacity - Five millimeter, refrigeration-grade premium copper tubing and aluminum fin condenser coil configuration deliver outstanding heat transfer properties with R-410A, chlorine-free, refrigerant.

    Heavy-Gauge, Galvanized Steel Enclosure Cabinet - A louvered cabinet protects the coil, while its appliance-quality, post-paint, baked enamel finish protects your system from outdoor elements.

    Factory-Installed In-Line Filter Drier - Protects the refrigerant system from dirt and moisture for longer service life compared to units without filter driers.

    Quiet Operation - An acoustically engineered sound control blanket helps reduce noise levels compared to units without sound control blankets.


    Overview for Goodman AVPTC61D14 Air Conditioner Air Handler

    The Goodman AVPTC61D14 Air Conditioner Air Handler design includes a variable-speed direct current motor, which helps eliminate the cold blast of air upon heating start-up often associated with single-speed units. These Goodman AVPTC61D14 Air Conditioner air handler is ideal for either new or retrofit installations.

    The Goodman AVPTC AVPTC61D14 Variable speed, Multi position Air Handler Electric Furnace with ComfortNet Capabilites

    The Goodman brand is one of the biggest names in home cooling, heating and energy-efficient home comfort. That's because Goodman air conditioner condensers live up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable.

    A history of the Goodman AVPTC AVPTC61D14 Variable speed, Multi position Air Handler Electric Furnace with ComfortNet Capabilites

    Known as the best modular blower around, the Goodman AVPTC AVPTC61D14 Variable speed, Multi position Air Handler Electric Furnace with ComfortNet Capabilites is the kind you don't have to think or worry about. It comes on the moment you need it and then runs quietly and efficiently all year long as needed. The Goodman AVPTC AVPTC61D14 Variable speed, Multi position Air Handler Electric Furnace with ComfortNet Capabilites is loaded with features designed to provide outstanding performance for years to come. The Goodman company use's advanced techniques and materials so you know the cozy, even temperature you feel in every corner of your home is an energy-efficient trend that's designed to stay for many years.

    Goodman brand Air handlers - Electric Furnaces such as the AVPTC61D14 take pride in its company heritage.

    Goodman brand air conditioners and heaters offer a complete line of HVAC products that are priced to help add comfort to your budget. Goodman modular blowers were designed to add a smile every time you open your utility bill. The Goodman AVPTC AVPTC61D14 Multi speed, Multi position Air Handler Electric Furnace ultimately adhere to some old-fashioned values, too. Goodman believes in the integrity of the American worker. That's why Goodman brand heating and cooling systems are designed, engineered and assembled in the United States.

    Goodman AVPTC AVPTC61D14 Variable speed, Multi position Air Handler Electric Furnace with ComfortNet Capabilites are considered as the art of precision

    All-Aluminum Evaporator Coil - Designed for efficient heat transfer and durable performance and resists potential corrosion.

    Field-Installed Heat Strips - From 3-20 kW* for emergency heating, if ever needed. (*Only select Goodman Modular blowers can use the Goodman 15-20kW Heat Strips)

    Smartframe Substructure - Intelligent structural design both improves the Goodman brand air handler's lateral strength and affords a sturdy mounting framework for internal components. It also secures the foil-faced insulation covering the entire blower casing that can reduce operating noise. All of which helps to increase durability and reliability of unit.

    But best of all, this Goodman AVPTC AVPTC61D14 Multi speed, Multi position Air Handler Electric Furnace is compatible with the ComfortNet system of communicating control products. The ComfortNet control system actively monitors and analyzes the entire HVAC system for any irregular conditions. If detected, the control will take appropriate action and display the results in the diagnostic menu on the ComfortNet control unit. This allows for outstanding performance and accurate detection of any system related issue.

    Product Includes
    • (1) Goodman GSX16 - 5.0 Ton - Air Conditioner - 16 Nominal SEER - Single-Stage - R-410a Refrigerant (GSX160601)
    • (1) Goodman AVPTC - 5.0 Ton - Air Handler - Multi-Position - Variable Speed ECM Blower (AVPTC61D14)
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Goodman GSX16 - 5.0 Ton - Air Conditioner - 16 Nominal SEER - Single-Stage - R-410a Refrigerant (GSX160601)
  • (1) Goodman AVPTC - 5.0 Ton - Air Handler - Multi-Position - Variable Speed ECM Blower (AVPTC61D14)
GSX160601 AVPTC61D14
specs product image PID-87583
Overview
Product Category
Air Conditioner & Air Handler Package
General Information
Product Category
Air Conditioner & Air Handler Package
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Installation Available
Yes
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
5.0 Tons
Cooling Capacity
54000 BTU
Nominal Cooling Capacity
60000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16.0
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
13.0
Maximum Air Flow
1775 CFM
Dimensions
Product Weight
446 Pounds
Shipping Weight
468 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
8996164
GSX160601
General Information
Type
Condenser
Product Line
GSX16
Product Category
Air Conditioning Condensers
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Installation Available
Yes
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
5.0 Tons
Cooling BTU
60000
Cooling Capacity
54000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16.0
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
73 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
30 Amps
Recommended Breaker Size
50 Amps
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
38 1/4 Inches
Product Width
35 1/2 Inches
Product Depth
35 1/2 Inches
Product Weight
279 Pounds
Shipping Weight
301 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
Limited* 10 Years Years
Overview
Product Category
Air Conditioning Condensers
AVPTC61D14
General Information
Type
Air Handler
Product Line
AVPTC
Product Category
Air Handler
Refrigerant Type
R-410A
Blower Motor
Variable-Speed
Motor Type
ECM
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
Installation Location
Indoor
Installation Available
Yes
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
5.0 Tons
Cooling BTU
60000
Maximum Air Flow
2035 CFM
Minimum Air Flow
1360 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
9 Amps
Recommended Breaker Size
15 Amps
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
58 Inches
Product Width
24 1/2 Inches
Product Depth
21 Inches
Product Weight
112 Pounds
Shipping Weight
167 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Limited Years
Overview
Product Category
Air Handler
