Goodman - 5 Ton Air Conditioner + Coil System - 14.0 SEER - 21" Coil Width - For Upflow/Downflow Installation

Model:

GSX1460CAPF4961C6-V

Write A Review
$2,872.24
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships in 2-5 Business Days
Shipping to60601
synchrony card logo
$51 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Goodman - 5 Ton Air Conditioner + Coil System - 14.0 SEER - 21
Goodman - 5 Ton Air Conditioner + Coil System - 14.0 SEER - 21" Coil Width - For Upflow/Downflow Installation
Model: GSX1460CAPF4961C6-V
$2,872.24
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    The Goodman GSX1460CAPF4961C6-V kit includes an outdoor condenser and evaporator coil to complete your home's central air system. The powerful GSX14 air conditioner features an advanced condenser coil design that provides efficient and reliable cooling. The CAPF4961C6 evaporator coil fits directly onto your existing 21" furnace or air handler cabinet, allowing conditioned air to be circulated into your home. The GSX14's galvanized steel construction paired with the all-aluminum evaporator coil design ensures your cooling system stays effective and efficient for years to come.
  • Advanced Coil Design
  • The condenser coil of this air conditioner is designed with aluminum fins and rifled copper tubing to maximize efficiency. The fins and rifling serve to increase surface area, allowing the heat transfer capabilities of the materials to shine.
  • Filter Drier
  • A filter drier is installed in the liquid line of the air conditioner to remove moisture and trap impurities. This prevents corrosion, freezing, and blockages that can negatively impact the operation of the air conditioner.
  • All-Aluminum Coil
  • Goodman's evaporator coils use a reliable all-aluminum design featuring sine fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
  • Secure Cabinet
  • The cabinet of the GSX14 is built to last. Galvanized steel construction, a durable powder paint finish, and a steel coil guard protect your equipment from wear and tear, increasing its longevity.
  • Durable Evaporator Coil
  • A galvanized, embossed, and insulated cabinet protects the evaporator coil and prevents air leakage, providing superior efficiency over years of use.
  • Condensate Management
  • The included evaporator coil features foil-faced insulation to inhibit the formation of condensate and a rust-resistant thermoplastic drain pan to capture what does form, keeping your system safe and operational.
  • Quiet Comfort
  • Goodman takes great pride in providing comfort that doesn't disrupt your home. The louvered top and three-bladed condenser fan of the GSX14 were designed to reduce noise levels without compromising performance.
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.

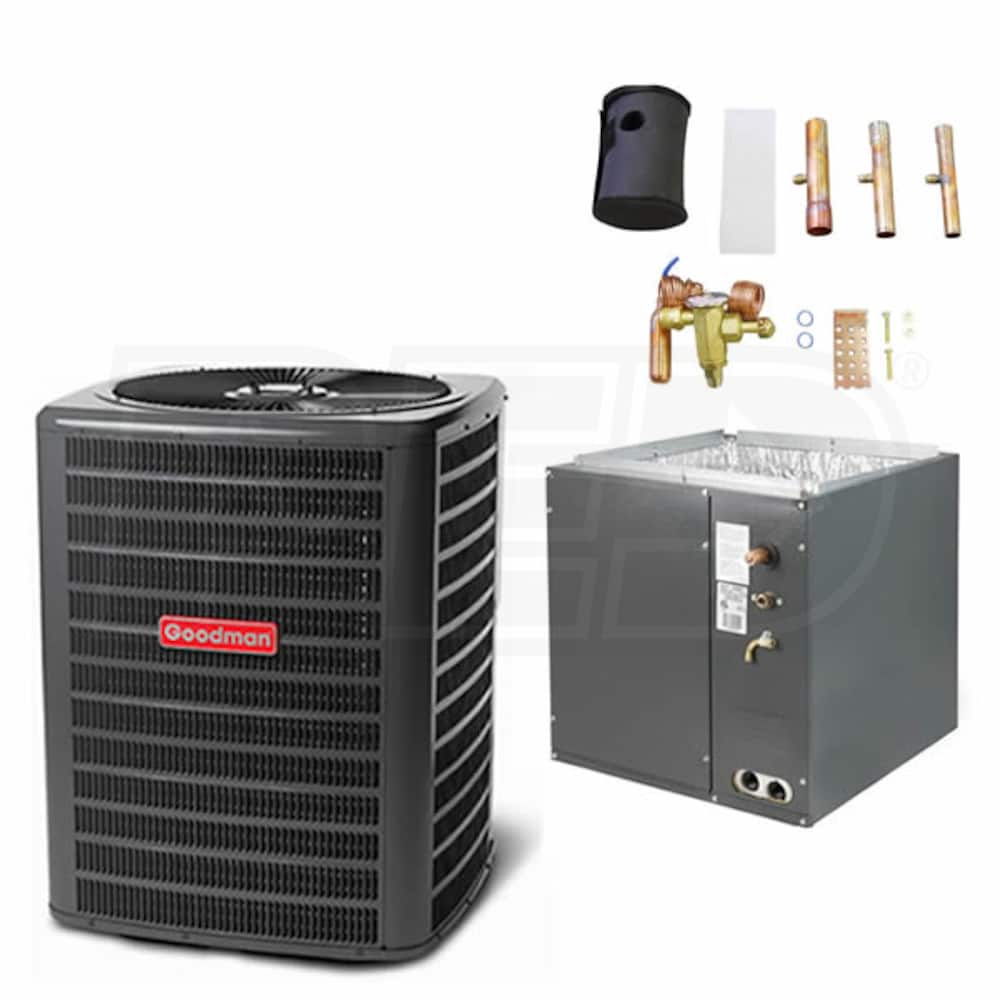

  • Product Includes
    • (1) Goodman GSX14 - 5 Ton - Air Conditioner - 14 Nominal SEER - Single-Stage - R-410A Refrigerant (GSX140601)
    • (1) Goodman CAPF - 4-5 Ton - Upflow/Downflow A Coil - Cased - 21" Width (CAPF4961C6)
    • (1) Goodman TXV Kit - 3.5-5 Ton - R-410A (TX5N4)
    Product Note
    The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab. NOTE: Due to DOE regulations, as of January 1st this unit can no longer be installed in the southwest and southeast DOE regions.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Goodman GSX14 - 5 Ton - Air Conditioner - 14 Nominal SEER - Single-Stage - R-410A Refrigerant (GSX140601)
  • (1) Goodman CAPF - 4-5 Ton - Upflow/Downflow A Coil - Cased - 21" Width (CAPF4961C6)
  • (1) Goodman TXV Kit - 3.5-5 Ton - R-410A (TX5N4)
GSX1460CAPF4961C6-V
specs product image PID-81785
Overview
Product Category
Air Conditioner & Coil Package
General Information
Product Category
Air Conditioner & Coil Package
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Refrigerant Type
R-410A
Coil Width
21 Inches
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Downflow
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
North
Installation Available
Yes
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
5.0 Tons
Cooling Capacity
57000 BTU
Nominal Cooling Capacity
60000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
14.0
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
11.7
Dimensions
Shipping Weight
387 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
7517450
GSX140601
General Information
Type
Condenser
Product Line
GSX14
Product Category
Air Conditioning Condensers
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Refrigerant Type
R-410a
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
North
Installation Available
Yes
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
5.0 Tons
Cooling BTU
60000
Cooling Capacity
60000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
14.0
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
11.7
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
75 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
33 Amps
Recommended Breaker Size
50 Amps
Dimensions
Suction Connection Size
1 1/8 Inches
Liquid Connection Size
3/8 Inch
Product Height
38 1/4 Inches
Product Width
35 1/2 Inches
Product Depth
35 1/2 Inches
Product Weight
260 Pounds
Shipping Weight
280 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
Limited* 10 Years Years
Overview
Product Category
Air Conditioning Condensers
CAPF4961C6
General Information
Type
Evaporator Coil
Product Line
CAPF
Product Category
Evaporator Coil
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Downflow
Installation Available
Yes
TXV Installed
No
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
4.0 - 5.0 Tons
Cooling BTU
60000
Nominal Minimum Cooling Capacity
48000 BTU
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
21 Inches
Product Height
30 Inches
Product Width
21 Inches
Product Depth
21 Inches
Product Weight
73 Pounds
Shipping Weight
83 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Overview
Product Category
Evaporator Coil
General Information
Type
TXV Kit
Product Line
TX
Product Category
Forced Air Accessories
Refrigerant Type
R-410A
Dimensions
Product Weight
1 Pound
Shipping Weight
2 Pounds
Overview
Product Category
Forced Air Accessories
