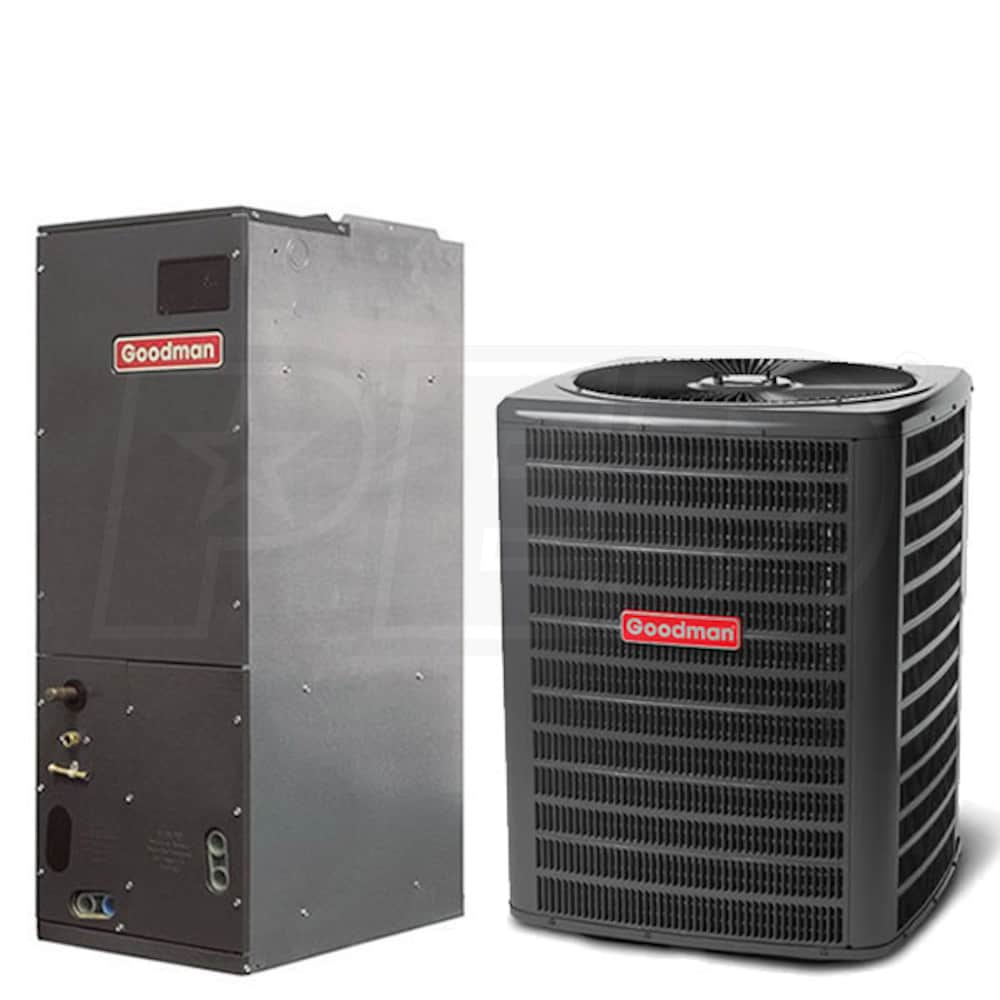

Goodman - 2.5 Ton Cooling - Air Conditioner + Air Handler Kit - 14.0 SEER

Model:

GSX1430ARUF

Write a Review
Add to Cart for Best Price
Was $2,095.00
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Factory-Direct
Ships in 4-6 Weeks
synchrony card logo
$315 / Month
Suggested monthly payments with 6 month financing.
Goodman - 2.5 Ton Cooling - Air Conditioner + Air Handler Kit - 14.0 SEER
Goodman - 2.5 Ton Cooling - Air Conditioner + Air Handler Kit - 14.0 SEER
Model: GSX1430ARUF
Add to Cart for Price
Was $2,095.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Chris, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    A Goodman high efficiency central air kit is the perfect way to upgrade your home's HVAC system. This kit contains a GSX14 air conditioner and an ARUF air handler which provides efficent cooling at a low upfront cost. While each of these components enjoy the impressive durability and easy accessibility for which Goodman is famous, their energy efficiency is the real selling point. State-of-the-art design and technology make the GSX1430ARUF an excellent addition to nearly any household looking to reduce their energy spending.
  • Advanced Coil Design
  • The condenser coil of this air conditioner is designed with aluminum fins and rifled copper tubing to maximize efficiency. The fins and rifling serve to increase surface area, allowing the heat transfer capabilities of the materials to shine.
  • High-Efficiency Compressor
  • This unit utilizes a high-efficiency scroll compressor to provide refrigerant flow. Scroll compressors are renowned for operating more smoothly and reliably than traditional compressors.
  • Filter Drier
  • A filter drier is installed in the liquid line of this air conditioner. It serves two important purposes: removing moisture and trapping impurities. This prevents corrosion, freezing, and blockages that can negatively impact operation.
  • Quiet Comfort
  • Goodman takes great pride in providing comfort that doesn't disrupt your home. The GSX14 features a three-bladed condenser fan, wire fan discharge grille, and louvered top, all designed to reduce noise levels without compromising performance.
  • Dehumidification
  • Goodman's air handlers make it easy to stay cool. The ARUF is designed to remove moisture from the air, letting you feel cool at higher temperatures.
  • SmartFrame
  • The ARUF features Goodman's SmartFrame sub-structure for enhanced accessibility. It provides tool-less access to the filter rack and includes a coil mounting track that improves installation speed for all four compatible orientations.
  • Condensate Management
  • The ARUF's design includes molded diverters, foil-faced insulation, and screw-less construction of the cabinet's side and rear sections. These elements help prevent the formation of condensation and keep your system running smoothly.
  • Secure Cabinet
  • This air handler enjoys reduced noise levels, less than 2% air leakage, and enhanced durability as a result of its insulated, embossed cabinet design.
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
  • Product Includes
    • (1) Goodman GSX14 - 2.5 Ton - Air Conditioner - 14 Nominal SEER - Single-Stage - R-410A Refrigerant - Designed For Southwest Region (GSX140311)
    • (1) Goodman ARUF - 2.5 Ton - Air Handler - Multi-Position - PSC Motor (ARUF31B14)
    Product Note
    The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Goodman GSX14 - 2.5 Ton - Air Conditioner - 14 Nominal SEER - Single-Stage - R-410A Refrigerant - Designed For Southwest Region (GSX140311)
  • (1) Goodman ARUF - 2.5 Ton - Air Handler - Multi-Position - PSC Motor (ARUF31B14)
GSX1430ARUF
specs product image PID-75353
General Information
Operating Mode Learn More
Cooling
Configuration Learn More
Multi-Position
Compressor Stages Learn More
Single
DOE Regional Compliance Learn More
Nationwide
Installation Available
Yes
Performance
Capacity Learn More
2.5 Tons
Cooling Capacity
28200 BTU
Nominal Cooling Capacity
30000 BTU
SEER Learn More
14.0
EER Learn More
12.2
Maximum Air Flow
870 CFM
Dimensions
Product Weight
272 Pounds
Shipping Weight
290 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
7984194
Warranty Information
Parts Warranty Learn More
10 Limited Years
GSX140311
General Information
Type
Condenser
Product Line
GSX14
Operating Mode Learn More
Cooling
Refrigerant Type
R-410a
Installation Location
Outdoor
Compressor Stages Learn More
Single
DOE Regional Compliance Learn More
Nationwide
Installation Available
Yes
Performance
Capacity Learn More
2.5 Tons
Cooling BTU
30000
Cooling Capacity
30000 BTU
SEER Learn More
14.0
EER Learn More
12.2
Maximum Sound Level Learn More
72 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
17 Amps
Recommended Breaker Size
25 Amps
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
32 1/2 Inches
Product Width
29 Inches
Product Depth
29 Inches
Product Weight
162 Pounds
Shipping Weight
180 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Limited* 10 Years Years
ARUF31B14
General Information
Type
Air Handler
Product Line
ARUF
Refrigerant Type
R-410A
Blower Motor
Multi-Speed
Motor Type
PSC
Configuration Learn More
Multi-Position
Installation Location
Indoor
Installation Available
Yes
Performance
Capacity Learn More
2.5 Tons
Cooling BTU
30000
Maximum Air Flow
1235 CFM
Minimum Air Flow
660 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
2 Amps
Recommended Breaker Size
15 Amps
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
53 7/16 Inches
Product Width
17 1/2 Inches
Product Depth
21 Inches
Product Weight
100 Pounds
Shipping Weight
113 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty Learn More
5 Years
Parts Warranty Learn More
10 Limited Years
