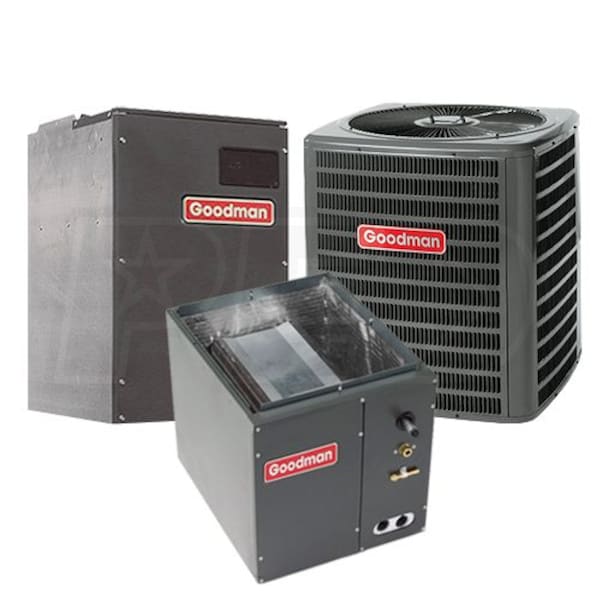

Goodman - 2.5 Ton Cooling - Air Conditioner + Air Handler System - 14.5 SEER
Model:
GSX140301 MBVC1600AA-1 CAPFA3022C6
+
Share This Product
Features
- AHRI Reference Number: 7516252* *May change based on the Manufacturer revision
- The manufacturer model number(s): Goodman GSX140301 CAPF3642C6 MBVC1600AA-1
- (1) Goodman GSX14 - 2.5 Ton - Air Conditioner - 14 Nominal SEER - Single-Stage - R-410A Refrigerant (GSX140301)
- (1) Goodman 3.5 to 4 Ton Air Conditioner Modular Blower Variable Speed (MBVC1600AA-1)
- (1) Goodman CAPF - 2.5 Ton - Upflow/Downflow A Coil - Cased - 21" Width (CAPFA3022C6)
A Goodman central air and furnace kit is the perfect way to update your home's HVAC system. This kit contains a GSX14 air conditioner, a MBVC16 modular blower, and a cased CAPFA evaporator coil making it the ideal solution for most parts of the country. It's the perfect kit for areas that use an average amount of cooling but want a multi-speed furnace for the long cold winters. Each of these components is designed with a focus on ease-of-installation and durability to provide you with upfront and long-term value. If you're looking for a complete comfort solution backed by superior craftsmanship, the Goodman GSX140301 MBVC1600AA-1 CAPFA3022C6 air conditioner and furnace kit fits the bill perfectly.
Product Includes
Product Note
NOTE: Due to DOE regulations, as of January 1st this unit can no longer be installed in the southwest and southeast DOE regions. NOTE: Due to DOE regulations, as of January 1st this unit can no longer be installed in the southwest and southeast DOE regions.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) Goodman GSX14 - 2.5 Ton - Air Conditioner - 14 Nominal SEER - Single-Stage - R-410A Refrigerant (GSX140301)
- (1) Goodman 3.5 to 4 Ton Air Conditioner Modular Blower Variable Speed (MBVC1600AA-1)
- (1) Goodman CAPF - 2.5 Ton - Upflow/Downflow A Coil - Cased - 21" Width (CAPFA3022C6)
GSX140301 MBVC1600AA-1 CAPFA3022C6
Overview
Product Category
Air Conditioner & Air Handler Package
General Information
Product Category
Air Conditioner & Air Handler Package
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Blower Motor Type
ECM Variable-Speed
Coil Width
21 Inches
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
North
Installation Available
Yes
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.5 Tons
Cooling Capacity
28600 BTU
Nominal Cooling Capacity
42000 BTU
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
14.5
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.0
Maximum Air Flow
1400 CFM
Dimensions
Product Weight
352 Pounds
Shipping Weight
370 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
205076398
GSX140301
General Information
Type
Condenser
Product Line
GSX14
Product Category
Air Conditioning Condensers
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Refrigerant Type
R-410a
Installation Location
Outdoor
Compressor Stages
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
North
Installation Available
Yes
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.5 Tons
Cooling BTU
30000
Cooling Capacity
30000 BTU
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
14.0
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.0
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
72 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
17 Amps
Recommended Breaker Size
25 Amps
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
32 1/2 Inches
Product Width
29 Inches
Product Depth
29 Inches
Product Weight
162 Pounds
Shipping Weight
180 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
Limited* 10 Years Years
Overview
Product Category
Air Conditioning Condensers
MBVC1600AA-1
General Information
Type
Air Handler
Product Line
MBVC
Product Category
Air Handler
Blower Motor Type
Variable Speed
Motor Type
ECM
Mount Type
Multi-Position
Installation Location
Indoor
Electric Heat
Available
Installation Available
Yes
TXV Installed
No
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
4.0 Tons
Maximum Air Flow
1600 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
6.3 Amps
Recommended Breaker Size
15 Amps
Dimensions
Cabinet Width
21 Inches
Product Height
30 Inches
Product Width
21 Inches
Product Depth
21 Inches
Product Weight
80 Pounds
Shipping Weight
90 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
Limited* 10 Years
Overview
Product Category
Forced Air Blower
CAPFA3022C6
General Information
Type
Evaporator Coil
Product Line
CAPF
Product Category
Evaporator Coil
Refrigerant Type
R-22/R-410A
Casing
Cased
Style
A Coil
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Downflow
Installation Available
Yes
TXV Installed
No
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.5 Tons
Cooling BTU
30000
Nominal Minimum Cooling Capacity
30000 BTU
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
21 Inches
Product Height
22 Inches
Product Width
21 Inches
Product Depth
21 Inches
Product Weight
40 Pounds
Shipping Weight
50 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
Overview
Product Category
Evaporator Coil
