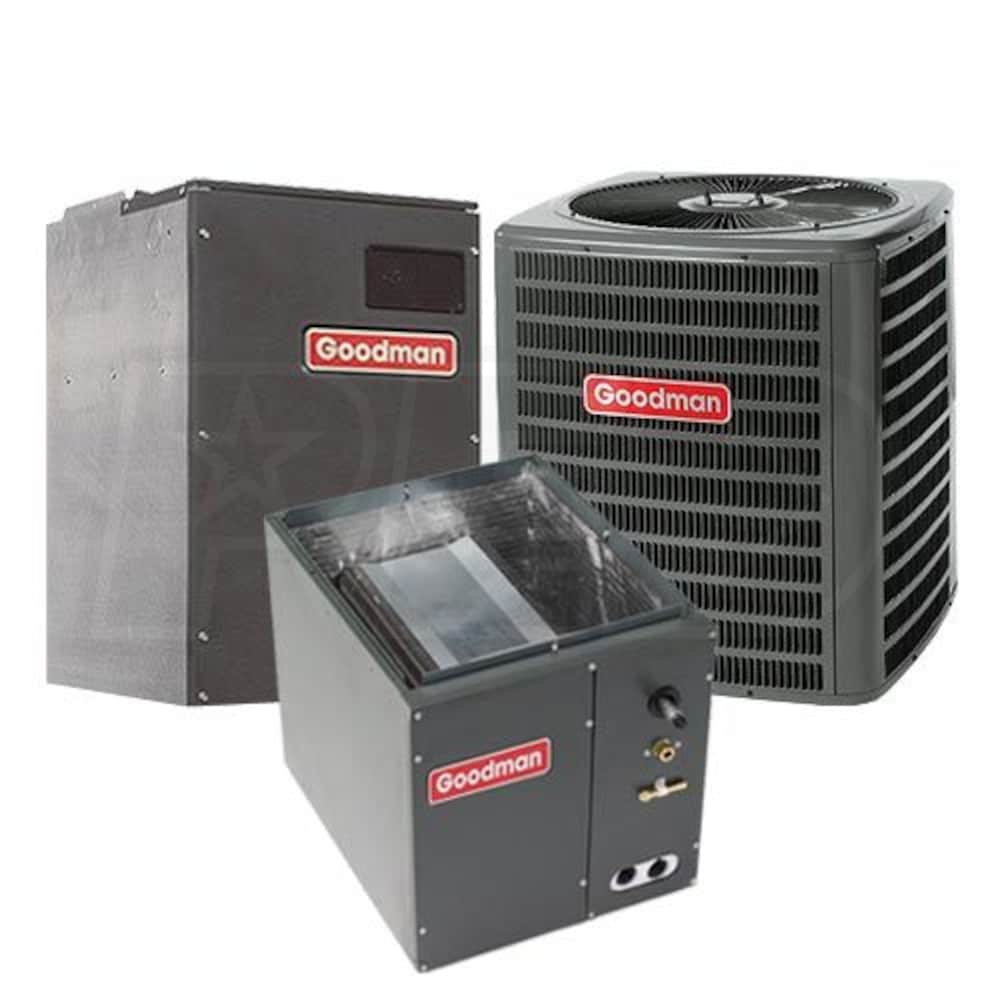

Goodman - 3.5 Ton Cooling - Air Conditioner + Variable Speed Air Handler System - 14.0 SEER

Model:

GSX13042 CAPF4860 MBVC1600

Write A Review
Add to Cart for Best Price
Was $3,051.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships in 2-5 Business Days
Shipping to60601
synchrony card logo
$53 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Goodman - 3.5 Ton Cooling - Air Conditioner + Variable Speed Air Handler System - 14.0 SEER
Goodman - 3.5 Ton Cooling - Air Conditioner + Variable Speed Air Handler System - 14.0 SEER
Model: GSX13042 CAPF4860 MBVC1600
Add to Cart for Price
Was $3,051.00
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Installation Sale!
Save Up to $2000 on Select Goodman Replacement Installation.
Offer Ends 03/31/24
Share

Features

    The Goodman brand is one of the biggest names in home cooling and energy-efficient home comfort. That's because Goodman air conditioner condensers live up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable.

    PLEASE NOTE

    The US Department of Energy (DOE) regulates minimum efficiency standards for central air conditioners and heat pumps based on geographic regions for the United States. We are required to abide by these regulations when selling these types of products, and take this responsibility seriously. The standards depend on the rated efficiency of the entire system, not the nominal efficiencies of individual components. If you live in any of the following states - AL, AR, DC, DE, FL, GA, KY, LA, MD, MS, NC, OK, SC, TN, TX or VA and are planning to have the product shipped to those states it is strongly recommend you call us or email us before you place your order so we can offer an alternate product. We unfortunately will not ship equipment that falls under the minimum DOE requirements to those states. (Learn More)

    The Goodman GSX130421 Air Conditioner Condenser with a SEER rating up to 14 SEER will keep you as cool as a cucumber

    Known as the best air conditioner the Goodman GSX130421 air conditioner condenser is the kind you don't have to think or worry about. It comes on the moment you need it and then runs quietly and efficiently all year long as needed. The Goodman GSX13 GSX130421 air conditioner condenser is loaded with features designed to provide outstanding performance for years to come. The Goodman company use's advanced techniques and materials so you know the cozy, even temperature you feel in every corner of your home is an energy-efficient trend that's designed to stay for many years.

    Goodman brand air conditioners such as the GSX130421 take pride in its company heritage.

    Goodman brand air conditioners offer a complete line of HVAC products that are priced to help add comfort to your budget. Goodman air conditioners were designed to add a smile every time you open your utility bill. The Goodman GSX130421 air conditioner condensers ultimately adhere to some old-fashioned values, too. Goodman believes in the integrity of the American worker. That's why Goodman brand cooling systems are designed, engineered and assembled in the United States.

    When you think of the Goodman GSX130421 air conditioner condenser, consider it as the art of precision

    Energy-Efficient Scroll Compressor- Inside of the Goodman GSX130421 air conditioner condensers you will find compressors designed to provide years of reliable cooling comfort, it provides 14 SEER cooling performance for lower energy bills compared to lower SEER units.

    Single-Speed Condenser Fan Motor - With advanced fan design, it provides dependable, quiet airflow across the condensing coil. The Goodman GSX130421 air conditioner condenser simply work the way they're supposed to, making each one a thing of beauty.

    Efficient Cooling Capacity - Five millimeter, refrigeration-grade premium copper tubing and aluminum fin condenser coil configuration deliver outstanding heat transfer properties with R-410A, chlorine-free, refrigerant.

    Heavy-Gauge, Galvanized Steel Enclosure Cabinet - A louvered cabinet protects the coil, while its appliance-quality, post-paint, baked enamel finish protects your system from outdoor elements.

    Factory-Installed In-Line Filter Drier - Protects the refrigerant system from dirt and moisture for longer service life compared to units without filter driers.

    Overview for Goodman CAPF4860C6 Upflow / Downflow Cased Indoor Air Conditioner Evaporator Coil

    The Goodman CAPF4860C6 Upflow / Downflow Cased Indoor Air Conditioner Evaporator Coil is made for use with split-system air conditioners or heating and Evaporator systems. The Goodman Air Conditioning and Heating Company has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market. Goodman CAPF4860C6 Upflow / Downflow Cased Indoor Air Conditioner Evaporator Coil lives up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable.

    Using this Goodman CAPF4860C6 Upflow / Downflow Cased Indoor Air Conditioner Evaporator Coil is a breeze.

    The best indoor comfort system is the kind you don't have to think or worry about. The Goodman CAPF4860C6 Upflow / Downflow Cased Indoor Air Conditioner Evaporator Coil starts to work the moment you need it and then runs quietly and efficiently year after year. The Goodman CAPF4860C6 Upflow / Downflow Cased Indoor Air Conditioner Evaporator Coils have features designed to provide outstanding performance. Goodman brand Air Conditioning Evaporator Coils use advanced techniques and materials so you know the cozy, even temperature you feel in every corner of your home is an energy efficient trend you'll love for many years.

    The Goodman CAPF4860C6 Upflow / Downflow Cased Indoor Air Conditioner Evaporator Coil is home comfort that won't blow your budget.

    The Goodman Air Conditioner and Heater manufacturer wants you to smile every time you open your utility bill, so the Goodman CAPF4860C6 Upflow / Downflow Cased Indoor Air Conditioner Evaporator Coil is designed to function with a multitude of heating and cooling Goodman branded products.
    Goodman utilizes cutting edge, efficient technologies such as all aluminum coils, thermoplastic drain pans and is optimized for use with R410-A refrigerant. The All-Aluminum evaporator coil is constructed from aluminum tubing, fins and end plates giving you a single metal solution for outstanding, time-tested, heat transfer performance properties.

    Goodman takes pride in its company heritage when manufacturing the Goodman CAPF4860C6 Upflow / Downflow Cased Indoor Air Conditioner Evaporator Coil.

    Goodman brand heating and cooling systems are designed to provide refreshingly affordable and energy efficient indoor comfort solutions using advanced technology. But the company ultimately adheres to some old-fashioned values, too. Goodman believes in the integrity of the American worker. That's why Goodman brand heating and cooling systems are designed, engineered and assembled in the United States.

    Aluminum Tube and Aluminum Fin Coil Construction - Provides time-tested and proven heat transfer efficiency designed to resist potential corrosion.
    Grooved Aluminum Tubing - Offers increased surface area for efficient heat transfer performance by the unit's refrigerant.
    Every Unit Is Helium Pressure - Tested - During assembly to help ensure high levels of product quality. Helium is used, in part, because its molecules are smaller than oxygen. It's just one extra step taken to help ensure a high quality product.
    Every All-Aluminum Coil - Receives finished pressure testing and leak sniffing by hound-dog vacuum testing. This is a secondary test every unit receives before it leaves the factory.

    Overview for Goodman MBVC1600AA-1 Air Conditioner Modular Blower

    The Goodman MBVC1600AA-1 Air Conditioner Modular Blower is tailor-made for exceptional energy efficiency. This Goodman MBVC1600AA-1 Air Conditioner Modular Blower is designed with quality components and assembled with excellent craftsmanship. The Goodman Air Conditioning and Heating company have become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.

    The Goodman MBVC MBVC1600AA-1 Variable speed, Multi position Modular blower with ComfortNet Capabilites

    The Goodman brand is one of the biggest names in home cooling, heating and energy-efficient home comfort. That's because Goodman air conditioner condensers live up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable.

    A history of the Goodman MBVC MBVC1600AA-1 Variable speed, Multi position Modular blower with ComfortNet Capabilites

    Known as the best modular blower around, the Goodman MBVC MBVC1600AA-1 Variable speed, Multi position Modular blower with ComfortNet Capabilites is the kind you don't have to think or worry about. It comes on the moment you need it and then runs quietly and efficiently all year long as needed. The Goodman MBVC MBVC1600AA-1 Variable speed, Multi position Modular blower with ComfortNet Capabilites is loaded with features designed to provide outstanding performance for years to come. The Goodman company uses advanced techniques and materials so you know the cozy, even temperature you feel in every corner of your home is an energy-efficient trend that's designed to stay for many years.

    Goodman brand Air handlers - Electric Furnaces such as the MBVC1600AA-1 take pride in its company heritage.

    Goodman brand air conditioners and heaters offer a complete line of HVAC products that are priced to help add comfort to your budget. Goodman modular blowers were designed to add a smile every time you open your utility bill. The Goodman MBVC MBVC1600AA-1 Variable speed, Multi position Modular blower ultimately adhere to some old-fashioned values, too. Goodman believes in the integrity of the American worker. That's why Goodman brand heating and cooling systems are designed, engineered and assembled in the United States.

    Goodman MBVC MBVC1600AA-1 Variable speed, Multi position Modular blower with ComfortNet Capabilites are considered as the art of precision

    Modular Configurations with Upflow, Counterflow and Horizontal Positions - To support easy installation of unit regardless of your house type.

    Field-Installed Heat Strips - From 3-20 kW* for emergency heating, if ever needed. (*Only select Goodman Modular blowers can use the Goodman 15-20kW Heat Strips)

    But best of all, this Goodman MBVC MBVC1600AA-1 Variable speed, Multi position Modular blower is compatible with the ComfortNet system of communicating control products. The ComfortNet control system actively monitors and analyzes the entire HVAC system for any irregular conditions. If detected, the control will take appropriate action and display the results in the diagnostic menu on the ComfortNet control unit. This allows for outstanding performance and accurate detection of any system related issue.

  • The manufacturer model number(s): Goodman GSX130421 MBVC1600AA-1 CAPF4860C6
  • AHRI Reference Number: 201203930 * *May change based on the Manufacturer revision
  • Product Includes
    • (1) Goodman GSX13 - 3.5 Ton - Air Conditioner - 13 Nominal SEER - Single-Stage - R-410a Refrigerant (GSX130421)
    • (1) Goodman MBVC - 1600 CFM - Modular Blower - Variable Speed - 208-230/60/1 - ECM Motor (MBVC1600AA-1)
    • (1) Goodman CAPF - 4-5 Ton - Upflow/Downflow A Coil - Cased - 21" Width (CAPF4860C6)
    Product Note
    NOTE: Due to DOE regulations, as of January 1st this unit can no longer be installed in the southwest and southeast DOE regions.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Goodman GSX13 - 3.5 Ton - Air Conditioner - 13 Nominal SEER - Single-Stage - R-410a Refrigerant (GSX130421)
  • (1) Goodman MBVC - 1600 CFM - Modular Blower - Variable Speed - 208-230/60/1 - ECM Motor (MBVC1600AA-1)
  • (1) Goodman CAPF - 4-5 Ton - Upflow/Downflow A Coil - Cased - 21" Width (CAPF4860C6)
GSX13042 CAPF4860 MBVC1600
specs product image PID-85629
Overview
Product Category
Air Conditioner & Air Handler Package
General Information
Product Category
Air Conditioner & Air Handler Package
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Blower Motor Type
ECM Variable-Speed
Coil Width
21 Inches
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Downflow
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
North
Installation Available
Yes
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.5 Tons
Cooling Capacity
34000 BTU
Nominal Cooling Capacity
36000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
14.0
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.0
Maximum Air Flow
1200 CFM
Dimensions
Product Weight
319 Pounds
Shipping Weight
337 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
200773118
GSX130421
General Information
Type
Condenser
Product Line
GSX13
Product Category
Air Conditioning Condensers
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Refrigerant Type
R-410a
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
North
Installation Available
Yes
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.5 Tons
Cooling BTU
42000
Cooling Capacity
42000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
13.0
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
11.0
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
75 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
24 Amps
Recommended Breaker Size
40 Amps
Dimensions
Suction Connection Size
1 1/8 Inches
Liquid Connection Size
3/8 Inch
Product Height
36 1/4 Inches
Product Width
29 Inches
Product Depth
29 Inches
Product Weight
171 Pounds
Shipping Weight
189 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
Limited* 10 Years Years
Overview
Product Category
Air Conditioning Condensers
MBVC1600AA-1
General Information
Type
Air Handler
Product Line
MBVC
Product Category
Air Handler
Blower Motor Type
Variable Speed
Motor Type
ECM
Mount Type
Multi-Position
Installation Location
Indoor
Electric Heat
Available
Installation Available
Yes
TXV Installed
No
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
4.0 Tons
Maximum Air Flow
1600 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
6.3 Amps
Recommended Breaker Size
15 Amps
Dimensions
Cabinet Width
21 Inches
Product Height
30 Inches
Product Width
21 Inches
Product Depth
21 Inches
Product Weight
80 Pounds
Shipping Weight
90 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
Limited* 10 Years
Overview
Product Category
Forced Air Blower
CAPF4860C6
General Information
Type
Evaporator Coil
Product Line
CAPF
Product Category
Evaporator Coil
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Downflow
Installation Available
Yes
TXV Installed
No
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
4.0 - 5.0 Tons
Cooling BTU
60000
Nominal Minimum Cooling Capacity
48000 BTU
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
21 Inches
Product Height
30 Inches
Product Width
21 Inches
Product Depth
21 Inches
Product Weight
65 Pounds
Shipping Weight
75 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Overview
Product Category
Evaporator Coil

Reviews

(1)
Goodman GSX13042 CAPF4860 MBVC1600 Reviews & Ratings

Product Q&A

Expert avatar photo
Be the First to Ask A Question Answered by Ken, the eComfort Product Expert

How-To Articles

Understanding Home Heating and Cooling Systems
Understanding Home Heating and Cooling Systems
When you think of a cozy home, you think of a place where you can escape a bitte...
How to Save Money This Cooling Season
How to Save Money This Cooling Season
The warm weather is here, and it's not leaving any time soon. As the outdoor te...
How to Pick the Perfect Air Conditioner
How to Pick the Perfect Air Conditioner
There are many home cooling options on the market today, but central air condit...
eComfort How-To Library
eComfort How-To Library
Articles, Tips and Buying Guides from Our Experts

Manuals


Media Gallery
Goodman - 3.5 Ton Cooling - Air Conditioner + Variable Speed Air Handler System - 14.0 SEER
Goodman GSX13042 CAPF4860 MBVC1600
Goodman GSX13042 CAPF4860 MBVC1600
Goodman GSX13042 CAPF4860 MBVC1600
Goodman GSX13042 CAPF4860 MBVC1600
Goodman GSX13042 CAPF4860 MBVC1600
Goodman GSX13042 CAPF4860 MBVC1600
Goodman GSX13042 CAPF4860 MBVC1600
Goodman GSX13042 CAPF4860 MBVC1600
Goodman GSX13042 CAPF4860 MBVC1600
Customer Review Images
