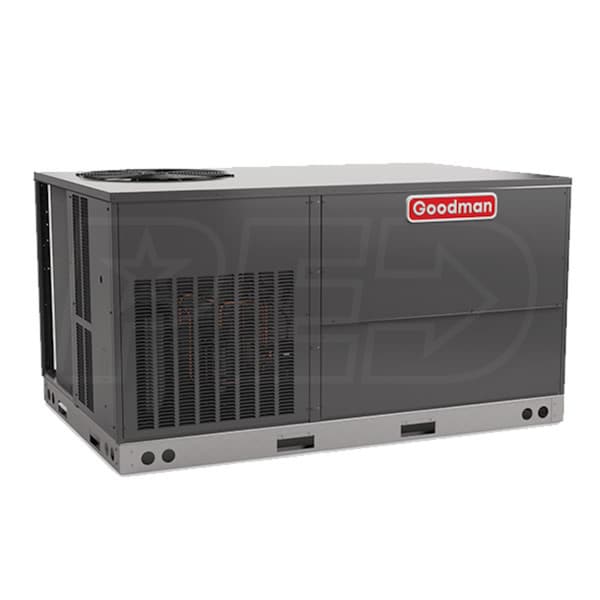

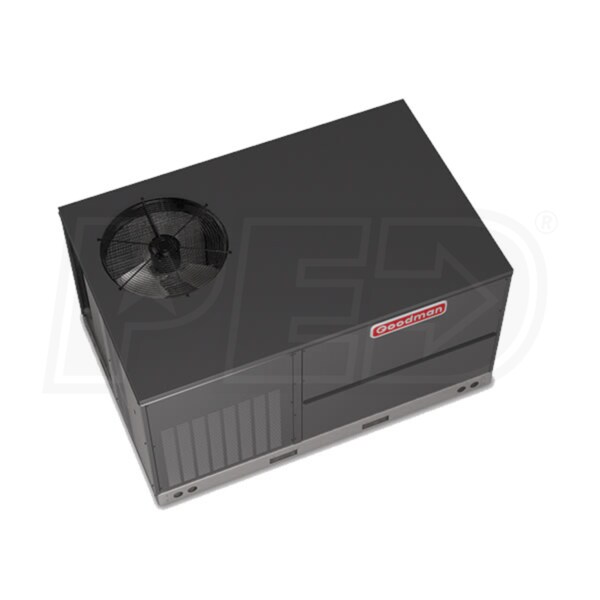

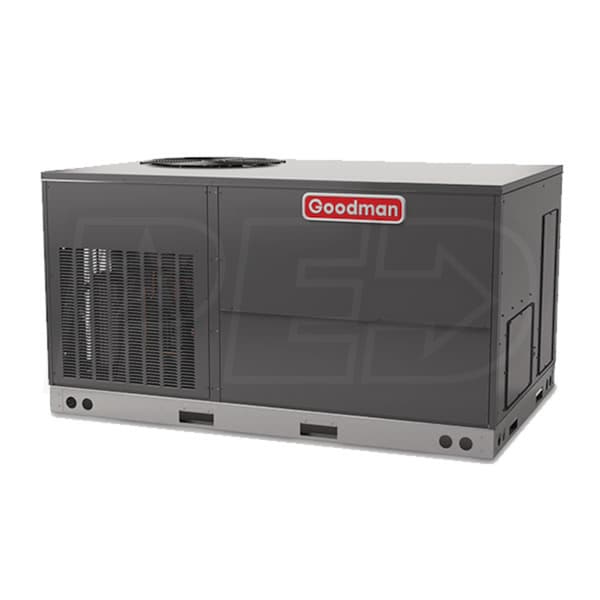

Goodman GPH16M - 5.0 Ton - Packaged Heat Pump System - 16.0 SEER - 8.2 HSPF - Downflow/Horizontal - 208-230/1/60
Model:
GPH1660M41
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Bob, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- High-Efficiency Coils
- The condenser coil of this packaged unit is designed with aluminum fins and rifled copper tubing to maximize surface area and efficiency. It also features a durable all-aluminum evaporator coil that optimizes heat transfer.
- Secure Design
- The cabinet of the GPH16M is built to last. A galvanized steel casing with a powder paint finish prevents fading and corrosion while louvered panels and a coil guard keep the most important components secure from damage.
- Quiet Comfort
- A sound insulated blower compartment and quiet horizontal discharge mean that the GPH16M provides comfort without disrupting your home.
- EEM Blower
- PSC blower motors are energy hogs. The EEM motor in the GPH16M reduces electrical consumption, ensuring efficient circulation.
- Optional Electric Heat
- With the GPH16M, you have the option to purchase an electric heat kit ranging from 5-20kw for field installation.
- Extended Warranty
- Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
Goodman's packaged units are the perfect all-in-one comfort solution for nearly any residential or light commercial application. The GPH16M combines a Goodman heat pump, evaporator coil, and blower to provide efficient heating and cooling IN a single unit. A rotary compressor means less maintenance, and Goodman's superior coil design helps to ensure efficient energy use. The GPH16M even features convenient access panels that make installation and maintenance a breeze.
Product Note
NOTE: This model has been temporarily suspended from production.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
GPH1660M41
Overview
Product Category
Packaged HVAC Unit
UPC
663051537439
General Information
Type
Heat Pump Packaged Unit
Product Line
GPH16M
Product Category
Packaged HVAC Unit
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Refrigerant Type
R-410A
Blower Motor Speed
Multi-Speed
Motor Type
EEM
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Downflow/Horizontal
Installation Location
Outdoor
Compressor Stages
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Two Stage
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Installation Available
Yes
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
5.0 Tons
Cooling BTU
60000
Heating Capacity
55000 BTU
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16.0
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.0
HSPF
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
8.2
Maximum Air Flow
1811 CFM
Minimum Air Flow
1233 CFM
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
78 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
42.5 Amps
Recommended Breaker Size
60 Amps
Dimensions
Product Height
42 3/4 Inches
Product Width
47 Inches
Product Depth
51 Inches
Product Weight
583 Pounds
Shipping Weight
612 Pounds
Certifications
ETL Listed
Yes
ISO Certified
Yes
AHRI Reference Number
9134480
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
Limited* 10 Years
Compressor Warranty
Limited* 10 Years
