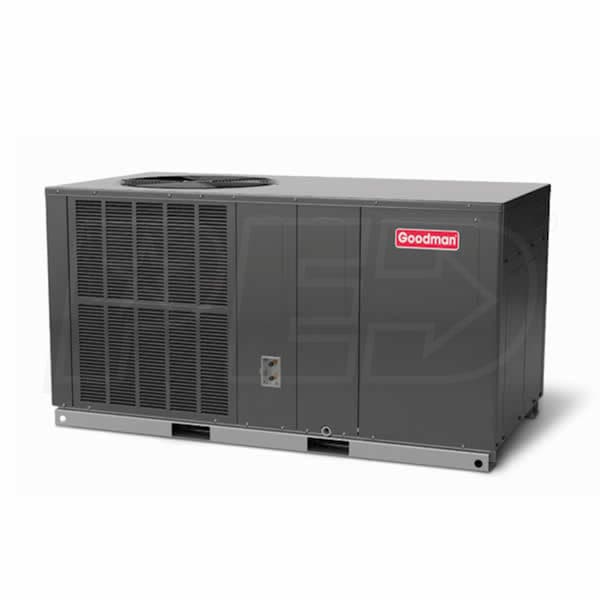

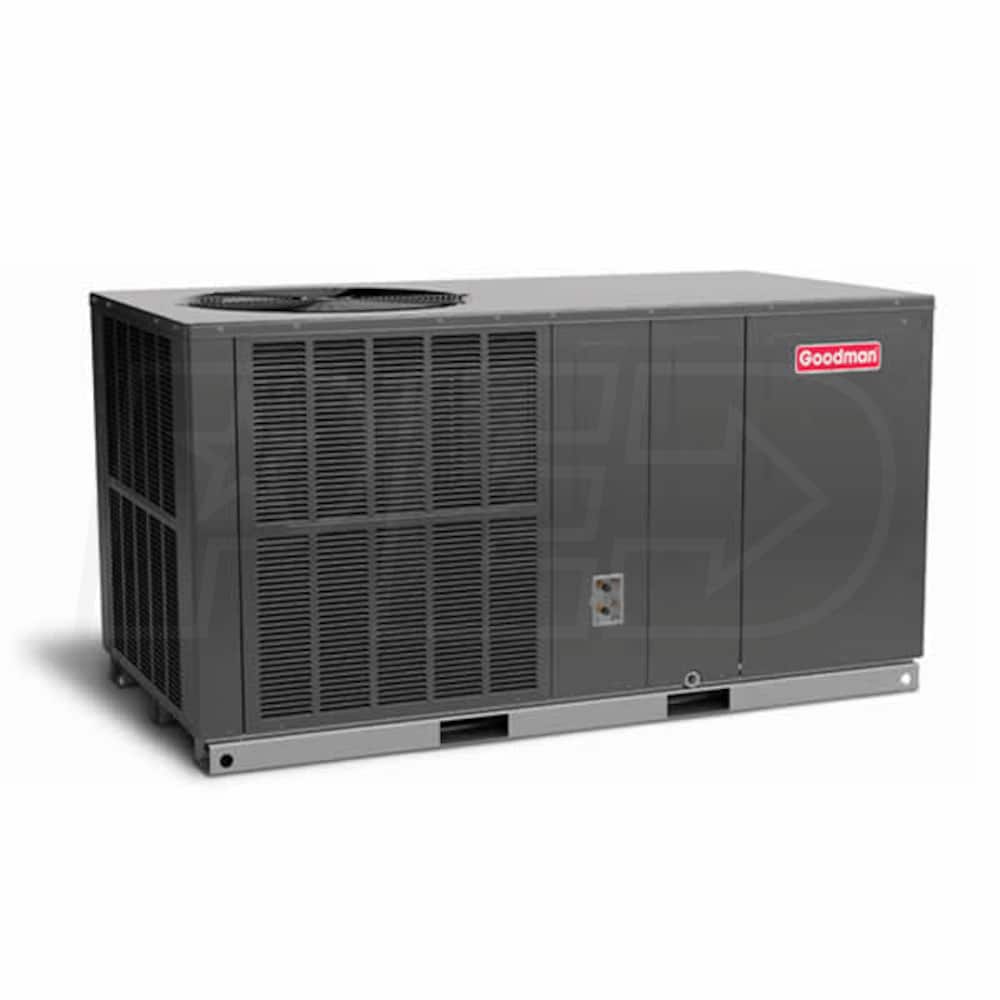

Goodman GPH16H - 5.0 Ton - Packaged Heat Pump System - 16.0 SEER - 8.0 HSPF - Horizontal

Goodman GPH16H - 5.0 Ton - Packaged Heat Pump System - 16.0 SEER - 8.0 HSPF - Horizontal
Model: GPH1660H41
$3,865.00
Factory-Direct
Ships in 7-14 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Free Lift Gate Service -
Orientation
Size (Tons)
Add-Ons

Free ShippingNo Sales Tax* (Except IL)$3,865.00Buy Now
No Sales Tax* (Except FL)$3,865.00Visit Site
Factory-Direct
Ships in 7-14 Business Days
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
  • Product Description
  • 1
    Reviews
  • 2
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    Goodman's packaged units are the perfect all-in-one comfort solution for nearly any residential or light commercial application. The GPH16H combines a Goodman heat pump, evaporator coil, and blower to provide efficient heating and cooling IN a single unit. A rotary compressor means less maintenance, and Goodman's superior coil design helps to ensure efficient energy use. The GPH16H even features convenient access panels that make installation and maintenance a breeze.
  • High-Efficiency Coils
  • The condenser coil of this packaged unit is designed with aluminum fins and rifled copper tubing to maximize surface area and efficiency. It also features a durable all-aluminum evaporator coil that optimizes heat transfer.
  • Secure Design
  • The cabinet of the GPH16H is built to last. A galvanized steel casing with a powder paint finish prevents fading and corrosion while louvered panels and a coil guard keep the most important components secure from damage.
  • Quiet Comfort
  • A sound insulated blower compartment and quiet horizontal discharge mean that the GPH16H provides comfort without disrupting your home.
  • EEM Blower
  • PSC blower motors are energy hogs. The EEM motor in the GPH16H reduces electrical consumption, ensuring efficient circulation.
  • Optional Electric Heat
  • With the GPH16H, you have the option to purchase an electric heat kit ranging from 5-20kw for field installation.
Specifications
General Information
Type
Heat Pump Packaged Unit
Product Line
GPH16H
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Refrigerant Type
R-410A
Speed Settings
Multi-Speed
Motor Type
EEM
Orientation Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Installation Location
Outdoor
Compressor Stages Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Dual
DOE Regional Compliance In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
UPC
663051532854
Performance
Tonnage Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
5.0 Tons
Nominal Heating Capacity
54500 BTU
Nominal Cooling Capacity
57500 BTU
SEER SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16.0
EER EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consitantly under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
13.0
HSPF HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
8.0
Minimum Air Flow
1233 CFM
Maximum Air Flow
1811 CFM
Maximum Sound Level Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
80 dB
Electrical Data
Voltage
208-230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
40 Amps
Recommended Breaker Size
60 Amps
Dimensions
Product Height
30 Inches
Product Width
66 Inches
Product Depth
34 Inches
Product Weight
405 Pounds
Shipping Weight
415 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
Certifications
ETL Listed
Yes
ISO Certified
Yes
Features
Features
    Goodman's packaged units are the perfect all-in-one comfort solution for nearly any residential or light commercial application. The GPH16H combines a Goodman heat pump, evaporator coil, and blower to provide efficient heating and cooling IN a single unit. A rotary compressor means less maintenance, and Goodman's superior coil design helps to ensure efficient energy use. The GPH16H even features convenient access panels that make installation and maintenance a breeze.
  • High-Efficiency Coils
  • The condenser coil of this packaged unit is designed with aluminum fins and rifled copper tubing to maximize surface area and efficiency. It also features a durable all-aluminum evaporator coil that optimizes heat transfer.
  • Secure Design
  • The cabinet of the GPH16H is built to last. A galvanized steel casing with a powder paint finish prevents fading and corrosion while louvered panels and a coil guard keep the most important components secure from damage.
  • Quiet Comfort
  • A sound insulated blower compartment and quiet horizontal discharge mean that the GPH16H provides comfort without disrupting your home.
  • EEM Blower
  • PSC blower motors are energy hogs. The EEM motor in the GPH16H reduces electrical consumption, ensuring efficient circulation.
  • Optional Electric Heat
  • With the GPH16H, you have the option to purchase an electric heat kit ranging from 5-20kw for field installation.
Specifications
General Information
Type
Heat Pump Packaged Unit
Product Line
GPH16H
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Refrigerant Type
R-410A
Speed Settings
Multi-Speed
Motor Type
EEM
Orientation Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Installation Location
Outdoor
Compressor Stages Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Dual
DOE Regional Compliance In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
UPC
663051532854
Performance
Tonnage Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
5.0 Tons
Nominal Heating Capacity
54500 BTU
Nominal Cooling Capacity
57500 BTU
SEER SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16.0
EER EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consitantly under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
13.0
HSPF HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
8.0
Minimum Air Flow
1233 CFM
Maximum Air Flow
1811 CFM
Maximum Sound Level Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
80 dB
Electrical Data
Voltage
208-230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
40 Amps
Recommended Breaker Size
60 Amps
Dimensions
Product Height
30 Inches
Product Width
66 Inches
Product Depth
34 Inches
Product Weight
405 Pounds
Shipping Weight
415 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
Certifications
ETL Listed
Yes
ISO Certified
Yes
Product Specs
+
Specifications
General Information
Type
Heat Pump Packaged Unit
Product Line
GPH16H
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Refrigerant Type
R-410A
Speed Settings
Multi-Speed
Motor Type
EEM
Orientation Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Installation Location
Outdoor
Compressor Stages Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Dual
DOE Regional Compliance In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
UPC
663051532854
Performance
Tonnage Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
5.0 Tons
Nominal Heating Capacity
54500 BTU
Nominal Cooling Capacity
57500 BTU
SEER SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16.0
EER EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consitantly under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
13.0
HSPF HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
8.0
Minimum Air Flow
1233 CFM
Maximum Air Flow
1811 CFM
Maximum Sound Level Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
80 dB
Electrical Data
Voltage
208-230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
40 Amps
Recommended Breaker Size
60 Amps
Dimensions
Product Height
30 Inches
Product Width
66 Inches
Product Depth
34 Inches
Product Weight
405 Pounds
Shipping Weight
415 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
Certifications
ETL Listed
Yes
ISO Certified
Yes
Reviews
(1)
+
Goodman GPH1660H41 Reviews & Ratings
Product Q&A
(2)
+
Does this unit come equipped with heat strip already?
Justin w.
from Maryland
July 29, 2016
Read Response +
Answer
This packaged system does not come with an electric heater, but it can operate in "heating mode" out of the box because it is a heat pump. Additionally, you can purchase a 5kw - 10kw heat kit to provide supplementary heat during cold weather. Please check the accessories tab for compatible models.
Hide Response -
Do these packaged units come charged with refrigerant?
Mike
from Florida
April 10, 2016
Read Response +
Answer
Yes, Goodman packaged units will come precharged with 410a refrigerant.
