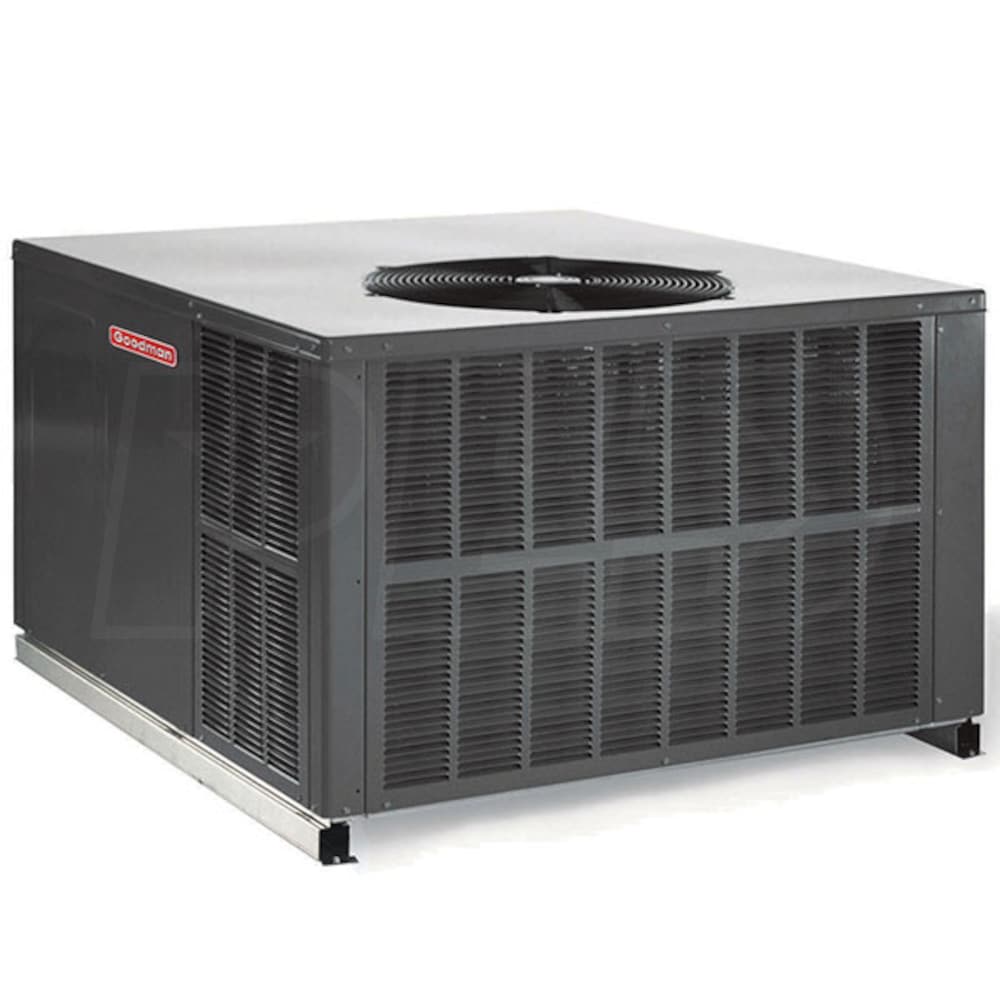

Goodman GPH14M - 3 Ton - Packaged Heat Pump System - 14 SEER - 8.0 HSPF - Downflow/Horizontal - 208-230/1/60
Goodman GPH14M - 3 Ton - Packaged Heat Pump System - 14 SEER - 8.0 HSPF - Downflow/Horizontal - 208-230/1/60
Model: GPH1436M41
Add to Cart for Price
Was $2,811.00
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

    Goodman's packaged units are the perfect all-in-one comfort solution for nearly any residential application. The GPH14M combines a Goodman heat pump, evaporator coil, and EMC blower to provide efficient heating and cooling from a single unit. A scroll compressor provides consistent refrigerant flow, and Goodman's superior coil design is featured to ensure high efficiency regardless of whether you're heating or cooling your home. The GPH1436M41 can be used in either downflow or horizontal airflow applications. It even features convenient access panels that make installation and maintenance a breeze. Streamline your comfort today with this Goodman packaged unit.
  • High-Efficiency Coils
  • The condenser coil of this packaged unit is designed with aluminum fins and rifled copper tubing to maximize surface area and efficiency. It also features a durable all-aluminum evaporator coil that optimizes heat transfer
  • Secure Design
  • The cabinet of the GPH1436M41 is built to last. A galvanized steel casing and UV-resistant powder paint prevent fading and corrosion. Louvered panels and a coil guard are employed to keep the most important components secure.
  • Filter Drier
  • A biflow filter drier is installed in the liquid line of this packaged unit's heat pump. The filter drier removes moisture and traps impurities, preventing corrosion, freezing, and blockages that can negatively impact the operation of the heat pump.
  • Quiet Comfort
  • A sound-insulated blower compartment means that the GPH1436M41 provides year-round comfort without disrupting your home.
  • Scroll Compressor
  • This unit utilizes a high-efficiency scroll compressor with an internal relief valve to provide refrigerant flow. Scroll compressors are renowned for operating more smoothly and reliably than traditional compressors.
  • Compressor Protection
  • Goodman installed a suction accumulator that collects excess liquid refrigerant in their GPG14M packaged units. This prevents refrigerant from flooding and damaging the compressor during operation.
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
  • Product Note
    The Goodman 20464501PDGK Horizontal Duct Cover Kit is required for downflow installation.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

GPH1436M41
specs product image PID-61883
General Information
Type
Heat Pump Packaged Unit
Operating Mode Learn More
Heating and Cooling
Refrigerant Type
R-410A
Blower Motor
Multi-Speed
Motor Type
ECM
Configuration Learn More
Downflow/Horizontal
Installation Location
Outdoor
Compressor Stages Learn More
Single
DOE Regional Compliance Learn More
Nationwide
Installation Available
Yes
UPC
663051524989
Performance
Capacity Learn More
3.0 Tons
Cooling Capacity
36000 BTU
Heating Capacity
33200 BTU
SEER Learn More
14.0
EER Learn More
11.0
Maximum Air Flow
1604 CFM
Minimum Air Flow
846 CFM
Maximum Sound Level Learn More
81 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
22 Amps
Recommended Breaker Size
40 Amps
Dimensions
Product Height
34 3/4 Inches
Product Width
47 Inches
Product Depth
51 Inches
Product Length
34 3/4 Inches
Product Weight
380 Pounds
Shipping Weight
400 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
UPC Listed
Yes
ISO Certified
Yes
AHRI Reference Number
7470161
Warranty Information
Parts Warranty Learn More
10 Limited Years
Compressor Warranty
Limited* 10 Years
