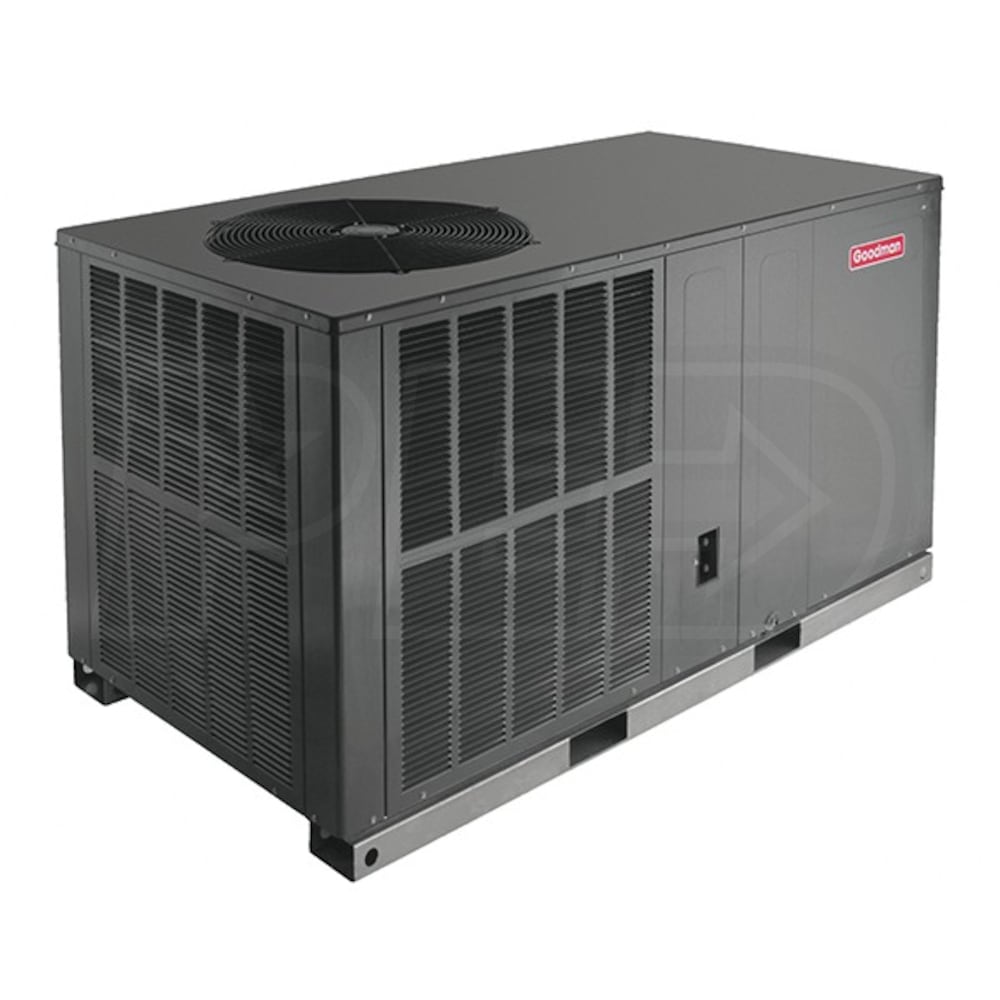

Goodman GPH14H - 3 Ton - Packaged Heat Pump System - 14 SEER - 8.0 HSPF - Horizontal - 208-230/1/60



Write a Review
Free Shipping
Lift Gate
  Learn More About Free Freight
Ships in 4-6 Weeks
synchrony card logo
$59 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Goodman GPH14H - 3 Ton - Packaged Heat Pump System - 14 SEER - 8.0 HSPF - Horizontal - 208-230/1/60
Goodman GPH14H - 3 Ton - Packaged Heat Pump System - 14 SEER - 8.0 HSPF - Horizontal - 208-230/1/60
Model: GPH1436H41
Product Q&A
How-To Articles

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Chris, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10


    Goodman's packaged units are the perfect all-in-one comfort solution for nearly any residential application. The GPH14H combines a Goodman heat pump, evaporator coil, and blower to provide efficient heating and cooling from a single unit. A scroll compressor provides consistent refrigerant flow, and Goodman's superior coil design is featured to ensure high efficiency regardless of whether you're heating or cooling your home. The GPH1436H41 even features convenient access panels that make installation and maintenance a breeze. Streamline your comfort today with this Goodman packaged unit.
  • High-Efficiency Coils
  • The condenser coil of this packaged unit is designed with aluminum fins and rifled copper tubing to maximize surface area and efficiency. It also features a durable all-aluminum evaporator coil that optimizes heat transfer
  • Secure Design
  • The cabinet of the GPH1436H41 is built to last. A galvanized steel casing and UV-resistant powder paint prevent fading and corrosion. Louvered panels and a coil guard are employed to keep the most important components secure.
  • Filter Drier
  • A biflow filter drier is installed in the liquid line of this packaged unit's heat pump. The filter drier removes moisture and traps impurities, preventing corrosion, freezing, and blockages that can negatively impact the operation of the heat pump.
  • Quiet Comfort
  • A sound insulated blower compartment means that the GPH1436H41 provides year-round comfort without disrupting your home.
  • Scroll Compressor
  • This unit utilizes a high-efficiency scroll compressor with an internal relief valve to provide refrigerant flow. Scroll compressors are renowned for operating more smoothly and reliably than traditional compressors.
  • EEM Blower
  • PSC blower motors are energy hogs. The EEM motor in the GPH1436H41 consumes less electricity, ensuring energy-efficient circulation.
  • Compressor Protection
  • Goodman installed a suction accumulator that collects excess liquid refrigerant in their GPG15 packaged units. This prevents refrigerant from flooding and damaging the compressor during operation.
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
California residents see
WARNING: Cancer and Reproductive Harm -
For more information go to:


specs product image PID-26259
General Information
Heat Pump Packaged Unit
Operating Mode Learn More
Heating and Cooling
Refrigerant Type
Blower Motor
Motor Type
Configuration Learn More
Installation Location
Compressor Stages Learn More
Single Stage
DOE Regional Compliance Learn More
Installation Available
Capacity Learn More
3.0 Tons
Cooling Capacity
36000 BTU
Heating Capacity
36000 BTU
SEER Learn More
EER Learn More
Maximum Air Flow
1577 CFM
Minimum Air Flow
1151 CFM
Maximum Sound Level Learn More
78 dB
Electrical Data
208/230 Volts
60 Hz
Minimum Circuit Ampacity
26 Amps
Recommended Breaker Size
40 Amps
Product Height
35 Inches
Product Width
34 Inches
Product Depth
66 1/4 Inches
Product Weight
375 Pounds
Shipping Weight
387 Pounds
ETL Listed
AHRI Certified
ISO Certified
Warranty Information
Parts Warranty Learn More
10 Limited Years
Compressor Warranty
Limited* 10 Years
