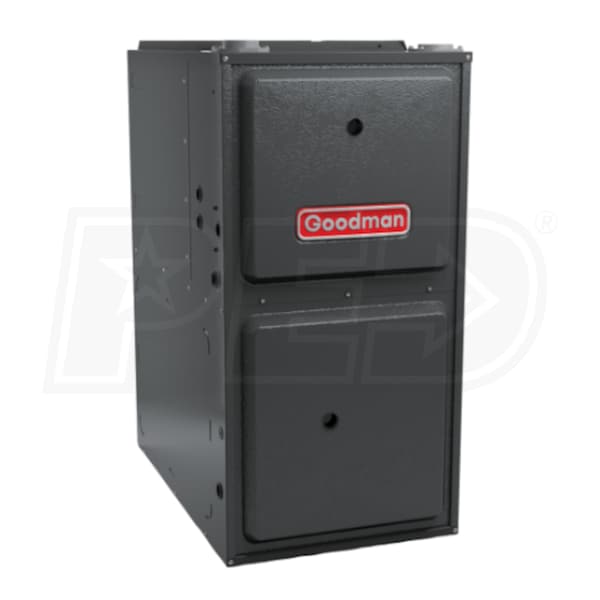

Goodman GMES96 - 60k BTU - Ultra Low NOx Gas Furnace - 96% AFUE

Model:

GMES960603BU

Write A Review
$2,237.00
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships in 1-2 Business Days
Shipping to60601
synchrony card logo
$373 / Month
Suggested monthly payments with 6 month financing.
Goodman GMES96 - 60k BTU - Ultra Low NOx Gas Furnace - 96% AFUE
Goodman GMES96 - 60k BTU - Ultra Low NOx Gas Furnace - 96% AFUE
Model: GMES960603BU
$2,237.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Goodman's GMES96-U furnaces feature high-quality construction and efficient operation at a great value. The GMES96-U multi-speed furnace uses a pair of steel heat exchangers to convert 96% of the energy used into comfort, Goodman's highest mark for a single-stage furnace. Instead of a standard multi-speed blower motor, the GMES96-U utilizes an ECM motor, which uses less power and provides smarter circulation. The value doesn't end at efficiency, the GMES96-U features many different connection options to reduce installation time and a self-diagnosing control board to expedite maintenance. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the GMES96-U.
  • Ultra Low NOx
  • California state law requires that every newly installed furnace emits less than 14 ng/J of NOx gases, a toxic byproduct of combustion. Goodman GMES96-U furnaces feature Ultra Low NOx emissions, conforming to this regulation.
  • Advanced Heat Exchanger Design
  • The GMES96-U furnace employs a reliable heavy-duty tubular heat exchanger design. Aluminized steel is used in construction for incredibly efficient heat transfer and wrinkle-bend technology for extraordinary durability.
  • Secondary Heat Exchanger
  • This furnace produces additional heat by directing combustion gases through a secondary heat exchanger before they are vented. The secondary heat exchanger is made of corrosion-resistant stainless steel and it is sloped to prevent condensate build-up.
  • Multi-Speed ECM Motor
  • The GMES96-U's energy efficient blower motor uses the lowest speed it can to deliver precise temperature control for your home while keeping utility bills to a minimum.
  • Quiet Comfort
  • Goodman takes great pride in producing equipment that doesn't disrupt your home. The blower and gas valve of the GMES96 were selected for their incredibly low sound levels.
  • Self-Diagnostic Control Board
  • The GMES96-U continuously monitors the system to ensure reliable operation, stores the last diagnostic codes in memory, and a flashing LED indicates condition for quick troubleshooting.
  • Secure Cabinet
  • All GMES96-U furnaces are protected by a durable steel cabinet rated for less than 2% air leakage. The heat exchanger section is lined with foil-insulation to prevent heat loss and the return side of the cabinet is solid and airtight.
  • Extended Warranty
  • Goodman offers a 10-year limited unit replacement and parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See the "Manuals" tab for more information.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

GMES960603BU
specs product image PID-102375
Overview
Product Category
Furnace
UPC
663051560079
General Information
Type
Gas Furnace
Product Line
GMES96-U
Product Category
Furnace
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Blower Motor Speed
ECM Multi-Speed
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Horizontal
Gas Conversion Kit
Available
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
California Only Product
Installation Available
Yes
Performance
AFUE Learn More
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
96 %
Heating BTU
60000
High Fire Input
60000 BTU
High Fire Output
57600 BTU
Maximum Air Flow
1200 CFM
Ultra Low NOx Emissions Learn More
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Low NOx Emissions Learn More
Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Low NOx appliances emit less than 40 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
10.8 Amps
Recommended Breaker Size
15 Amps
Dimensions
Flue Connection Size
2 or 3 Inches
Cabinet Width
17 1/2 Inches
Product Height
34 1/2 Inches
Product Width
17 1/2 Inches
Product Depth
28 7/8 Inches
Product Weight
120 Pounds
Shipping Weight
120 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
204271258
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
Heat Exchanger Warranty
Lifetime Years
