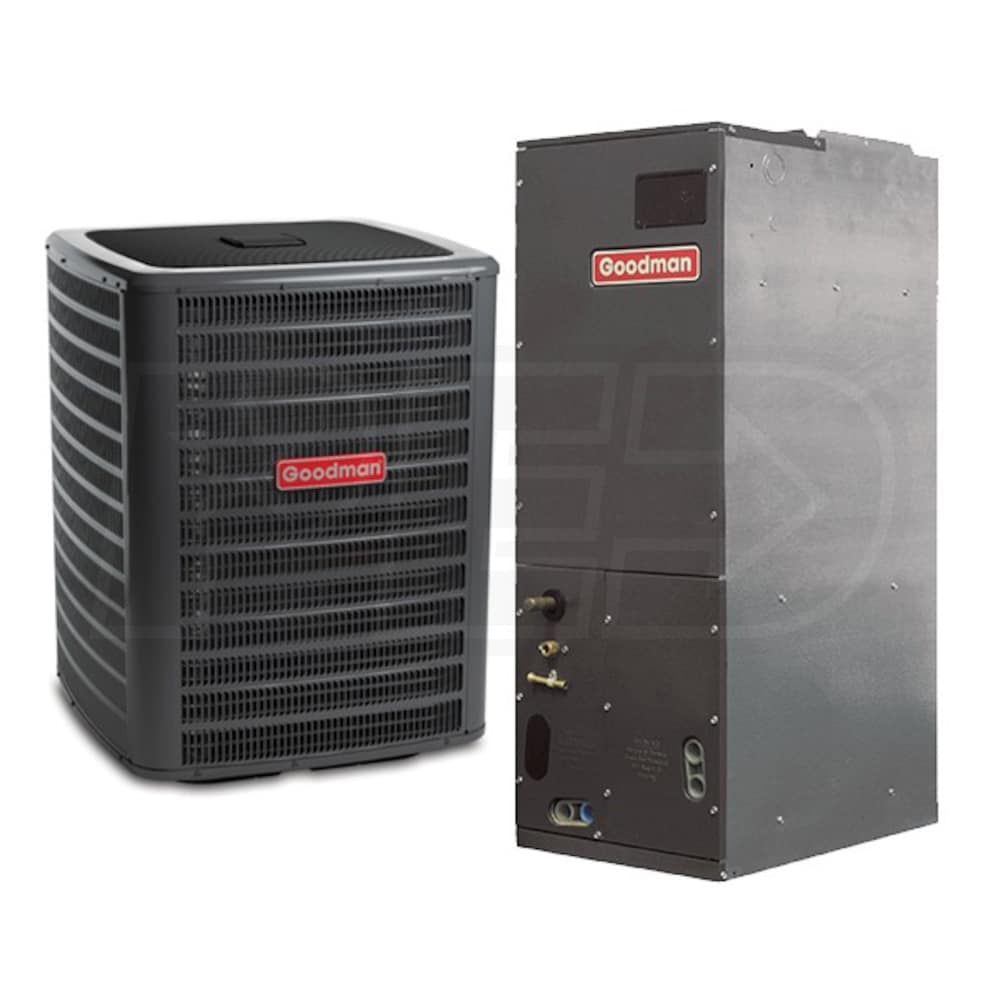

Goodman High Efficiency - 3 Ton Cooling - 34,400 BTU/Hr Heating - Heat Pump & Air Handler Package - 16 SEER - 9.2 HSPF - Multi-Position

Goodman High Efficiency - 3 Ton Cooling - 34,400 BTU/Hr Heating - Heat Pump & Air Handler Package - 16 SEER - 9.2 HSPF - Multi-Position
Model: GHP160034034M-3
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
Only 2 In-Stock
Ships Friday, Feb 23rd
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features

    A Goodman high efficiency central air package is the perfect way to upgrade your home's HVAC system. This pack contains a DSZC16 heat pump and an AVPTC air handler. Each of these components enjoy the impressive durability and easy accessibility for which Goodman is famous, but their energy efficiency is the real selling point. State-of-the-art design and technology make the GHP160034034M-3 an excellent addition to nearly any household looking to reduce their energy spending.

    Product Features

    Advanced Coil Design
    The coils of the DSZC160361 and AVPTC49D14 feature aluminum fins and grooved tubing. This design maximizes surface area and optimizes heat transfer for efficient comfort.

    UltraTech Compressor
    A two-stage Copeland UltraTech scroll compressor provides the DSZC160361 with incredibly reliable refrigerant flow. The second stage increases efficiency by allowing the compressor to operate at a lower capacity when your demand is low.

    Intelligent Circulation
    By scaling the airflow to the demands and challenges of your home, the advanced variable speed blower motor in the AVPTC provides ideal circulation in nearly any application while using less energy than traditional motors.

    Quiet Comfort
    Goodman takes great pride in providing comfort that doesn't disrupt your home. The wire fan discharge grille and condenser fan motor of the DSZC160361 were designed to reduce noise levels without compromising performance. This model also has a high-capacity discharge muffler and a high-density foam sound blanket, which curtail vibrational and compressor noise, respectively.

    SmartShift
    Goodman's SmartShift technology, combined with ambient and coil temperature sensors, gives the DSZC160361 heat pump a quiet and effective defrost system. SmartShift also helps to prevent short-cycling, increasing the efficiency of defrost operations.

    Dehumidification
    Goodman's air handlers make it easy to stay cool. The AVPTC is designed to remove moisture from the air, letting you feel cool at higher temperatures.

    SmartFrame
    This air handler features Goodman's SmartFrame sub-structure for enhanced accessibility. It provides tool-less access to the filter rack and includes a coil mounting track that improves installation speed for all four compatible orientations.

    Secure Cabinet
    Both components in this system possess a durable cabinet designed to improve the longevity of the system. Additionally, the AVPTC49D14's cabinet is reinforced to prevent air and sound leakage.

    Product Includes
    • (1) Goodman DSZC160361 Heat Pump
    • (1) Goodman AVPTC49D14 Air Handler
Specifications
General Information
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling and Heating
Orientation Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
DOE Regional Compliance In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Tonnage Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 Tons
SEER SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16.0
EER EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consitantly under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.5
HSPF HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
9.2
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
5933258
DSZC160361 Specifications
General Information
Type
Heat Pump
Product Line
DSZC16
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling and Heating
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Two
DOE Regional Compliance In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Tonnage Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 Tons
Nominal Heating Capacity
36000 BTU
Nominal Cooling Capacity
36000 BTU
Maximum Sound Level Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
73 dB
Nominal SEER SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Actual SEER may differ from Nominal SEER depending on the products used in a particular system.
16
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
20.3 Amps
Recommended Breaker Size
35 Amps
Dimensions
Product Height
38.25 Inches
Product Width
35.5 Inches
Product Depth
35.5 Inches
Product Weight
233 Pounds
Shipping Weight
255 Pounds
Liquid Valve Connection Size
0.375 Inches
Suction Valve Connection Size
0.875 Inches
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
5 Years
Certifications
Country of Origin
United States
Energy Star Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AVPTC49D14 Specifications
General Information
Product Line
AVPTC
Refrigerant Type
R-410A
Speed Settings
Variable Speed
Motor Type
ECM
Orientation Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
Electric Heat
Available
Performance
Tonnage Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.5 Tons
Nominal Cooling Capacity
42000 BTU
Minimum Air Flow
810 CFM
Maximum Air Flow
1530 CFM
Electrical Data
Voltage
208-230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
6.5 Amps
Recommended Breaker Size
15 Amps
Dimensions
Product Height
58 Inches
Product Width
24.5 Inches
Product Depth
21 Inches
Shipping Weight
167 Pounds
Liquid Valve Connection Size
0.375 Inches
Suction Valve Connection Size
0.875 Inches
Warranty Information
Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Certifications
Country of Origin
United States
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Features
Features

    A Goodman high efficiency central air package is the perfect way to upgrade your home's HVAC system. This pack contains a DSZC16 heat pump and an AVPTC air handler. Each of these components enjoy the impressive durability and easy accessibility for which Goodman is famous, but their energy efficiency is the real selling point. State-of-the-art design and technology make the GHP160034034M-3 an excellent addition to nearly any household looking to reduce their energy spending.

    Product Features

    Advanced Coil Design
    The coils of the DSZC160361 and AVPTC49D14 feature aluminum fins and grooved tubing. This design maximizes surface area and optimizes heat transfer for efficient comfort.

    UltraTech Compressor
    A two-stage Copeland UltraTech scroll compressor provides the DSZC160361 with incredibly reliable refrigerant flow. The second stage increases efficiency by allowing the compressor to operate at a lower capacity when your demand is low.

    Intelligent Circulation
    By scaling the airflow to the demands and challenges of your home, the advanced variable speed blower motor in the AVPTC provides ideal circulation in nearly any application while using less energy than traditional motors.

    Quiet Comfort
    Goodman takes great pride in providing comfort that doesn't disrupt your home. The wire fan discharge grille and condenser fan motor of the DSZC160361 were designed to reduce noise levels without compromising performance. This model also has a high-capacity discharge muffler and a high-density foam sound blanket, which curtail vibrational and compressor noise, respectively.

    SmartShift
    Goodman's SmartShift technology, combined with ambient and coil temperature sensors, gives the DSZC160361 heat pump a quiet and effective defrost system. SmartShift also helps to prevent short-cycling, increasing the efficiency of defrost operations.

    Dehumidification
    Goodman's air handlers make it easy to stay cool. The AVPTC is designed to remove moisture from the air, letting you feel cool at higher temperatures.

    SmartFrame
    This air handler features Goodman's SmartFrame sub-structure for enhanced accessibility. It provides tool-less access to the filter rack and includes a coil mounting track that improves installation speed for all four compatible orientations.

    Secure Cabinet
    Both components in this system possess a durable cabinet designed to improve the longevity of the system. Additionally, the AVPTC49D14's cabinet is reinforced to prevent air and sound leakage.

    Product Includes
    • (1) Goodman DSZC160361 Heat Pump
    • (1) Goodman AVPTC49D14 Air Handler
Specifications
General Information
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling and Heating
Orientation Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
DOE Regional Compliance In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Tonnage Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 Tons
SEER SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16.0
EER EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consitantly under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.5
HSPF HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
9.2
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
5933258
DSZC160361 Specifications
General Information
Type
Heat Pump
Product Line
DSZC16
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling and Heating
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Two
DOE Regional Compliance In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Tonnage Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 Tons
Nominal Heating Capacity
36000 BTU
Nominal Cooling Capacity
36000 BTU
Maximum Sound Level Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
73 dB
Nominal SEER SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Actual SEER may differ from Nominal SEER depending on the products used in a particular system.
16
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
20.3 Amps
Recommended Breaker Size
35 Amps
Dimensions
Product Height
38.25 Inches
Product Width
35.5 Inches
Product Depth
35.5 Inches
Product Weight
233 Pounds
Shipping Weight
255 Pounds
Liquid Valve Connection Size
0.375 Inches
Suction Valve Connection Size
0.875 Inches
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
5 Years
Certifications
Country of Origin
United States
Energy Star Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AVPTC49D14 Specifications
General Information
Product Line
AVPTC
Refrigerant Type
R-410A
Speed Settings
Variable Speed
Motor Type
ECM
Orientation Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
Electric Heat
Available
Performance
Tonnage Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.5 Tons
Nominal Cooling Capacity
42000 BTU
Minimum Air Flow
810 CFM
Maximum Air Flow
1530 CFM
Electrical Data
Voltage
208-230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
6.5 Amps
Recommended Breaker Size
15 Amps
Dimensions
Product Height
58 Inches
Product Width
24.5 Inches
Product Depth
21 Inches
Shipping Weight
167 Pounds
Liquid Valve Connection Size
0.375 Inches
Suction Valve Connection Size
0.875 Inches
Warranty Information
Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Certifications
Country of Origin
United States
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Product Specs
+
Specifications
General Information
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling and Heating
Orientation Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
DOE Regional Compliance In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Tonnage Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 Tons
SEER SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16.0
EER EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consitantly under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.5
HSPF HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
9.2
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
5933258
DSZC160361 Specifications
General Information
Type
Heat Pump
Product Line
DSZC16
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling and Heating
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Two
DOE Regional Compliance In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Tonnage Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 Tons
Nominal Heating Capacity
36000 BTU
Nominal Cooling Capacity
36000 BTU
Maximum Sound Level Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
73 dB
Nominal SEER SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Actual SEER may differ from Nominal SEER depending on the products used in a particular system.
16
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
20.3 Amps
Recommended Breaker Size
35 Amps
Dimensions
Product Height
38.25 Inches
Product Width
35.5 Inches
Product Depth
35.5 Inches
Product Weight
233 Pounds
Shipping Weight
255 Pounds
Liquid Valve Connection Size
0.375 Inches
Suction Valve Connection Size
0.875 Inches
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
5 Years
Certifications
Country of Origin
United States
Energy Star Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AVPTC49D14 Specifications
General Information
Product Line
AVPTC
Refrigerant Type
R-410A
Speed Settings
Variable Speed
Motor Type
ECM
Orientation Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
Electric Heat
Available
Performance
Tonnage Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.5 Tons
Nominal Cooling Capacity
42000 BTU
Minimum Air Flow
810 CFM
Maximum Air Flow
1530 CFM
Electrical Data
Voltage
208-230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
6.5 Amps
Recommended Breaker Size
15 Amps
Dimensions
Product Height
58 Inches
Product Width
24.5 Inches
Product Depth
21 Inches
Shipping Weight
167 Pounds
Liquid Valve Connection Size
0.375 Inches
Suction Valve Connection Size
0.875 Inches
Warranty Information
Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Certifications
Country of Origin
United States
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Reviews
+
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Product Q&A
+
Be the first to ask a question.
Recommended Accessories
+
Expert Recommended Accessories
How-To Articles
+
Manuals
+


×
Goodman High Efficiency - 3 Ton Cooling - 34,400 BTU/Hr Heating - Heat Pump & Air Handler Package - 16 SEER - 9.2 HSPF - Multi-Position
+
Reset View

Visit eComfort on Facebook
View the eComfort Twitter Profile Page
Follow eComfort on Pinterest
View eComfort YouTube Channel
View eComfort LinkedIn Company Profile
