Goodman Standard Efficiency - 2.5 Ton Cooling - 80,000 BTU Heating - Air Conditioner & Furnace Package - 13 SEER - 80% AFUE - Horiz.

Goodman Standard Efficiency - 2.5 Ton Cooling - 80,000 BTU Heating - Air Conditioner & Furnace Package - 13 SEER - 80% AFUE - Horiz.
Model: GFC138028080H-3
Product Discontinued
Sorry, this product is no longer available.
Cooling Capacity (Tons)
Furnace Capacity (BTU/h)
Orientation
Only 3 In-Stock
Ships Wednesday, Feb 21st
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to California, Nevada, Arizona, New Mexico, Texas, Oklahoma, Hawaii, Arkansas, Louisiana, Mississippi, Alabama, Georgia, Florida, Tennessee, South Carolina, North Carolina, Kentucky, Virginia, Maryland, Delaware, District of Columbia or any destination outside of the United States
  • Product Description
  • 2
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features

    A Goodman standard efficiency central air package is the perfect way to update your home's HVAC system. This pack contains a GSX13 air conditioner, a GMS8 furnace, and a cased evaporator coil. Each of these components is designed with a focus on ease-of-installation and durability to provide you with upfront and long-term value. If you're looking for a complete comfort solution backed by superior craftsmanship, the Goodman GFC138028080H-3 air conditioner and furnace package fits the bill perfectly.

    Product Features

    Advanced Coil Design
    The coils of the GSX130301 and CHPF2430B6 feature aluminum fins and grooved tubing. This design maximizes surface area and optimizes heat transfer for efficient comfort.

    Advanced Heat Exchanger Design
    The GMS8 furnace employs a reliable dual-diameter tubular heat exchanger design. Aluminized-steel is used in construction for incredibly efficient heat transfer, and a wrinkle-bend is applied to the tubes to enhance the heat exchanger's dependability and longevity.

    Quiet Comfort
    Goodman takes great pride in providing comfort that doesn't disrupt your home. The GSX130301 and the GMS80804BN feature components that reduce operational noise without compromising performance.

    Secure Cabinet
    All three components in this system possess a durable cabinet designed to improve the longevity of the system. Additionally, the GMS80804BN's cabinet is reinforced to prevent air and sound leakage.

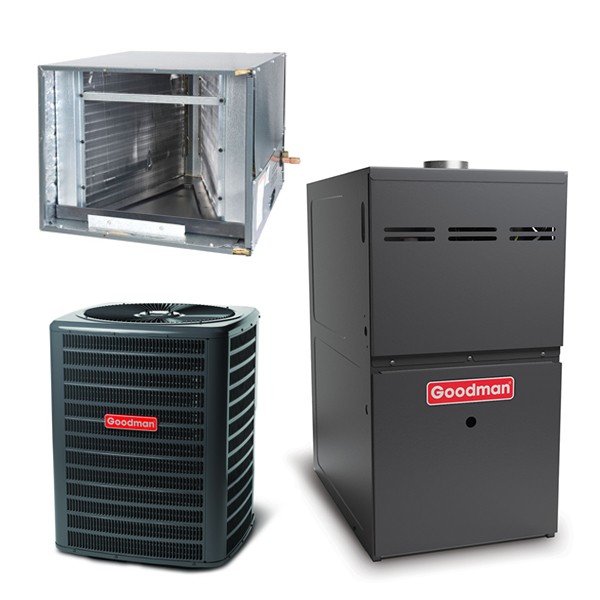

    Product Includes

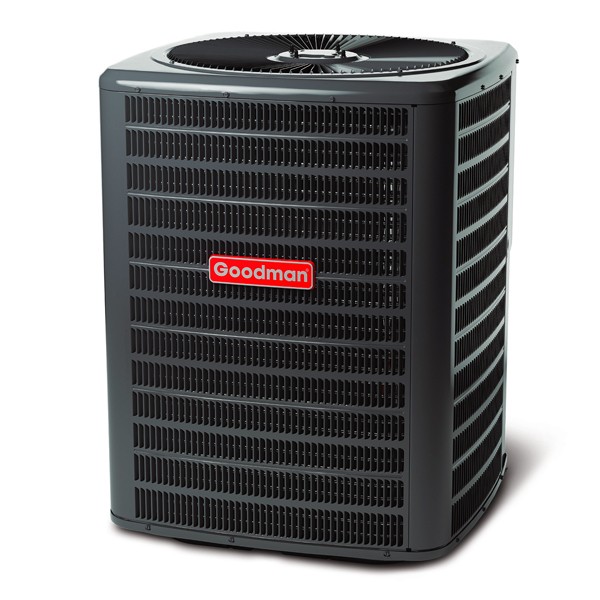

    • (1) Goodman GSX130301 Air Conditioner
    • (1) Goodman GMS80804BN Gas-Fired Furnace
    • (1) Goodman CHPF2430B6 Evaporator Coil
Specifications
General Information
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling and Heating
Orientation Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
DOE Regional Compliance In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
North
Performance
Cooling Capacity
28400 BTU
Nominal Heating Capacity
80000 BTU
SEER SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
13.0
EER EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consitantly under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
11.0
AFUE AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
80 %
Maximum Air Flow
1050 CFM
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
3299982
GSX130301 Specifications
General Information
Type
Outdoor Condenser
Product Line
GSX13
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single
DOE Regional Compliance In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
North
Performance
Tonnage Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.5 Tons
Nominal Cooling Capacity
30000 BTU
Maximum Sound Level Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
73 dB
Nominal SEER SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Actual SEER may differ from Nominal SEER depending on the products used in a particular system.
13.0
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
16.7 Amps
Recommended Breaker Size
25 Amps
Dimensions
Product Height
27.5 Inches
Product Width
26 Inches
Product Depth
26 Inches
Product Weight
115 Pounds
Shipping Weight
132 Pounds
Liquid Valve Connection Size
0.375 Inches
Suction Valve Connection Size
0.75 Inches
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
5 Years
Certifications
Country of Origin
United States
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
GMS80804BN Specifications
General Information
Type
Gas Furnace
Product Line
GMS8
Fuel Type To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
Modulating/Staging Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Blower Type Blower type describes the motor that powers the fan in the unit. PSC multi-speed is the standard motor that operates with pre-set fan speed levels. ECM multi-speed are more efficient but still operate with pre-set fan speeds. Finally, ECM variable-speed motors are also energy efficient and automatically adjust to changing system conditions.
PSC Multi-Speed
Orientation Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Horizontal
Gas Conversion Kit
Available
Performance
Nominal Heating Capacity
80000 BTU
High Fire Input
80000 BTU
High Fire Output
64000 BTU
AFUE AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
80 %
Maximum Air Flow
1600 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
12.5 Amps
Recommended Breaker Size
15 Amps
Dimensions
Flue Connection Size
4 Inches
Product Height
33.375 Inches
Product Width
17.5 Inches
Product Depth
28.75 Inches
Shipping Weight
106 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
20 Years
Certifications
Country of Origin
United States
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
5012601
CHPF2430B6 Specifications
General Information
Type
Evaporator Coil
Product Line
CHPF
Refrigerant Type
R-22 or R-410a
Casing
Cased
Shape
A Coil
Orientation Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Performance
Tonnage Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 - 2.5 Tons
Nominal Minimum Cooling Capacity
24000 BTU
Nominal Cooling Capacity
30000 BTU
Dimensions
Liquid Connection Size
0.375 Inches
Suction Connection Size
0.75 Inches
Product Height
17.5 Inches
Product Width
26 Inches
Product Depth
21.125 Inches
Shipping Weight
55 Pounds
Warranty Information
Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Certifications
ETL Listed
Yes
AHRI Certified
Yes
