Goodman GCES801005CN
Goodman GCES801005CN
Hover to zoom
1 Of 5

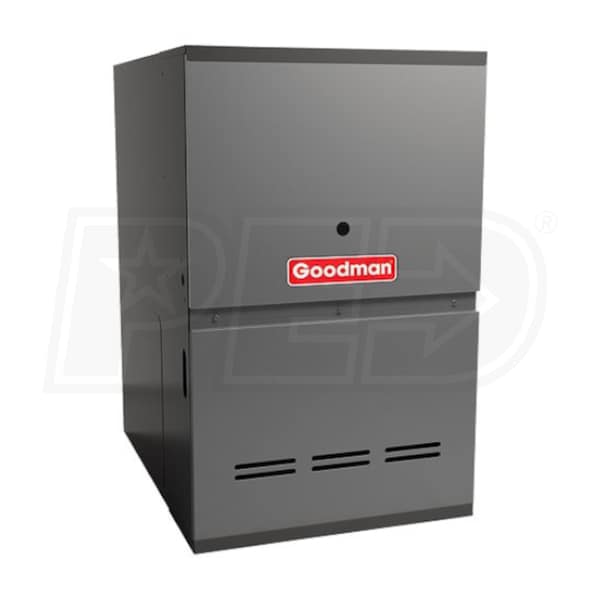

Goodman GCES80 - 100k BTU - Gas Furnace - 80% AFUE

Model:

GCES801005CN

Write a Review
$1,029.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Factory-Direct
Ships in 4-6 Weeks
synchrony card logo
$172 / Month
Suggested monthly payments with 6 month financing.
Goodman GCES80 - 100k BTU - Gas Furnace - 80% AFUE
Goodman GCES80 - 100k BTU - Gas Furnace - 80% AFUE
Model: GCES801005CN
$1,029.00
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

    Goodman's GCES80 furnaces feature high-quality construction and efficient operation at a great value. The GCES80 single-stage, multi-speed furnaces utilizes Goodman's superior heat exchanger design to provide efficient, reliable heating to your home. Instead of a standard multi-speed blower motor, the GCES80 utilizes an ECM motor, which uses less power and provides smarter circulation. The value doesn't end at efficiency, the GCES80 features many different connection options to reduce installation time and a self-diagnosing control board to expedite maintenance. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the GCES80.
  • Advanced Heat Exchanger Design
  • The GCES80 furnace employs a reliable dual-diameter tubular heat exchanger design. Aluminized steel is used for incredibly efficient heat transfer, and a wrinkle-bend is applied to the tubes to enhance the heat exchanger's dependability and longevity.
  • Multi-Speed ECM Motor
  • The GCES80's energy efficient blower motor uses the lowest speed it can to deliver precise temperature control for your home while keeping utility bills to a minimum.
  • Quiet Comfort
  • The blower and gas valve of the GCES80 were selected for their incredibly low sound levels. Additionally, this unit offers an airflow system and fan speed options that allow it to operate quietly while providing consistent comfort.
  • Secure Cabinet
  • All GCES80 furnaces are protected by a durable steel cabinet rated for less than 2% air leakage. The heat exchanger section is insulated to prevent heat loss and the return side of the cabinet is solid and airtight.
  • Self-Diagnostic Control Board
  • The GCES80 continuously monitors the system to ensure reliable operation, stores the last diagnostic codes in memory, and a flashing LED indicates condition for quick troubleshooting.
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

GCES801005CN
specs product image PID-100118
General Information
Type
Gas Furnace
Product Line
GCES80
Fuel Type Learn More
Natural Gas
Vent Type Learn More
Chimney Vent
Modulating/Staging Learn More
Single Stage
Blower Motor
ECM Multi-Speed
Configuration Learn More
Downflow/Horizontal
Gas Conversion Kit
Available
Installation Available
Yes
UPC
663051591202
Performance
AFUE Learn More
80 %
Heating BTU
100000
High Fire Input
100000 BTU
High Fire Output
80000 BTU
Maximum Air Flow
2000 CFM
Ultra Low NOx Emissions Learn More
No
Low NOx Emissions Learn More
No
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
15.3 Amps
Recommended Breaker Size
20 Amps
Dimensions
Flue Connection Size
4 Inches
Cabinet Width
21 Inches
Product Height
33 1/2 Inches
Product Width
21 Inches
Product Depth
28 Inches
Product Weight
115 Pounds
Shipping Weight
115 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
203401037
Warranty Information
Parts Warranty Learn More
10 Years
Heat Exchanger Warranty
Lifetime Years
