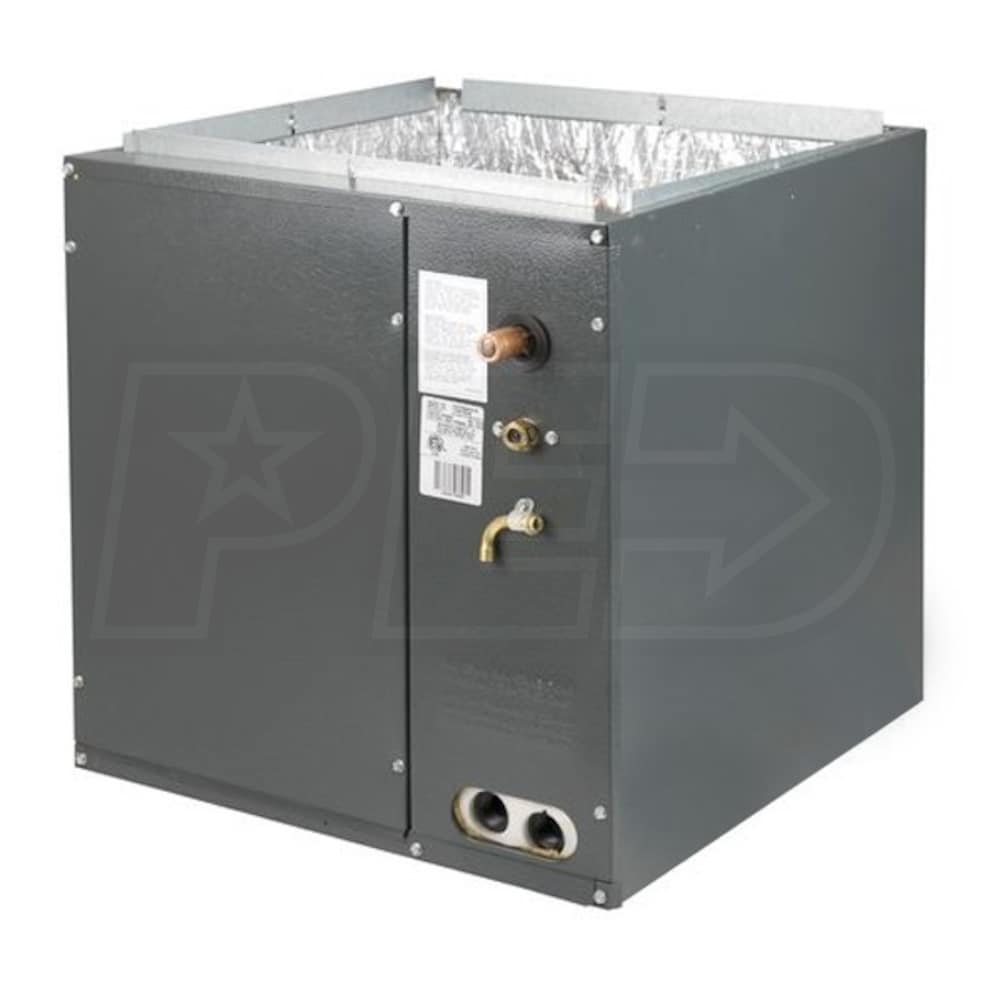

Goodman CAPT - 3-3.5 Ton - Upflow/Downflow A Coil - Cased - TXV Included - 24.5" Width
Model:
CAPT3743D4
+
Share This Product
Features
- All-Aluminum Coil
- Goodman's evaporator coils use a reliable all-aluminum design featuring sine fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
- Internal Thermostatic Expansion Valve
- The CAPT has a factory-installed internal thermostatic expansion valve. This streamlines installation and maintains ideal refrigerant flow for your system.
- Secure Cabinet
- A galvanized, embossed, and insulated cabinet protects this coil and prevents air leakage, providing superior longevity and efficiency.
- Condensate Management
- The CAPT features foil-faced insulation to inhibit the formation of condensate and a rust-resistant thermoplastic drain pan to capture what does form, keeping your system safe and operational.
- Extended Warranty
- Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
An air conditioner or heat pump is only as good as its evaporator coil. Luckily, Goodman designs their evaporator coils with the same mind for accessibility, longevity, and value as their other heating and cooling equipment. The CAPT3743D4 is a cased A coil for use in upflow or downflow applications. The all-aluminum construction and advanced design of this coil improve its durability and heat transfer efficiency. It also includes an internal TXV, making it perfect for high-performance systems. Whether you're replacing a failing coil or installing a new system, you can choose the CAPT with confidence. Goodman pressure tests each coil twice before it leaves the factory and backs them with an excellent warranty.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
CAPT3743D4
Overview
Product Category
Evaporator Coil
UPC
663051541061
General Information
Type
Evaporator Coil
Product Line
CAPT
Product Category
Evaporator Coil
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Downflow
Installation Available
Yes
TXV Installed
Yes
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 - 3.5 Tons
Cooling BTU
42000
Nominal Minimum Cooling Capacity
36000 BTU
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
24 1/2 Inches
Product Height
30 Inches
Product Width
24 1/2 Inches
Product Depth
21 Inches
Product Weight
75 Pounds
Shipping Weight
85 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Reviews
(12)
Goodman CAPT3743D4 Reviews & Ratings
Customer Photos and Videos
Customer Rating
4.75
(12 Ratings)
5
(9)
(9)4(3)
(3)3(0)
(0)2(0)
(0)1(0)
(0)
Evaporator coil fits my new furnace well
By Richard S.
Independence, Missouri
Purchased 04/07/2020 |
Review Posted 05/20/2020
Was exactly as expected
Richard S. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
All aluminum evap coil
By Robert H.
Laguna Niguel, California
Purchased 09/10/2019 |
Review Posted 11/23/2019
I waited some time for this coil to arrive but it was well worth it. I considered an Aspen coil but this is so much better quality. The coil fits the Goodman furnace perfectly.
The coil is precharged with a gas so you can verify there are no leaks when installing.
I selected the TXV version so I could get published system efficiency. I found the instructions to be accurate and useful.
I highly recommend this all aluminum coil because the copper aluminum coils have known corrosion issues that can lead to leaks.
During installation, I removed the coil from the enclosure by just sliding it out. This made it easier to lift the furnace with the coil enclosure attached into position.
The coil is precharged with a gas so you can verify there are no leaks when installing.
I selected the TXV version so I could get published system efficiency. I found the instructions to be accurate and useful.
I highly recommend this all aluminum coil because the copper aluminum coils have known corrosion issues that can lead to leaks.
During installation, I removed the coil from the enclosure by just sliding it out. This made it easier to lift the furnace with the coil enclosure attached into position.
Robert H. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
4/5
5/5
Cased Coil with TVX
By Claude B.
Sunderland, Maryland
Purchased 08/11/2019 |
Review Posted 10/16/2019
Mates well with gas furnace,
Claude B. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Couldn't be happier with my purchase. Had to replace entire HVAC
By Paul S.
Plainfield, Illinois
Purchased 08/26/2019 |
Review Posted 09/17/2019
If you’re in the Market for replacing your HVAC stop your price checks and review. EComfort made it easy to find what I needed and at a price that was very affordable. Great customer service and even better products! Shop with confidence
Paul S. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
This is the best product..........
By Marius R.
Wilmette, Illinois
Review Posted 09/03/2019
The exchange went very quickly. I can honestly recommend this product to Godman furnance..
Marius R. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Great price and fast shipping
By Ermias A.
Ypsilanti, Michigan
Purchased 07/02/2019 |
Review Posted 08/13/2019
The furnace and AC was delivered the next week for free and the guy was nice enough to put it in my garage
Ermias A. Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
5/5
Glad I found this at E Comfort!
By Joyce N.
Taylorsville, Kentucky
Purchased 08/20/2018 |
Review Posted 09/12/2018
My AC has been leaking for 8 of the 9 years I've owned my home. Until last year, no one could find the leak and the constant refills on coolant were pretty expensive. Finally, someone showed me the rusted, yucky version I had of this A coil and it set off their detector loud and clear. His cost for the part was nearly twice the cost of this so he recommended I purchase it online. It's now installed and the leak issue has been resolved. So glad I found this part at E Comfort!
Joyce N. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
That was great !!!!
By Jungsoo Y.
La Mirada, California
Purchased 08/02/2018 |
Review Posted 08/23/2018
That is so good. And works fine. If I need coil again, I'll buy that.
Jungsoo Y. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Super fast shipments. Great seller, this product came super qui
By Elizabeth R.
Toledo, Illinois
Purchased 07/10/2018 |
Review Posted 08/22/2018
Great product-super fast shipping. Definitely would buy again
Elizabeth R. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Initial Review
By D. M.
Phil, Pennsylvania
Purchased 07/09/2018 |
Review Posted 08/01/2018
Installation was straight-forward and easy. The position of the suction and liquid lines were not quite perpendicular to the housing which made brazing slightly more difficult. The initial pulldown of our overheated and humid house was fast, demonstrating strong performance of the matched system. The ongoing control has been quiet and consistent. We are very happy with how the system is performing.
D. M. Recommends This
Was this review helpful?
Rating Breakdown
4/5
3/5
5/5
5/5
