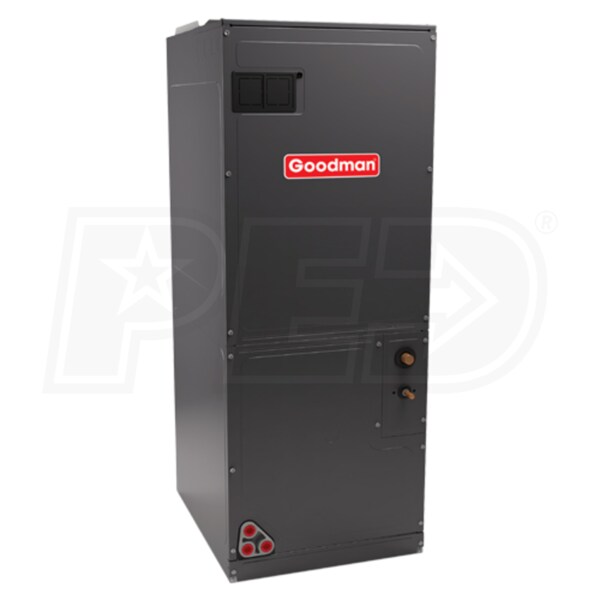

Goodman AVPTC - 4.0 Ton - Air Handler - Multi-Position - Variable Speed ECM Blower
Model:
AVPTC49C14
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Product Features
- Galvanized, leather grain-embossed finish
- Rigid SmartFrame™ cabinet
- Horizontal or vertical configuration capabilities
- All-aluminum evaporator coil
- Built-in compatibility with multi-stage heat pump and cooling applications
- Improved humidity and comfort control
- Provides adjustable low CFM for efficient fan-only operation
- Variable-speed ECM blower motor
- Internal factory-installed thermal expansion valves for cooling and heat pump applications
- Our SKU number(s): Goodman AVPTC49C14
- The manufacturer model number(s): Goodman AVPTC49C14
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
AVPTC49C14
Overview
Product Category
Air Handler
UPC
663051532342
General Information
Type
Air Handler
Product Line
AVPTC
Product Category
Air Handler
Refrigerant Type
R-410A
Blower Motor Type
Variable-Speed
Motor Type
ECM
Mount Type
Multi-Position
Installation Location
Indoor
Electric Heat
Available
Installation Available
Yes
TXV Installed
Yes
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
4.0 Tons
Cooling BTU
48000
Maximum Air Flow
1290 CFM
Minimum Air Flow
850 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
7 Amps
Recommended Breaker Size
15 Amps
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
21 Inches
Product Height
49 Inches
Product Width
21 Inches
Product Depth
21 Inches
Product Weight
103 Pounds
Shipping Weight
125 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Limited Years
