Goodman ASPT - 4 Ton - Air Handler - Multi-Position - ECM Motor (Scratch & Dent)

Model:

ASPT49D14-SD

Write A Review

Product Discontinued

Sorry, this product is no longer available.

Continue Shopping With These Categories

Shop All Air Handlers

Shop Goodman Air Handlers

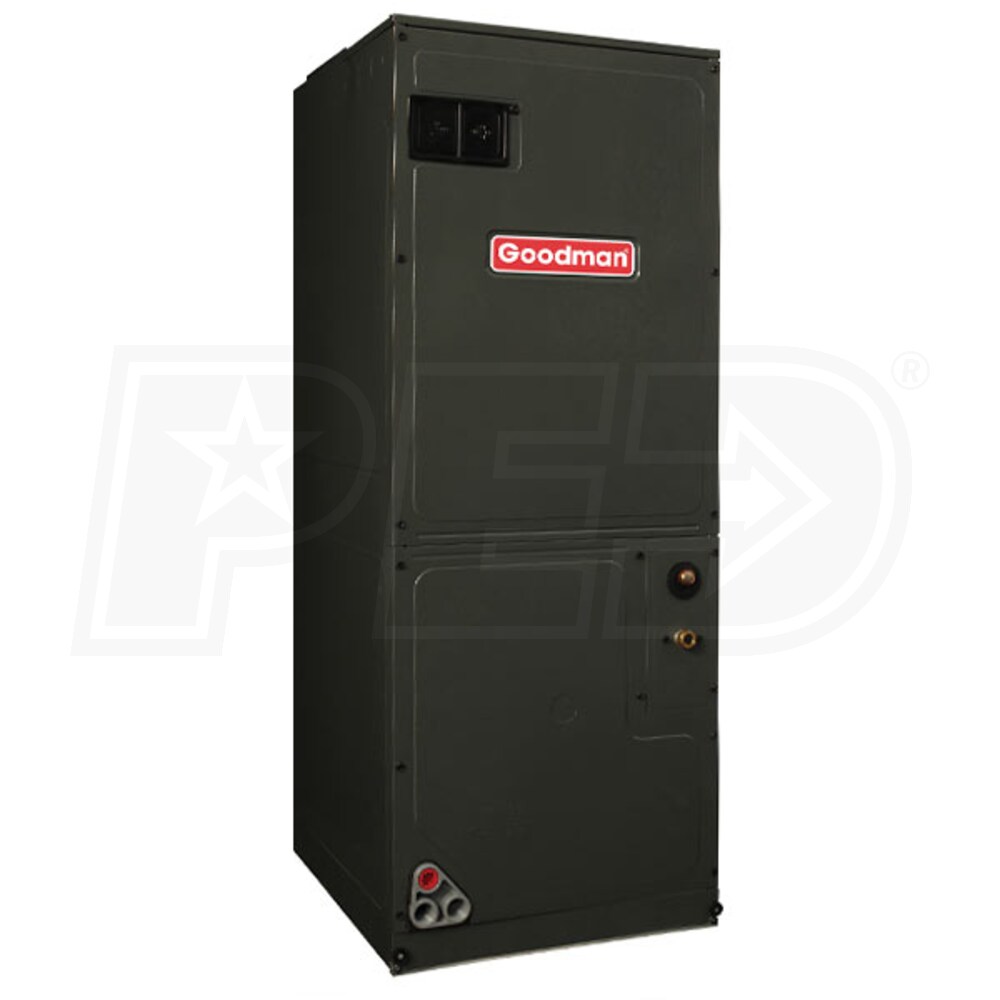

Goodman ASPT - 4 Ton - Air Handler - Multi-Position - ECM Motor (Scratch & Dent)

Model: ASPT49D14-SD

Was $1,251.00

Product Discontinued

Accessories

Features

Specifications

Reviews

How-To Articles

Manuals

Expert Recommended Accessories Selected by Chris, our Expert

Required Accessories 9

These accessories are required to properly setup/install this product.

Optional Accessories 10

Features

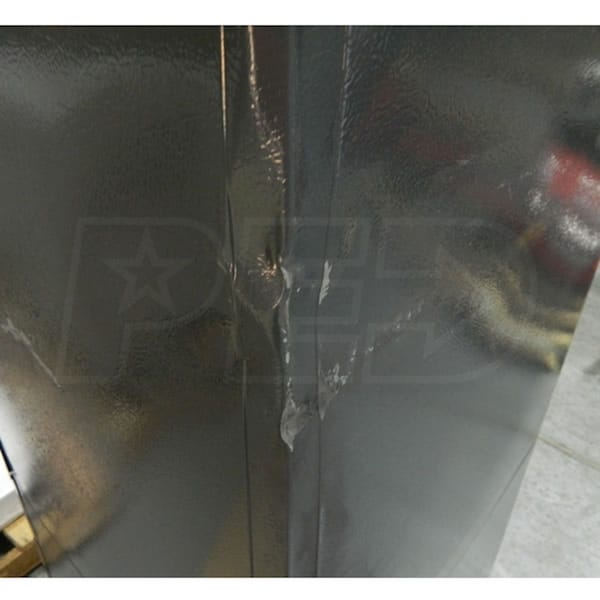

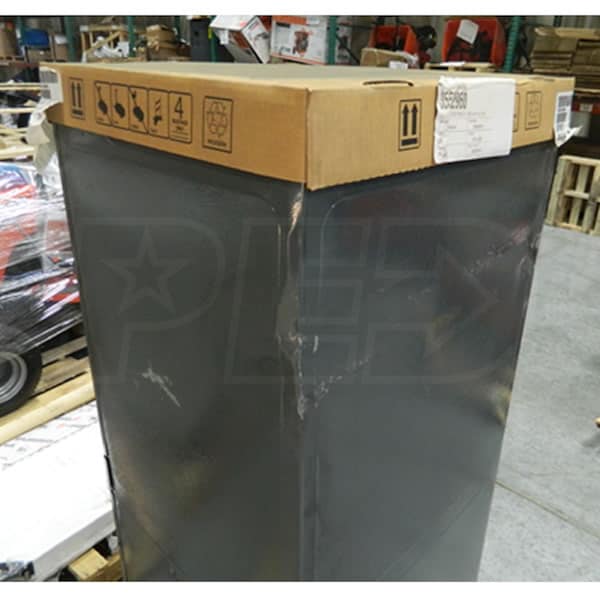

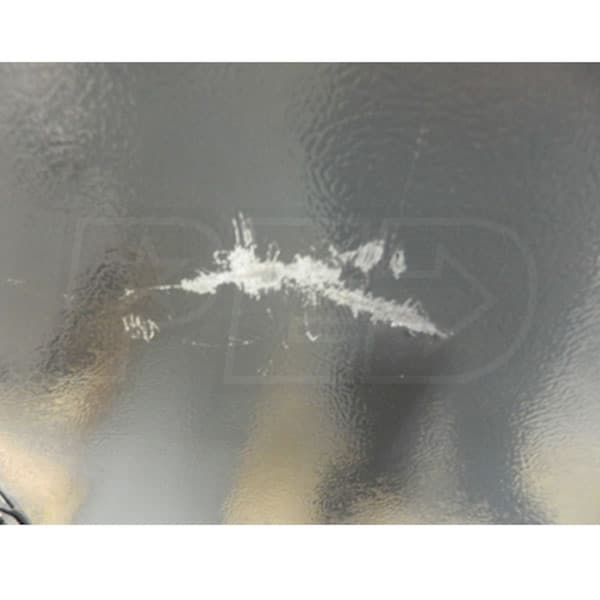

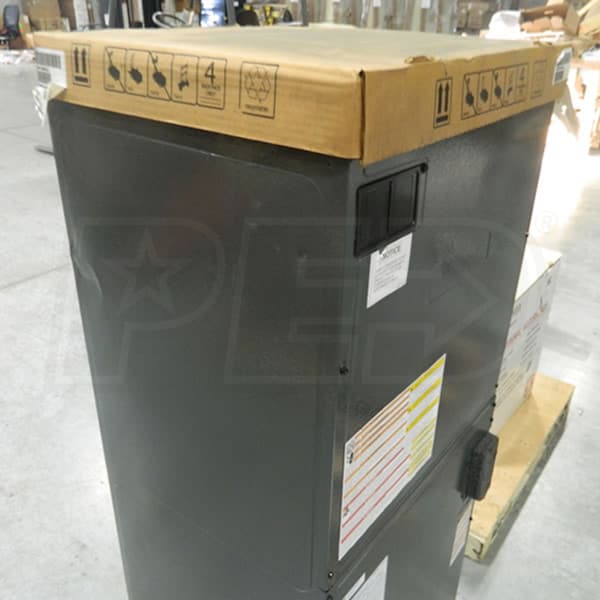

***Scratch & Dent*** All 4 sides have small dents and scratches. Cosmetic only and will not affect operation. The best air conditioner or heat pump in the world is all for naught if your home lacks proper airflow. That's where the Goodman ASPT air handler comes in. The ASPT is all about effective air distribution. It includes an all-aluminum evaporator coil and internal thermostatic expansion valve. These advanced components excel at ensuring that your home stays comfortable and your central system runs efficiently. The ECM fan motor is a huge step up from older models as it requires less electricity to operate and provides more consistent air circulation. The ASPT49D14 was designed and built with an emphasis on keeping the installation process short and the equipment's lifespan long to maximize the value for homeowners. If airflow issues are holding your central system back, invest in an ASPT air handler from Goodman.

All-Aluminum Coil
Goodman's evaporator coils use a reliable all-aluminum design featuring fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
Energy-Efficient Circulation
PSC blower motors are energy hogs. The ECM motor in the ASPT49D14 provides more efficient, more intelligent airflow for your home.
Dehumidification
Goodman's air handlers make it easy to stay cool. The ASPT is designed to remove moisture from the air, letting you feel cool at higher temperatures.
SmartFrame
This air handler features Goodman's SmartFrame sub-structure for enhanced accessibility. It provides tool-less access to the filter rack and includes a coil mounting track that improves installation speed for all four compatible orientations.
Secure Cabinet
This air handler enjoys reduced noise levels, less than 2% air leakage, and enhanced durability as a result of its insulated, embossed cabinet design.
Condensate Management
The ASPT's design includes molded diverters, foil-faced insulation, and screw-less construction of the cabinet's side and rear sections. These elements help prevent the formation of condensation and keep your system running smoothly.
Internal Thermostatic Expansion Valve
The ASPT Series Air Handler has a factory-installed internal thermostatic expansion valve. This streamlines installation and maintains ideal refrigerant flow for your system.

California residents see

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

For more information go to: www.p65Warnings.ca.gov

Specifications

ASPT49D14-SD

General Information

Type

Air Handler

Product Line

ASPT

Refrigerant Type

R-410A

Blower Motor Speed

Multi-Speed

Motor Type

ECM

Configuration

Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.

Multi-Position

Electric Heat

Available

Installation Available

UPC

663051515284

Performance

Capacity

Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.

4.0 Tons

Nominal Cooling Capacity

48000 BTU

Maximum Air Flow

2215 CFM

Minimum Air Flow

930 CFM

Electrical Data

Voltage

208/230 Volts

Phase

Frequency

60 Hz

Minimum Circuit Ampacity

8.6 Amps

Recommended Breaker Size

15 Amps

Dimensions

Suction Connection Size

7/8 Inch

Liquid Connection Size

3/8 Inch

Product Height

53 7/16 Inches

Product Width

24 1/2 Inches

Product Depth

21 Inches

Shipping Weight

167 Pounds

Certifications

Country of Origin

United States

ETL Listed

Yes

AHRI Certified

Yes

Warranty Information

Warranty

A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More

5 Years
