Features
- Direct drive, multi-speed ECM blower motor
- All-aluminum evaporator coil
- Coil mounting track for quick repositioning
- Optimized for use with R-410A refrigerant
- Rigid SmartFrame cabinet
- Horizontal or vertical configuration capabilities
- 21 inch depth for easier attic access
- Internal Thermostatic Expansion Valve
- The ASPT Series Air Handler has a factory-installed internal thermostatic expansion valve. This streamlines installation and maintains ideal refrigerant flow for your system.

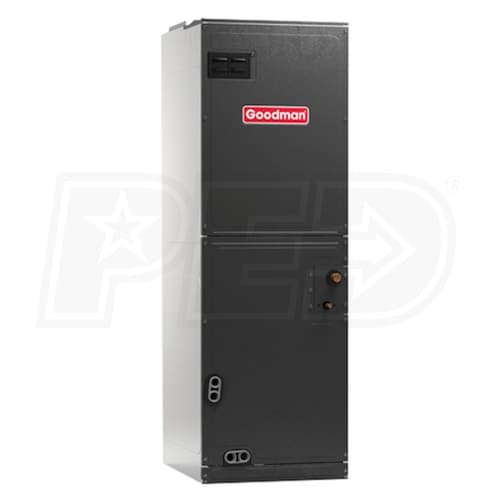

Overview for Goodman ASPT35B14 Air Conditioner Air Handler with Smart Frame Cabinet The Goodman brand of heating and cooling systems are manufactured to provide comfortable, affordable and energy efficient indoor solutions using the latest technology. But the company ultimately cohere to some original values, too. That’s why Goodman brand heating and cooling systems are designed, engineered and assembled in the United States.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
ASPT35B14
Overview
Product Category
Air Handler
UPC
ASPT35B14
Additional Model Numbers
ASPT35B14, ASPT35B14
General Information
Type
Air Handler
Product Line
ASPT
Product Category
Air Handler
Refrigerant Type
R-410A
Blower Motor Speed
Multi-Speed
Motor Type
EEM
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
Installation Location
Indoor
Installation Available
Yes
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.5 Tons
Nominal Cooling Capacity
28000 BTU
Maximum Air Flow
1310 CFM
Minimum Air Flow
875 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
6 Amps
Recommended Breaker Size
15 Amps
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
45 Inches
Product Width
17 1/2 Inches
Product Depth
21 Inches
Product Weight
105 Pounds
Shipping Weight
129 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Limited Years
