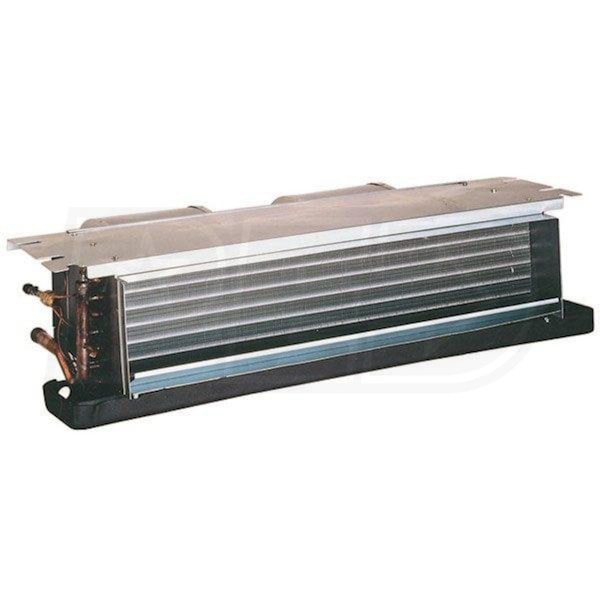

Goodman ACNF - 2 Ton - 9.8 kw Electric Heat - Air Handler - Ceiling-Mount Orientation - 208-230/1/60 - PSC Motor

Goodman ACNF - 2 Ton - 9.8 kw Electric Heat - Air Handler - Ceiling-Mount Orientation - 208-230/1/60 - PSC Motor
Model: ACNF241016
$466.00
Ships in 2-3 Weeks
Free Shipping
Free Lift Gate Service -
Size (Tons) Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
Electric Heat
Add-Ons

Ships in 2-3 Weeks
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    Goodman air handlers are an integral part of finishing a total home environment control system. The ACNF plays a key role in reducing indoor humidity, creating a much more comfortable environment. In addition, the ACNF241016 works with the multi-speed PSC motor to efficiently move cooled or warmed air throughout your home at exactly the speed you need.
  • Galvanized-Steel Cabinet
  • Galvanized-steel cabinets are corrosion resistant, requiring less maintenance to remain at peak efficiency.
  • Easy Installation
  • The ACNF Air Handler can be installed vertically on the wall or on the stud, giving you the freedom to pick between whichever fits your needs best.
Specifications
General Information
Product Line
ACNF
Refrigerant Type
R-22/R-410A
Speed Settings
Multi-Speed
Motor Type
PSC
Orientation Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Ceiling-Mount
Electric Heat
Included
UPC
663051453388
Performance
Tonnage Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 Tons
Nominal Cooling Capacity
24000 BTU
Electric Heat Capacity
9.8 kW
Minimum Air Flow
840 CFM
Maximum Air Flow
880 CFM
Electrical Data
Voltage
208-230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
47.8 Amps
Recommended Breaker Size
50 Amps
Dimensions
Product Height
10 Inches
Product Width
43.25 Inches
Product Depth
11.375 Inches
Shipping Weight
69 Pounds
Liquid Valve Connection Size
0.375 Inches
Suction Valve Connection Size
0.75 Inches
Certifications
Country of Origin
United States
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
Features
Features
    Goodman air handlers are an integral part of finishing a total home environment control system. The ACNF plays a key role in reducing indoor humidity, creating a much more comfortable environment. In addition, the ACNF241016 works with the multi-speed PSC motor to efficiently move cooled or warmed air throughout your home at exactly the speed you need.
  • Galvanized-Steel Cabinet
  • Galvanized-steel cabinets are corrosion resistant, requiring less maintenance to remain at peak efficiency.
  • Easy Installation
  • The ACNF Air Handler can be installed vertically on the wall or on the stud, giving you the freedom to pick between whichever fits your needs best.
Specifications
General Information
Product Line
ACNF
Refrigerant Type
R-22/R-410A
Speed Settings
Multi-Speed
Motor Type
PSC
Orientation Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Ceiling-Mount
Electric Heat
Included
UPC
663051453388
Performance
Tonnage Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 Tons
Nominal Cooling Capacity
24000 BTU
Electric Heat Capacity
9.8 kW
Minimum Air Flow
840 CFM
Maximum Air Flow
880 CFM
Electrical Data
Voltage
208-230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
47.8 Amps
Recommended Breaker Size
50 Amps
Dimensions
Product Height
10 Inches
Product Width
43.25 Inches
Product Depth
11.375 Inches
Shipping Weight
69 Pounds
Liquid Valve Connection Size
0.375 Inches
Suction Valve Connection Size
0.75 Inches
Certifications
Country of Origin
United States
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
Product Specs
+
Specifications
General Information
Product Line
ACNF
Refrigerant Type
R-22/R-410A
Speed Settings
Multi-Speed
Motor Type
PSC
Orientation Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Ceiling-Mount
Electric Heat
Included
UPC
663051453388
Performance
Tonnage Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 Tons
Nominal Cooling Capacity
24000 BTU
Electric Heat Capacity
9.8 kW
Minimum Air Flow
840 CFM
Maximum Air Flow
880 CFM
Electrical Data
Voltage
208-230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
47.8 Amps
Recommended Breaker Size
50 Amps
Dimensions
Product Height
10 Inches
Product Width
43.25 Inches
Product Depth
11.375 Inches
Shipping Weight
69 Pounds
Liquid Valve Connection Size
0.375 Inches
Suction Valve Connection Size
0.75 Inches
Certifications
Country of Origin
United States
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
