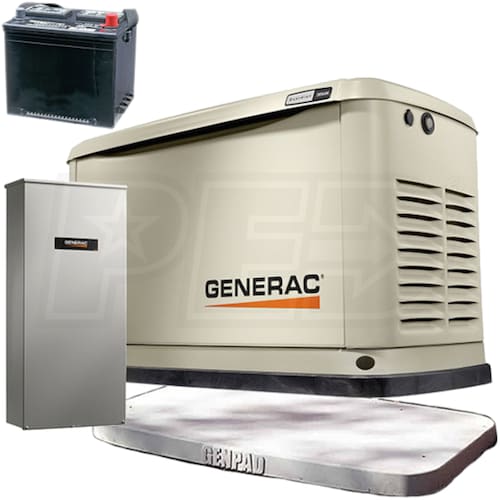

Generac Guardian® 10kW Aluminum Standby Generator System (100A ATS w/ 16-Circuit Load Center) w/ Wi-Fi + 3" GenPad™ + Battery
Model:
EGD-7172KIT
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Optional Accessories
9
Model: 7027
$83.99
$164.99
In-Stock
$141.99
Only 1 In-Stock
$155.99
In-Stock
$22.99
Only 4 In-Stock
Model: 6664
$239.99
In-Stock
Model: EGD-GENCWKIT
$460.99
Only 1 In-Stock
Model: 0J5141
$109.99
In-Stock
$327.99
Features
Generac Guardian® 10kW Aluminum Standby Generator System (100A ATS w/ 16-Circuit Load Center) w/ Wi-Fi + 3" GenPad™ + Battery
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- 10kW (LPG) / 9kW (NG) Air-Cooled Standby Generator Pakcage
- Protects your home and family during a power outage
- Includes Mobile Link™ Wi-Fi Remote Monitoring*
- Monitor generator status on a smart phone, tablet or PC
- *Requires internet connection and wireless router
- 5-Year Limited Warranty
- Plus 24/7-365 Customer Support
- Have your questions answered when it's convenient for you
- 100-Amp Automatic Transfer Switch w/ Integrated Load Center
- NEMA 3R Outdoor Aluminum enclosure
- Great when main breaker panel is located outdoors
- 16-Circuit Essential Circuit Load Center
- For large main service & only partial generator backup
- Allows you to backup 120V & 240V circuits
- Compatible w/ 1" standard, tandem, GFCI & AFCI breakers
- New 460cc Generac G-Force Engine
- Specifically designed for the demanding standby environment
- Full pressure lubrication system w/ 2 year oil change interval
- Operates On Clean Burning, Efficient Natural Gas or LP (Vapor)
- Connects to your existing LP or natural gas fuel supply
- TRUE POWER™ Electrical Technology
- Less than 5% Total Harmonic Distortion (THD) for utility grade power
- Automatic Digital Voltage Regulation (+/-1%)
- Allows for faster response time & maximum motor starting ability
- Evolution™ 2.0 Digital Controller
- Multilingual, 2-Line LCD display for simple, straightforward operation
- Programmable-exerciser helps prevent oil seal drying and damage
- QUIET-TEST™ Self-Test Mode
- Runs at a lower RPM for a five or twelve minute test
- Aluminum Enclosure w/ RhinoCoatâ„¢ Powder-Coated Finish
- Corrosion resistant design for all weather conditions
- Installation Flexibility*
- Can be installed within 18" of a building
- *Always check local building codes
- Generac Standby Generators & Engines - Built In The USA*
- Built in the USA using domestic & foreign parts
- Also Includes
- Smart battery charger & 14" Flexible fuel line connector
- GenPad™ Standard 3" Composite Cement Pad & Battery
- Automatic Transfer Switch Model # RXG16EZA3
Due to an ongoing global shortage and inconsistent supply of microprocessor chips, Generac is manufacturing generators without the component that enables it to connect to a Wi-Fi network. Generac will be shipping the Wi-Fi component along with instructions for simple, do-it-yourself installation as soon as possible (the current estimate is within the next 6 months). Please note that generators are fully operational without this Wi-Fi component, and backup power will not be compromised.
Product Includes
Specifications
Product Includes
EGD-7172KIT
Overview
Weight
335 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
10000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
9000 Watts
LP Power Capacity
10000 Watts
NG Fuel Consumption @ 50% Load
101 ft³/hr
NG Fuel Consumption @ 100% Load
127 ft³/hr
LP Fuel Consumption @ 50% Load
.97 gallons/hr
LP Fuel Consumption @ 100% Load
1.48 gallons/hr
Rated Amps
41.7 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
61
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
100-Amps
Max Circuits
16
Battery
Included
Enclosure
Aluminum
Circuit Breaker Size
45 Amps
Mounting Pad
Composite (Included)
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
2 Poles
ATS Service Disconnect
No
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Yes
Engine
Engine Brand
Generac OHVI
Starting System
12v Auto Start
CC
460 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
7172
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
335 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
Installation Available
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
10000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
9000 Watts
LP Power Capacity
10000 Watts
NG Fuel Consumption @ 50% Load
101 ft³/hr
NG Fuel Consumption @ 100% Load
127 ft³/hr
LP Fuel Consumption @ 50% Load
.97 gallons/hr
LP Fuel Consumption @ 100% Load
1.48 gallons/hr
Rated Amps
41.7 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
61
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
100-Amps
Max Circuits
16
Battery
Not Included
Enclosure
Aluminum
Circuit Breaker Size
45 Amps
Mounting Pad
Composite (Included)
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
2 Poles
ATS Service Disconnect
No
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Yes
Engine
Engine Brand
Generac OHVI
Starting System
12v Auto Start
CC
460 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
10000007852
General Information
Product Category
Generator Accessories
Overview
Product Category
Generator Accessories
Weight
189 Pounds
Product Length
54 Inches
Product Width
31 Inches
Product Height
3 Inches
5819
Overview
Weight
30 Pounds
Product Length
8.7 Inches
Product Width
6.8 Inches
Product Height
7.6 Inches
Product Specs
Frequency
60 Hertz
Reviews
(1)
Generac Guardian EGD-7172KIT Reviews & Ratings
Transfer Panel And Generator
By Richard L.
Hull, Massachusetts
Purchased 09/02/2020 |
Review Posted 11/13/2020
The generator was commissioned with out issue, excellent!
One area that you should consider is the transfer switch is not designed for neutral buss stab in accommodating arc fault and GFI circuit breakers. I had to purchase 8 very expensive circuit breakers at $65 for single pole and $125 for two pole. The use of these breakers are in the NEC . I could not use the stab in breakers from the installed main panel.
Had I know this I would not have purchased the transfer switch as part of this package.
One area that you should consider is the transfer switch is not designed for neutral buss stab in accommodating arc fault and GFI circuit breakers. I had to purchase 8 very expensive circuit breakers at $65 for single pole and $125 for two pole. The use of these breakers are in the NEC . I could not use the stab in breakers from the installed main panel.
Had I know this I would not have purchased the transfer switch as part of this package.
Richard L. Recommends This
Was this review helpful?
Manufacturer Response
Thank you for taking time out of your day to provide us with your valuable feedback. If you run into any questions, please give us a call at 888-436-3722!
Rating Breakdown
4/5
5/5
5/5
4/5
Pros:
Durable, Quiet, Id Buy It Again, Delivery was efficient
Cons:
Transfer panel not compatible with plug in arc fault and GFII
