GE Mini Splits ASH124PRDWA
GE Mini Splits ASH124PRDWA
Hover to zoom
1 of 1

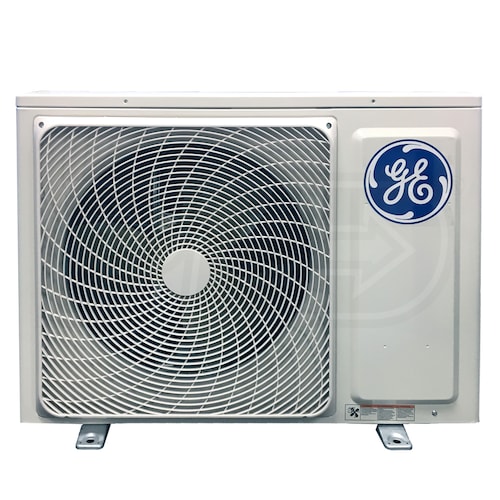

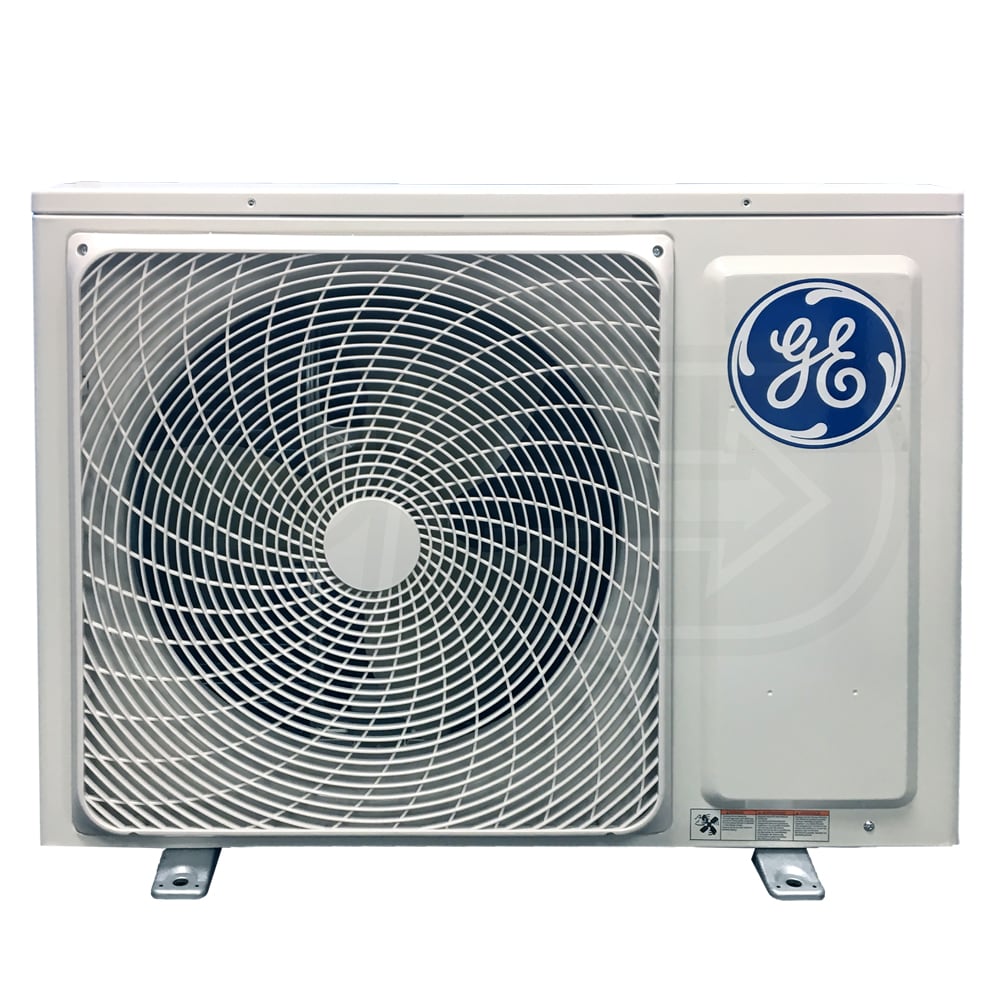

GE - 24k BTU - Altitude Series Outdoor Condenser - Single Zone Only

Model:

ASH124PRDWA

Write A Review
Discontinued
Try this product instead
GE - 24k BTU - Altitude Series Outdoor Condenser - Single Zone Only
GE - 24k BTU - Altitude Series Outdoor Condenser - Single Zone Only
Model: ASH124PRDWA
Not For Individual Sale
Specifications
Reviews
How-To Articles
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

ASH124PRDWA
specs product image PID-107112
General Information
Type
Condenser
Product Line
Altitude Series
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Inverter Driven Rotary
Performance
Cooling BTU
24000
Cooling Capacity
22000 BTU
Heating Capacity
28000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
20
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.5
HSPF Learn More
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
10
Cooling Power Input
1760 Watts
Heating Power Input
2630 Watts
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
57 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-15 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
20 Amps
Recommended Breaker Size
30 Amps
Dimensions
Maximum Line Length
83 Feet
Gas Connection Size
1/2 Inch
Suction Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
30 Inches
Product Width
36 1/4 Inches
Product Depth
15 1/8 Inches
Product Weight
130 Pounds
Shipping Weight
150 Pounds
Certifications
ETL Listed
Yes
Energy Star Listed
Yes
AHRI Certified
Yes
