GE Mini Splits ASH112CRAWA
GE Mini Splits ASH112CRAWA
Hover to zoom
1 Of 5

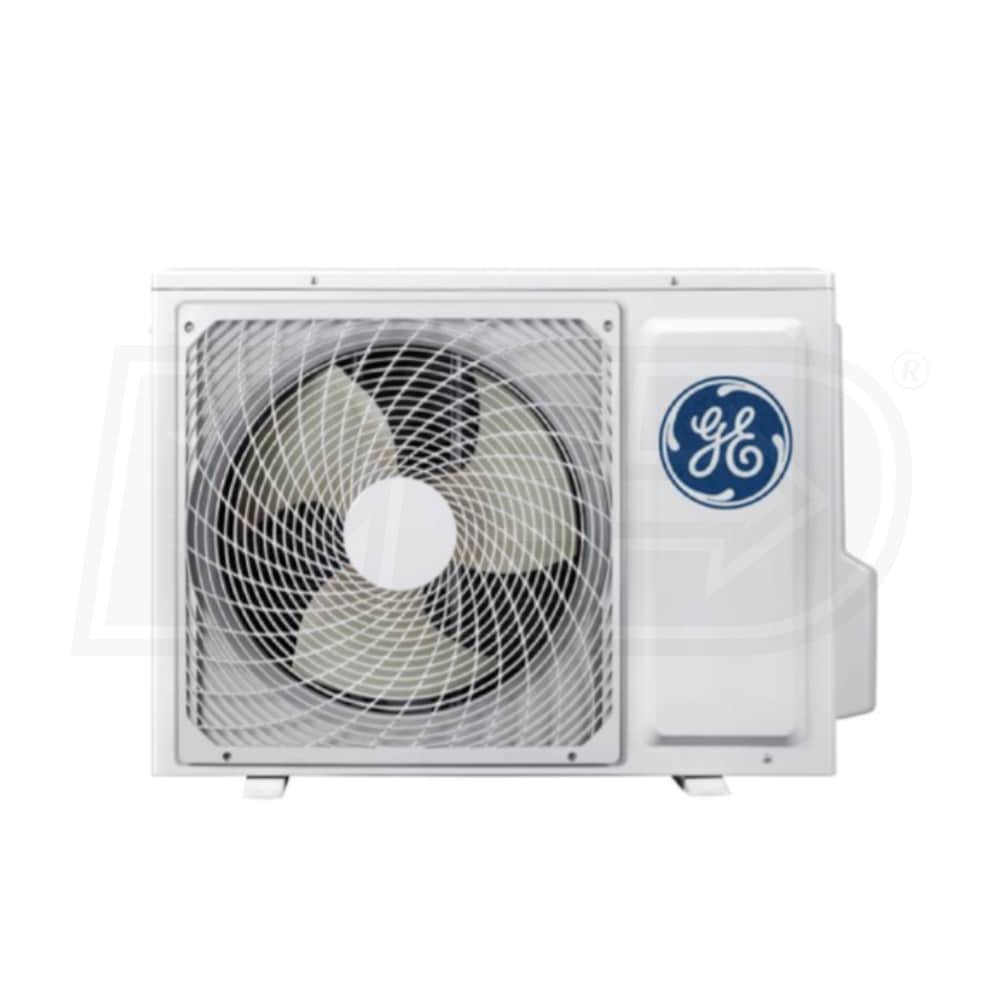

GE - 12k BTU - Caliber Series Outdoor Condenser - Single Zone Only

Model:

ASH112CRAWA

Write A Review
Discontinued
Try this product instead
GE - 12k BTU - Caliber Series Outdoor Condenser - Single Zone Only
GE - 12k BTU - Caliber Series Outdoor Condenser - Single Zone Only
Model: ASH112CRAWA
Not For Individual Sale
Specifications
Reviews
How-To Articles
Share

Features

    California residents see
    WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
    For more information go to: www.p65Warnings.ca.gov

    Specifications

    ASH112CRAWA
    specs product image PID-107116
    General Information
    Type
    Outdoor Condenser
    Product Line
    Caliber
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
    Heating and Cooling
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Performance
    Cooling BTU
    12000
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
    50 dB
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
    -4 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    20 Amps
    Dimensions
    Maximum Line Length
    66 Feet
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    21 1/4 Inches
    Product Width
    30 11/16 Inches
    Product Depth
    9 5/8 Inches
    Product Weight
    63.9 Pounds
    Shipping Weight
    71.7 Pounds
    Certifications
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Compressor Warranty
    7 Years
