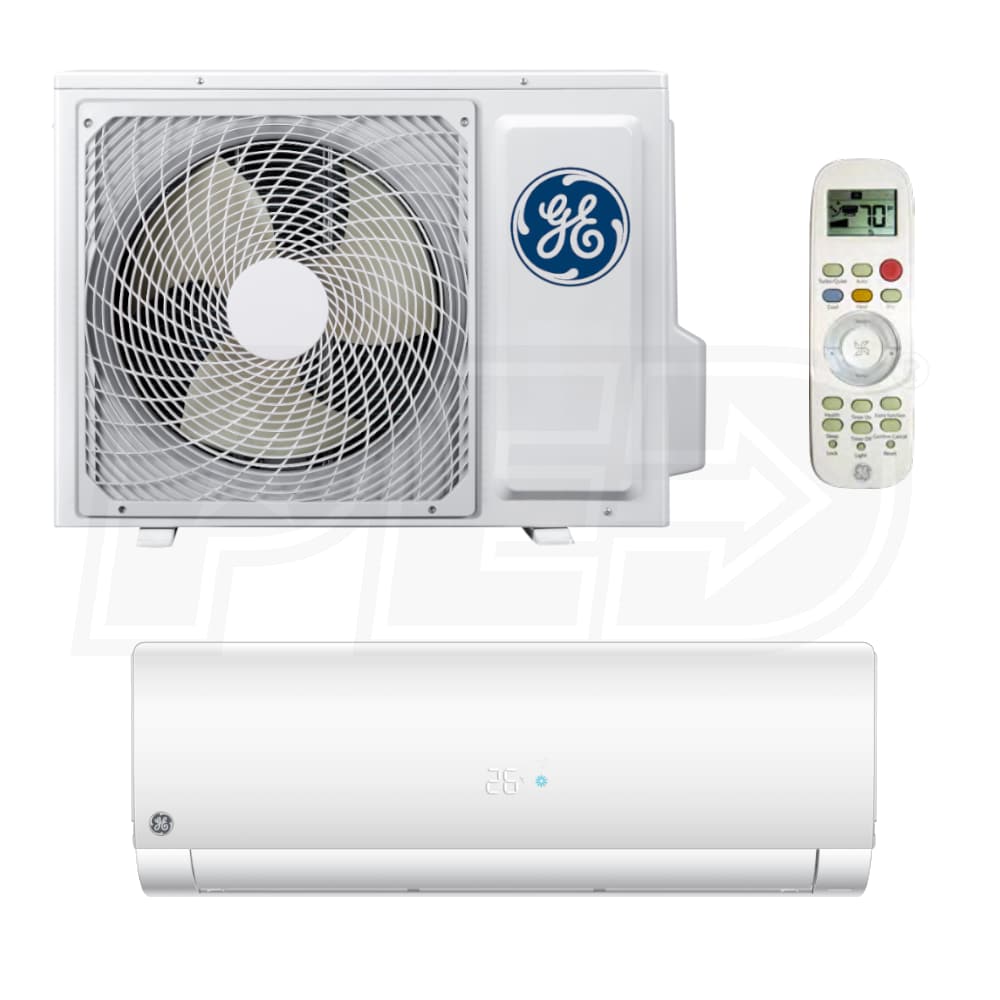

GE - 36k BTU Cooling + Heating - Caliber Series Wall Mounted Air Conditioning System

Model:

AS36TRD

Write A Review
$2,519.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-7 Business Days
synchrony card logo
$45 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
GE - 36k BTU Cooling + Heating - Caliber Series Wall Mounted Air Conditioning System
GE - 36k BTU Cooling + Heating - Caliber Series Wall Mounted Air Conditioning System
Model: AS36TRD
$2,519.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Providing flexible comfort in new homes, residential building as well as renovations, GE systems deliver efficient cooling and heating where you need it most. With an efficient compressor that provides maximum comfort, GE condensers use the leading compressor technology. The Caliber Series features 2-way drain piping and an included remote controller for simple installation and operation. Experience a whole new meaning of home comfort with the Caliber Series from GE.
  • Inverter Technology
  • The Caliber Series features leading A-PAM DC Inverter Technology to provide efficient and quiet operation. The inverter is used to continuously regulate refrigerant flow and ensure there's no wasted energy.
  • Low Ambient Heating
  • With the ability to provide heat at ambient temperatures reaching -4 F, the Caliber Series won't leave you hanging when it gets cold outside. An included base pan heater ensures condensate water from the outdoor unit never freezes.
  • Snow Hood and Wind Baffles are required for low ambient heating, please see Accessories.
  • Blue Fin Coating
  • The Caliber Series outdoor unit features a special coating to whisk away condensate water, preventing rust and extending its lifespan.
  • Turbo Mode
  • Turn on Turbo Mode for fast heating and cooling comfort.
  • Two-Way Pipe Drain
  • Installation of the Caliber Series is simplified with a two-way pipe drain.
  • Warm Start
  • GE's hot start technology prevents cold drafts by delaying fan operation until the heat exchanger has warmed up.
  • Product Includes

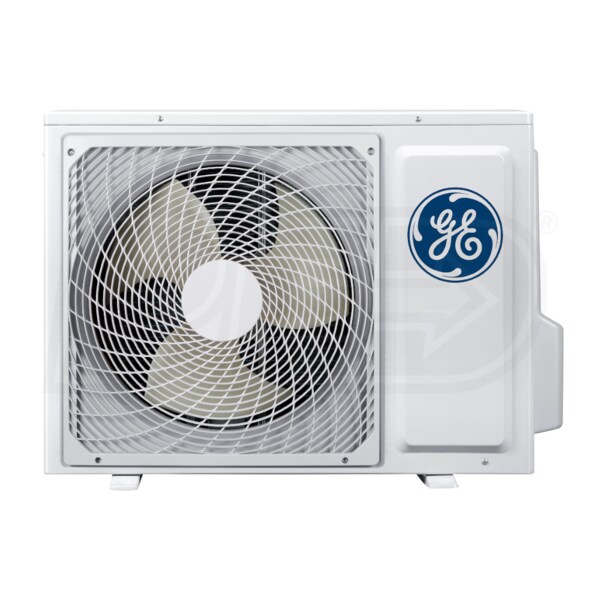

    • (1) GE - 30k BTU - Caliber Series Outdoor Condenser - Single Zone Only (ASH3036TRDFA)
    • (1) GE Caliber Series 36k BTU Wall Mounted Unit - For Single Zone (ASYW36TRDFA)
    Product Note
    GE products include a 10-year parts and compressor warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://www.geappliances.com/ductless/ within 60 days of installation. All Mini Split Systems require one Primary Mini Split Installation Kit.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) GE - 30k BTU - Caliber Series Outdoor Condenser - Single Zone Only (ASH3036TRDFA)
  • (1) GE Caliber Series 36k BTU Wall Mounted Unit - For Single Zone (ASYW36TRDFA)
AS36TRD
specs product image PID-124100
General Information
Type
Wall Mounted
Product Line
Caliber Series
Product Category
Mini Split Heat Pump System
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones Learn More
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
36
Outdoor Unit Size
36000 BTU
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
3/8" x 5/8"
Performance
Cooling BTU
36000
Cooling Capacity
33000 BTU
Heating Capacity
35000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
17.5
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
8.0
HSPF Learn More
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
9.5
Cooling Power Input
3900 Watts
Maximum Air Flow
920 CFM
Minimum Air Flow
440 CFM
Minimum Sound Level
40 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
56 dB
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-4 F
Minimum Outdoor Temperature for Cooling
-40 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
40 Amps
Dimensions
Maximum Line Length
165 Feet
Gas Connection Size
3/8 Inch
Liquid Connection Size
5/8 Inch
Shipping Weight
221 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
207769102
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
ASH3036TRDFA
General Information
Type
Outdoor Condenser
Product Line
Caliber Series
Product Category
Mini Split Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Outdoor Unit Size
30000 BTU
Line Set Size
3/8" x 5/8"
Performance
Cooling BTU
30000
Cooling Power Input
3000 Watts
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
62 dB
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-4 F
Minimum Outdoor Temperature for Cooling
-40 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
40 Amps
Dimensions
Maximum Line Length
165 Feet
Gas Connection Size
3/8 Inch
Liquid Connection Size
5/8 Inch
Product Height
30 Inches
Product Width
36 1/4 Inches
Product Depth
15 1/8 Inches
Product Weight
145 Pounds
Shipping Weight
165 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
ASYW36TRDFA
General Information
Type
Wall Mounted
Product Line
Caliber Series
Product Category
Mini Split Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
36
Installation Location
Indoor
Line Set Size
3/8" x 5/8"
Performance
Cooling BTU
36000
Cooling Capacity
33000 BTU
Maximum Air Flow
920 CFM
Minimum Air Flow
440 CFM
Minimum Sound Level
40 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
56 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
5/8 Inch
Product Height
14 3/8 Inches
Product Width
51 3/4 Inches
Product Depth
10 7/8 Inches
Product Weight
46.3 Pounds
Shipping Weight
56.2 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
