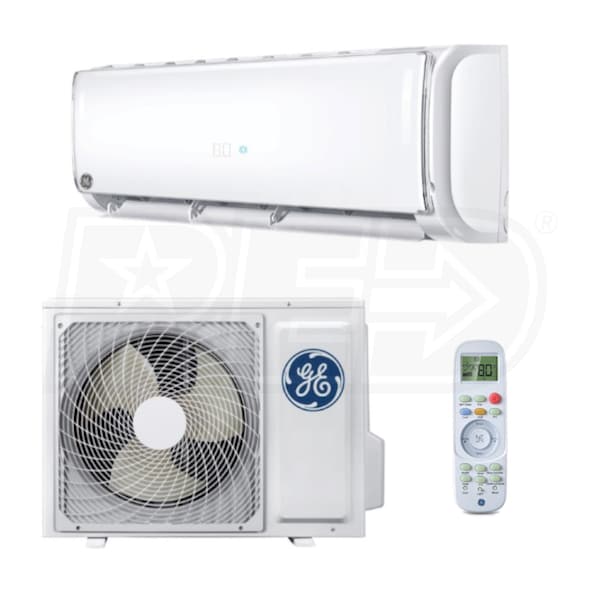

GE - 9k BTU Cooling + Heating - Caliber Series Wall Mounted Air Conditioning System - 115V - 17.5 SEER2
Model:
AS09CRA
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
3
These accessories are required to properly setup/install this product.
Model: MSPLTKIT-143815
Length (ft)
$303.61
In-Stock
Model: UC1636-3
$44.00
In-Stock
$105.62
In-Stock
Optional Accessories
7
Model: MLS143812-25
Length (ft)
$200.00
In-Stock
Model: MSCABLE144-25
$45.00
In-Stock
Model: LHKIT-75
$86.49
Model: ASP-MW-UNI
$296.32
In-Stock
Features
- Inverter Technology
- The Caliber Series features leading A-PAM DC Inverter Technology to provide efficient and quiet operation. The inverter is used to continuously regulate refrigerant flow and ensure there's no wasted energy.
- Blue Fin Coating
- The Caliber Series outdoor unit features a special coating to whisk away condensate water, preventing rust and extending its lifespan.
- Auto Louver
- In order to effectively heat and cool the room, the wall mounted unit features an auto louver that adjusts airflow upward for cooling and downward for heating.
- Warm Start
- GE's hot start technology prevents cold drafts by delaying fan operation until the heat exchanger has warmed up.

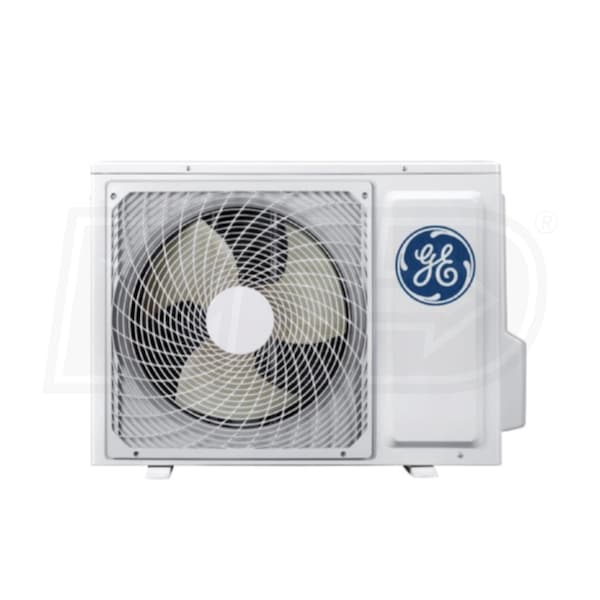

- (1) GE - 9k BTU - Caliber Series Outdoor Condenser - Single Zone Only (ASH109CRAWA)
- (1) GE Caliber Series 9k BTU Wall Mounted Unit - For Single Zone (ASYW09CRAWA)
The Caliber Series mini split system from GE is a simple, yet effective solution to home comfort. Featuring leading compressor technology, the Caliber Series provides heating and cooling with maximum efficiency. The Caliber Series features 115V wiring (9k/12k Only), 2-way drain piping and an included remote controller for simple installation and operation. Experience a whole new meaning of home comfort with the Caliber Series from GE.
Product Includes
Product Note
GE products include a 10-year parts and compressor warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://www.geappliances.com/ductless/ within 60 days of installation. All Mini Split Systems require one Primary Mini Split Installation Kit.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) GE - 9k BTU - Caliber Series Outdoor Condenser - Single Zone Only (ASH109CRAWA)
- (1) GE Caliber Series 9k BTU Wall Mounted Unit - For Single Zone (ASYW09CRAWA)
AS09CRA
Overview
Product Category
Mini Split Heat Pump System
General Information
Type
Wall Mounted
Product Line
Caliber Series
Product Category
Mini Split Heat Pump System
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9
Outdoor Unit Size
9000 BTU
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
1/4" x 3/8"
Subscription Eligible
No
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Heating Capacity
10000 BTU
Cooling Power Input
810 Watts
Heating Power Input
850 Watts
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-4 F
Minimum Outdoor Temperature for Cooling
14 F
SEER2
SEER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
17.5
EER2
EER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
10.5
HSPF2
HSPF2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
9.5
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
20 Amps
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Weight
78.3 Pounds
Shipping Weight
90.9 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
204722821
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
ASH109CRAWA
General Information
Type
Outdoor Condenser
Product Line
Caliber
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
9000
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
47 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-4 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
20 Amps
Dimensions
Maximum Line Length
66 Feet
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
21 1/4 Inches
Product Width
30 11/16 Inches
Product Depth
9 5/8 Inches
Product Weight
58.4 Pounds
Shipping Weight
66.2 Pounds
Certifications
AHRI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
ASYW09CRAWA
General Information
Type
Wall Mounted
Product Line
Caliber
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9
Installation Location
Indoor
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Heating Capacity
10000 BTU
Minimum Sound Level
23 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
39 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
11 7/16 Inches
Product Width
34 Inches
Product Depth
7 7/8 Inches
Product Weight
19.9 Pounds
Shipping Weight
24.7 Pounds
Certifications
AHRI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
