GE Appliances GE30L08BAM
GE Appliances GE30L08BAM
Hover to zoom
1 of 1

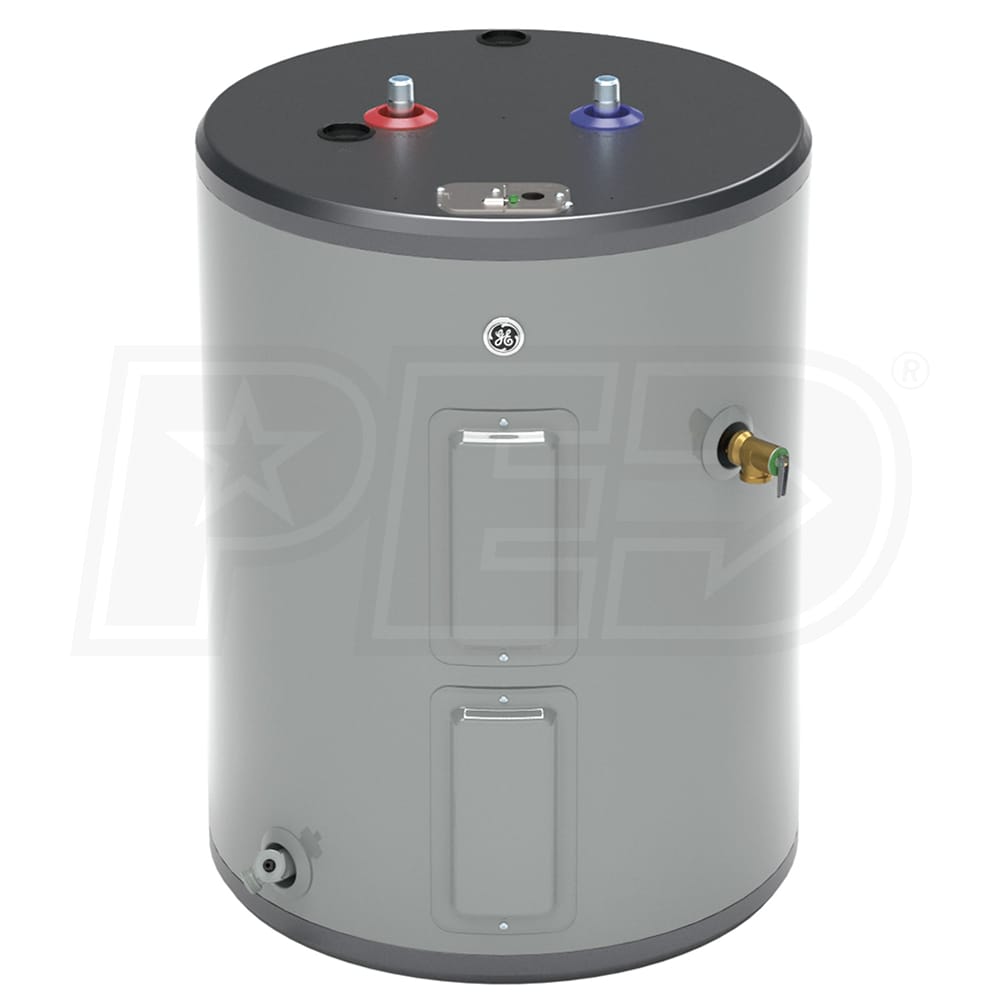

GE - 26 Gallon - 208-240V - Top Port Lowboy - Tank Water Heater

Model:

GE30L08BAM

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
GE - 26 Gallon - 208-240V - Top Port Lowboy - Tank Water Heater
GE - 26 Gallon - 208-240V - Top Port Lowboy - Tank Water Heater
Model: GE30L08BAM
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Optional Accessories 3

Features

    For more than 100 years, GE Appliances are committed to serving owners, customer and communities by making the most innovative appliances. Easy to set up, the GE water heater is installed using standard water and electrical connections. The adjustable thermostat allows you to easily change the temperature to your desired settings. GE water heaters feature two 5,500 watt heating elements to provide a quick recovery, so you have hot water when you need it. The durable design of the anode rod provides long lasting protection against corrosion for the tank. Ideal for tight spaces, the GE Lowboy allows you to make the most of tight spaces where height is a concern.
  • Lowboy Design
  • The GE Lowboy allows you to make the most of tight spaces with it's compact, lowboy design.
  • Quick Recovery
  • Have hot water when you need it with the GE water heater. Featuring two 5,500 watt heating elements, the recovery time decreased, providing you with hot water faster.
  • Simple Installation
  • You can easily replace you old water heater with the GE water heater using standard water and electric connections.
  • Maximized Hot Water Delivery
  • The GE water heater replenishes from the bottom of the tank, maximizing hot water delivery.
  • Adjustable Thermostat
  • Set the temperature right where you need it with the adjustable thermostat on the GE water heater.
  • Port Location
  • Top Port
  • Family Size
  • 1-3 People
  • 8 Year Parts Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

GE30L08BAM
specs product image PID-114732
General Information
Type
Electric Water Heater
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Storage Type
Tank
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Lowboy
Mount Type
Floor
Port Location
Top
UPC
8469184600
Performance
Electric Heat Capacity
5.5 kW
Maximum Water Temperature
150 F
Minimum Water Temperature
90 F
First Hour Delivery Learn More
First Hour Delivery
Sometimes called First Hour Rating, this is the number of gallons of hot water the heater can supply per hour when starting with a fully heated tank. The recovery of the water heater depends on your boiler's BTU and boiler output temperature.
53 Gallons
Minimum Output Pressure
20 PSI
Maximum Output Pressure
125 PSI
Uniform Energy Factor Learn More
Uniform Energy Factor
Uniform Energy Factor (UEF) is a measurement of water heater energy efficiency. The higher the energy factor, the more efficient the water heater.
0.93
Electrical Data
Voltage
240 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
30 Amps
Recommended Breaker Size
30 Amps
Dimensions
Storage Volume
26 Gallons
Gas Connection Size
3/4 Inch
Cold Water Inlet
3/4 Inch
Product Height
32 7/8 Inches
Product Depth
24 Inches
Product Weight
105 Pounds
Certifications
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
8 Years
