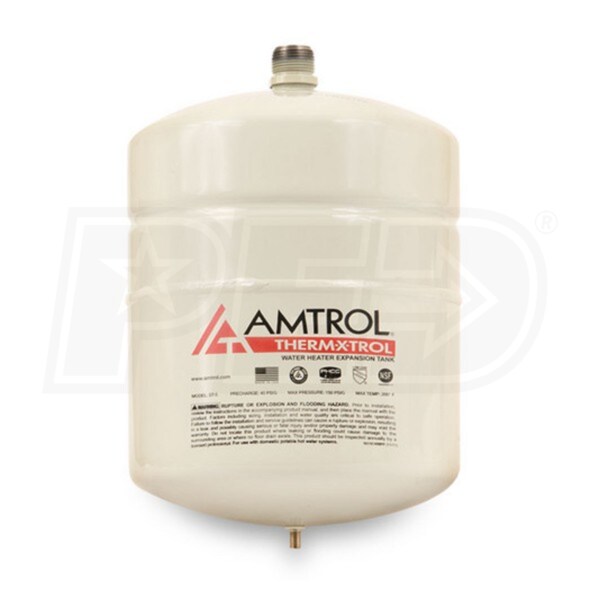

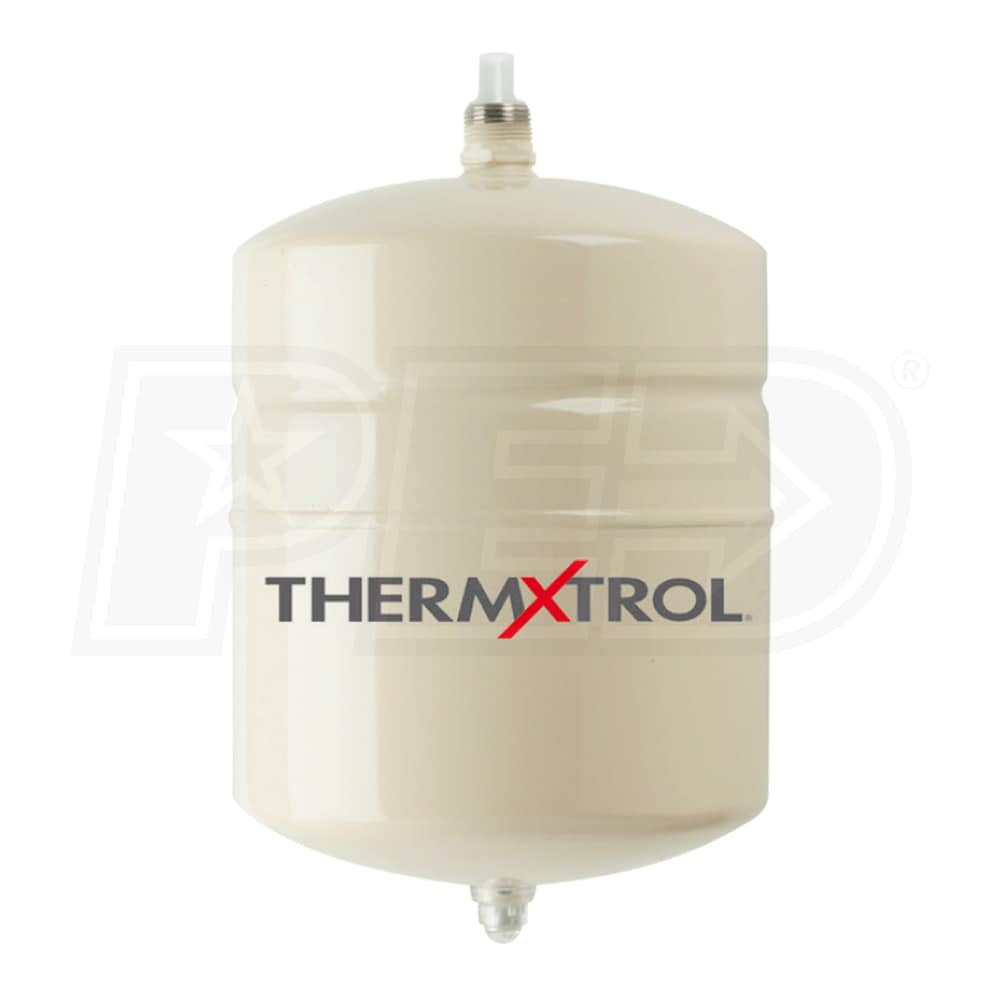

In 1954, Amtrol invented the thermal expansion tank to control pressure build-up in closed, hot water systems. Today they are continuing to roll out efficient and reliable tanks to improve your system. The ST in-line thermal expansion tank is a perfect example of this. By accepting expanded water caused by thermal expansion, the ST is able to then return the water to the system when hot water is used. The ST also prevents pressure relief valve discharge, dripping faucets, and intermittent toilet fill. From the strong deep drawn steel domes with corrosion resistant liner to the welded air charge fitting, the ST is designed to prevent damaging pressure buildup and eliminate energy and water waste. The ST-5 is ideal for residential applications.
USA Made
All ST thermal expansion tanks are made in the USA at facilities certified for maintaining high-quality standards.
Heavy Duty Tank
From the deep drawn steel dome with rigid polypropylene liner to the welded air charge fitting, this thermal expansion tank is constructed from top to bottom for maximum strength and corrosion resistance.
Eliminates Wasted Energy
Expanded water caused by thermal expansion is collected by the ST tank which returns the water back to your system which preventing faucet drips, intermittent toilet fill, and pressure relief valve discharge.
Protection for Your System
ST thermal expansion tanks are designed to protect your water heater, fixtures, and appliances by preventing dangerous pressure build up.
Specifications
ST-5
Overview
Product Category
Water Heater - Expansion Tanks
UPC
642031395665
General Information
Product Line
Therm-X-Trol
Product Category
Water Heater - Expansion Tanks
Connection Type
NPT
Color
Tan
Performance
Maximum Operating Temperature
200 F
Maximum Operating Pressure
150 PSI
Dimensions
Storage Volume
2 Gallons
Maximum Acceptance Volume
0.9 Gallons
Connection Size
3/4 Inch
Product Diameter
8 Inches
Product Height
12 5/8 Inches
Shipping Width
8 Inches
Shipping Height
13 Inches
Shipping Length
8 Inches
Certifications
Country of Origin
United States
Warranty Information
Warranty WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Reviews
(2)
Amtrol ST-5 Reviews & Ratings
Customer Photos and Videos
Product Q&A
(1)
Product QuestionsAnswered by Bob, the Heating Product Expert
What is the purpose of an expansion tank? Are they required by state law?
Edgar F.
from Tennessee
October 03, 2019
Answer
Some building codes require them. Typically they're to be used with tankless water heaters. When the hot water is trapped in the line, it may push back on the faucets or the water heater. The expansion tank will help reduce wear on both.
