Fujitsu UTY-RNNUM
Fujitsu UTY-RNNUM
Hover to zoom
1 Of 5

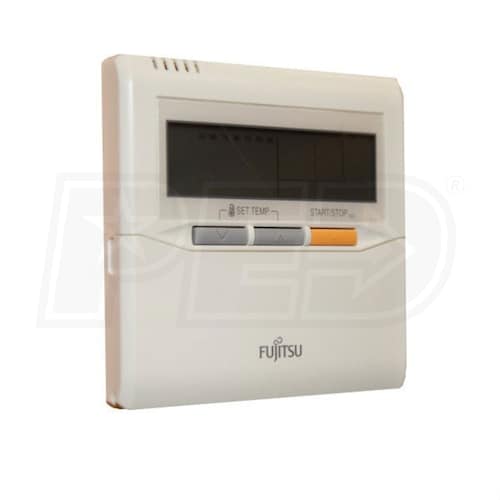

Fujitsu Wired Remote Controller
Model: UTY-RNNUM
3.5 out of 53.5 out of 53.5 out of 53.5 out of 53.5 out of 5
Number of Reviews(2)
Write a Review
$189.95
In-Stock
Ships Wednesday, Jan 27th
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 2
    Reviews
  • 4
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features

    The Fujitsu UTY-RNNUM Wired Remote Controller is used to provide control and additional functionality for Fujitsu Mini Split Indoor Units. This wired remote may operate a single compatible wall mounted unit, or it may be daisy-chained to multiple compatible compact ceiling cassette or concealed duct units to provide identical settings for multiple zones. The Fujitsu UTY-RNNUM is a simple and effective way to manage your mini split system.

    Product Features

    Restrict Energy Use
    With a UTY-RNNUM Wired Remote Controller you can set your Fujitsu Mini Split Indoor Units to operate in economy mode. This mode exchanges a small amount of heating and cooling power for reduced energy consumption from your system.

    Set a Schedule
    Your indoor units may be assigned an operation schedule from this wired remote controller. The UTY-RNNUM can provide a seven-day schedule to your Fujitsu Mini Split Indoor Units. This schedule supports two different temperature settings through a set back timer and units may be activated or deactivated in 30 minute increments.

    Product Compatible With
    • Fujitsu ASU*RLF Wall Mounted Mini Split Indoor Units
    • Fujitsu ASU*RLS2 Wall Mounted Designer Mini Split Indoor Units
    • Fujitsu ARU*RLF Concealed Duct Mini Split Indoor Units
    • Fujitsu AUU*RLF Compact Ceiling Cassette Mini Split Indoor Units
    Product Note

    A Fujitsu UTY-XCBXZ1 Interface Kit is required to use this remote controller with ASU7RLF, ASU9RLF, and ASU12RLF units. A Fujitsu UTY-TWBXF Interface Kit is required to use this remote controller with any ASU*RLS2 indoor units.

    Important Warranty Information: Fujitsu General does not extend its manufacturers warranty to products purchased over the Internet. Any replacement parts that would normally be covered under the manufacturers warranty will be provided by eComfort.com, but only when equipment has been installed by a qualified professional HVAC contractor. Installation by others voids all warranties.

    Product Note
    Requires Fujitsu Interface Module Kit model UTY-XCBXZ2 (sold separately).
Specifications
General Information
Interface
Buttons
UPC
799471526699
Dimensions
Product Height
4 3/4 Inches
Product Width
4 3/4 Inches
Product Depth
29/40 Inch
Product Weight
1.75 Pounds
Shipping Width
7 43/48 Inches
Shipping Height
10 19/24 Inches
Shipping Depth
2 29/48 Inches
Shipping Weight
1.75 Pounds
Certifications
Country of Origin
Thailand
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Features
Features

    The Fujitsu UTY-RNNUM Wired Remote Controller is used to provide control and additional functionality for Fujitsu Mini Split Indoor Units. This wired remote may operate a single compatible wall mounted unit, or it may be daisy-chained to multiple compatible compact ceiling cassette or concealed duct units to provide identical settings for multiple zones. The Fujitsu UTY-RNNUM is a simple and effective way to manage your mini split system.

    Product Features

    Restrict Energy Use
    With a UTY-RNNUM Wired Remote Controller you can set your Fujitsu Mini Split Indoor Units to operate in economy mode. This mode exchanges a small amount of heating and cooling power for reduced energy consumption from your system.

    Set a Schedule
    Your indoor units may be assigned an operation schedule from this wired remote controller. The UTY-RNNUM can provide a seven-day schedule to your Fujitsu Mini Split Indoor Units. This schedule supports two different temperature settings through a set back timer and units may be activated or deactivated in 30 minute increments.

    Product Compatible With
    • Fujitsu ASU*RLF Wall Mounted Mini Split Indoor Units
    • Fujitsu ASU*RLS2 Wall Mounted Designer Mini Split Indoor Units
    • Fujitsu ARU*RLF Concealed Duct Mini Split Indoor Units
    • Fujitsu AUU*RLF Compact Ceiling Cassette Mini Split Indoor Units
    Product Note

    A Fujitsu UTY-XCBXZ1 Interface Kit is required to use this remote controller with ASU7RLF, ASU9RLF, and ASU12RLF units. A Fujitsu UTY-TWBXF Interface Kit is required to use this remote controller with any ASU*RLS2 indoor units.

    Important Warranty Information: Fujitsu General does not extend its manufacturers warranty to products purchased over the Internet. Any replacement parts that would normally be covered under the manufacturers warranty will be provided by eComfort.com, but only when equipment has been installed by a qualified professional HVAC contractor. Installation by others voids all warranties.

    Product Note
    Requires Fujitsu Interface Module Kit model UTY-XCBXZ2 (sold separately).
Specifications
General Information
Interface
Buttons
UPC
799471526699
Dimensions
Product Height
4 3/4 Inches
Product Width
4 3/4 Inches
Product Depth
29/40 Inch
Product Weight
1.75 Pounds
Shipping Width
7 43/48 Inches
Shipping Height
10 19/24 Inches
Shipping Depth
2 29/48 Inches
Shipping Weight
1.75 Pounds
Certifications
Country of Origin
Thailand
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Product Specs
+
Specifications
General Information
Interface
Buttons
UPC
799471526699
Dimensions
Product Height
4 3/4 Inches
Product Width
4 3/4 Inches
Product Depth
29/40 Inch
Product Weight
1.75 Pounds
Shipping Width
7 43/48 Inches
Shipping Height
10 19/24 Inches
Shipping Depth
2 29/48 Inches
Shipping Weight
1.75 Pounds
Certifications
Country of Origin
Thailand
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Reviews
(2)
+
Fujitsu UTY-RNNUM Reviews & Ratings
Product Q&A
(4)
+
Search Product Q&A's Answered by Chris, the eComfort Product Expert
icon-social-fb1
+
Is this t stat compatible with a ASU12RL2? Is an interface module required?
Chad
from Florida
September 21, 2018
Answer
Yes, these are compatible, but also yes, you'll need the interface module.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
+
Will it work on ASU24RLB?
Dan
from Michigan
September 14, 2016
Answer
Yes, the UTY-RNNUM will work with the ASU24RLB.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
+
How long is the cord on Model: UTY-RNNUM?
Alex
from Virginia
August 19, 2016
Answer
The cable included with the UTY-RNNUM is 30 long.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
+
Do I need to reprogram wired control UTY-RNNUM unit every seven days, or does the program run seven-day cycle continuously?
Alexander T.
from Illinois
July 05, 2016
Answer
Seven-day programmability means that each day can have its own schedule. Once you set it, the remote will repeat your program every seven days automatically.
Was this answer helpful?
Yes
Thumbs Up Icon
1
No
Thumbs Down Icon
0
