Fujitsu HFI Flex Zone - Secondary Branch Box - 3 Ports
Fujitsu HFI Flex Zone - Secondary Branch Box - 3 Ports
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
Product Description
+−
Features
Features
- Electronic Expansion Valve
- The UTP-PU03B Secondary Branch Box has an internal expansion valve that controls refrigerant flow and reduces noise, ensuring that your home is your home is comfortable and peaceful.
- Connection Adapter Included
- 3 x (1/2MF x 3/8FF)
- 3 x (1/2MF x 5/8FF)
- Product Compatible With
- Fujitsu AOU48RLXFZ1 Mini Split Outdoor Condenser

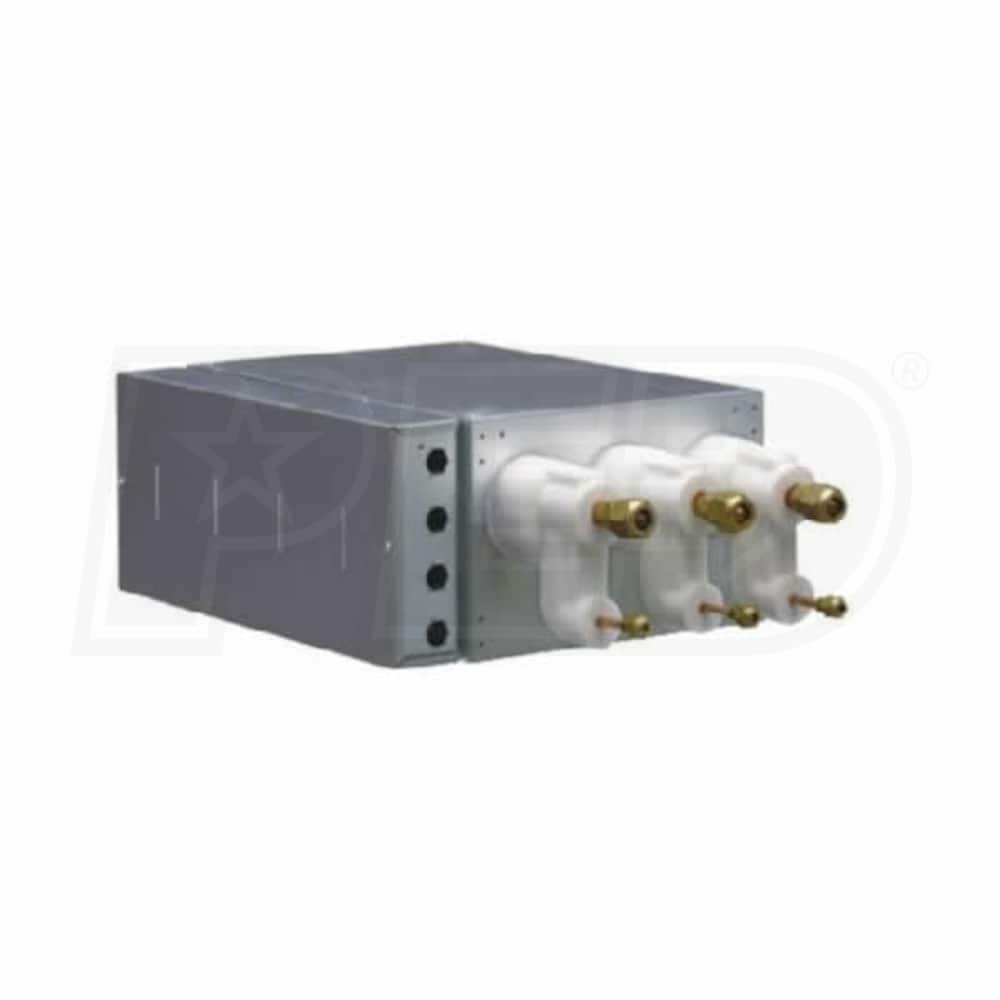

The Fujitsu UTP-PU03B Secondary Branch Box is used to connect a Fujitsu AOU48RLXFZ1 Mini Split Outdoor Condenser to multiple indoor units. This branch box supports up to three indoor units, and it comes with the necessary adapters to use it with any multi-zone Fujitsu Mini Split Indoor Units.
Product Note
The Fujitsu UTP-PU03B is a secondary branch box. A UTP-PU03A primary branch box must be added to your system before UTP-PU03B Secondary Branch Boxes may be used for successive Fujitsu Mini Split Indoor Units. A UTP-SX248A Separation Tube Assembly Kit is required when using multiple branch boxes.
Branch boxes are not weather tight enclosures and cannot be mounted outdoors or in damp environments exceeding 80% relative humidity, unless using the Branch Box Outdoor Enclosure, Part #UTP-PX-A.
Important Warranty Information: Fujitsu General does not extend its manufacturers warranty to products purchased over the Internet. Any replacement parts that would normally be covered under the manufacturers warranty will be provided by eComfort.com, but only when equipment has been installed by a qualified professional HVAC contractor. Installation by others voids all warranties.
Specifications
General Information
Product Line
Halcyon HFI
Ports Quantity
3
Electrical Data
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
15 Amps
Dimensions
Liquid Connection Size
3/8 Inch
Gas Connection Size
5/8 Inch
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
1/2 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
1/2 Inch
Line Set C Liquid Connection
1/4 Inch
Line Set C Gas Connection
1/2 Inch
Product Height
7 5/8 Inches
Product Width
33 Inches
Product Depth
14 5/8 Inches
Product Weight
20 Pounds
Shipping Height
11 Inches
Shipping Width
37 Inches
Shipping Depth
17 Inches
Shipping Weight
30 Pounds
Certifications
Country of Origin
Thailand
Warranty Information
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
