Fujitsu Wall Mounted 4-Zone System - 36,000 BTU Outdoor - 7k + 7k + 7k + 12k Indoor - 18.0 SEER

Fujitsu Wall Mounted 4-Zone System - 36,000 BTU Outdoor - 7k + 7k + 7k + 12k Indoor - 18.0 SEER
Our Price
Compare Prices
Shipping Info
Model: F4H36W07070712
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews (1)
Write A Review
$4,233.00
Only 2 In-Stock
Ships Thursday, Dec 20th
Free Shipping
Free Lift Gate Service -
Holiday Shipping Schedule
Holiday Schedule -
Outdoor Unit BTU/h
Indoor Unit Sizes ? Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (9k + 12k) means the system includes a 9k BTU unit and a 12k BTU unit.
Enhanced Heating Capacity
Add-Ons

Only 2 In-Stock
Ships Thursday, Dec 20th
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
Product Description
+
Features
Features
    Fujitsu's Multizone systems can have a multitude of combinations with wall mounted, compact cassette or slim duct type indoor units. Mix-and-match flexibility of evaporator type and capacity allows you to choose the indoor unit that best fits the application, whether it be hidden or showcased. These systems are ideal for nursing homes, doctor's offices, condominiums, apartments and residences - any place where individual cooling or heating is needed.
  • Inverter Technology
  • Inverter technology drives the compressor, allowing it to match output to demand. The result: a more stable and comfortable temperature within the space. This type of operation removes more moisture, reduces short-cycling, and improves efficiency.
  • Corrosion Resistant Heat Exchanger
  • Fujitsu applies a blue fin coating to the heat exchanger of their outdoor condensers. This improves their resistance to many common sources of corrosion and extends their longevity.
  • Advanced Filtration
  • A washable ion deodorizing filter uses fine ceramic particles to capture and remove odors. An apple catechin filter isolates and deactivates mold, bacteria, and dust. This combination creates a clean and healthy air flow from your indoor unit.
  • Timer Function
  • You can set a sleep timer to gradually decrease the output after you have gone to bed. It also supports a 24-hour timer, allowing you to set on and off time once per day. These timers allow you to curtail energy use without sacrificing comfort.
  • Dehumidify and Cool
  • Dry Mode demonstrates the Halcyon HFI's versatility. In addition to providing moderate cooling, dry mode also dehumidifies your zone.
  • Airflow Control
  • Swing mode disperses conditioned air evenly across your zone, resulting in consistent and thorough heating and cooling. Swing mode can be used with this unit's auto fan mode and auto changeover for automated comfort in rooms of all shapes and sizes.
  • Power Diffuser
  • This unit includes an airflow louver known as a power diffuser that directs heated air to the floor of the room and cold air outwards to blanket the room. This diffuser uses temperature sensors to ensure that your airflow is ideal in any application.
  • Economy Mode
  • The Halcyon HFI features an Economy Mode restricts the unit's maximum output to decrease energy use and increase savings. This mode also increases the unit's dehumidification capabilities during cooling operations and in Dry Mode.
  • Recommended line set sizes for indoor unit connectivity:
  • ASU12RLF1: 1/4" x 3/8" Line Set
  • ASU7RLF1: 1/4" x 3/8" Line Set (Qty 3)
  • ASU7RLF1: 1/4" x 3/8" Line Set (Qty 3)
  • ASU12RLF1: 1/4" x 3/8" Line Set

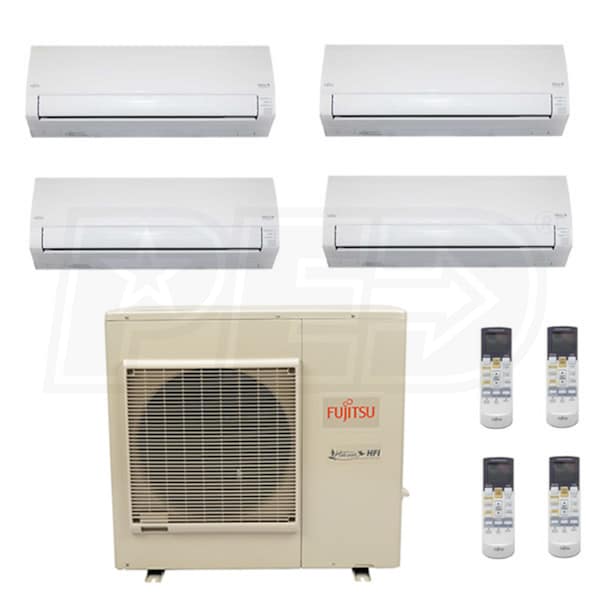

  • Product Includes
    • (1) Fujitsu - 36k BTU - Outdoor Condenser - For 2-4 Zones (AOU36RLXFZ1)
    • (1) Fujitsu 12k BTU Wall Mounted Unit - For Multi or Single-Zone (ASU12RLF1)
    • (3) Fujitsu 7k BTU Wall Mounted Unit - For Multi-Zone (ASU7RLF1)
Specifications
General Information
Type
Wall Mounted
Product Line
Halcyon HFI
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Number of Zones ? A zone is a room or area within a building that has its own temperature control.
4
Indoor Unit Size(s) ? Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (09 + 12) means the system includes a 9k BTU unit and a 12k BTU unit.
6 + 6 + 6 + 12
DOE Regional Compliance ? In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Cooling Capacity
33000 BTU
Heating Capacity
36200 BTU
SEER ? SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
18.0
EER ? EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
10.0
HSPF ? HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
9.4
Cooling Power Input
3730 Watts
Heating Power Input
3000 Watts
Minimum Outdoor Temperature for Heating ? This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
5 F
Minimum Outdoor Temperature for Cooling
14 F
Dimensions
Product Weight
210 Pounds
Certifications
AHRI Certified
Yes
AHRI Reference Number
8071537
AOU36RLXFZ1 Specifications
General Information
Type
Outdoor Condenser
Product Line
Halcyon HFI
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Maximum Number of Zones
4
Multi-Zone Compatible
Yes
Installation Location
Outdoor
Performance
Nominal Capacity
36000 BTU
Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
55 dB
Minimum Outdoor Temperature for Heating ? This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
30 Amps
Dimensions
Maximum Line Length
230 Feet
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
3/8 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
3/8 Inch
Line Set C Liquid Connection
1/4 Inch
Line Set C Gas Connection
3/8 Inch
Line Set D Liquid Connection
1/4 Inch
Line Set D Gas Connection
1/2 Inch
Product Height
32 11/16 Inches
Product Width
35 7/16 Inches
Product Depth
13 Inches
Product Weight
149 Pounds
Shipping Height
38 3/16 Inches
Shipping Width
41 5/16 Inches
Shipping Depth
17 1/2 Inches
Shipping Weight
165 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
ASU12RLF1 Specifications
General Information
Type
Wall Mounted Unit
Product Line
Halcyon HFI
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Multi-Zone Compatible
Yes
Remote Control
Wireless
Installation Location
Indoor
Performance
Nominal Capacity
12000 BTU
Minimum Air Flow
182 CFM
Maximum Air Flow
388 CFM
Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
40 dB
Minimum Sound Level
21 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Liquid Connection Size
1/4 Inch
Gas Connection Size
3/8 Inch
Product Height
10 1/2 Inches
Product Width
33 1/16 Inches
Product Depth
8 Inches
Product Weight
19 Pounds
Shipping Height
10 5/8 Inches
Shipping Width
34 13/16 Inches
Shipping Depth
14 3/4 Inches
Shipping Weight
23 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
ASU7RLF1 Specifications
General Information
Type
Wall Mounted Unit
Product Line
Halcyon HFI
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Multi-Zone Compatible
Yes
Remote Control
Wireless
Installation Location
Indoor
Performance
Nominal Capacity
7000 BTU
Minimum Air Flow
182 CFM
Maximum Air Flow
330 CFM
Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
36 dB
Minimum Sound Level
21 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Liquid Connection Size
1/4 Inch
Gas Connection Size
3/8 Inch
Product Height
10 9/16 Inches
Product Width
33 1/16 Inches
Product Depth
8 Inches
Product Weight
19 Pounds
Shipping Height
10 5/8 Inches
Shipping Width
34 13/16 Inches
Shipping Depth
14 3/4 Inches
Shipping Weight
23 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Features
Features
    Fujitsu's Multizone systems can have a multitude of combinations with wall mounted, compact cassette or slim duct type indoor units. Mix-and-match flexibility of evaporator type and capacity allows you to choose the indoor unit that best fits the application, whether it be hidden or showcased. These systems are ideal for nursing homes, doctor's offices, condominiums, apartments and residences - any place where individual cooling or heating is needed.
  • Inverter Technology
  • Inverter technology drives the compressor, allowing it to match output to demand. The result: a more stable and comfortable temperature within the space. This type of operation removes more moisture, reduces short-cycling, and improves efficiency.
  • Corrosion Resistant Heat Exchanger
  • Fujitsu applies a blue fin coating to the heat exchanger of their outdoor condensers. This improves their resistance to many common sources of corrosion and extends their longevity.
  • Advanced Filtration
  • A washable ion deodorizing filter uses fine ceramic particles to capture and remove odors. An apple catechin filter isolates and deactivates mold, bacteria, and dust. This combination creates a clean and healthy air flow from your indoor unit.
  • Timer Function
  • You can set a sleep timer to gradually decrease the output after you have gone to bed. It also supports a 24-hour timer, allowing you to set on and off time once per day. These timers allow you to curtail energy use without sacrificing comfort.
  • Dehumidify and Cool
  • Dry Mode demonstrates the Halcyon HFI's versatility. In addition to providing moderate cooling, dry mode also dehumidifies your zone.
  • Airflow Control
  • Swing mode disperses conditioned air evenly across your zone, resulting in consistent and thorough heating and cooling. Swing mode can be used with this unit's auto fan mode and auto changeover for automated comfort in rooms of all shapes and sizes.
  • Power Diffuser
  • This unit includes an airflow louver known as a power diffuser that directs heated air to the floor of the room and cold air outwards to blanket the room. This diffuser uses temperature sensors to ensure that your airflow is ideal in any application.
  • Economy Mode
  • The Halcyon HFI features an Economy Mode restricts the unit's maximum output to decrease energy use and increase savings. This mode also increases the unit's dehumidification capabilities during cooling operations and in Dry Mode.
  • Recommended line set sizes for indoor unit connectivity:
  • ASU12RLF1: 1/4" x 3/8" Line Set
  • ASU7RLF1: 1/4" x 3/8" Line Set (Qty 3)
  • ASU7RLF1: 1/4" x 3/8" Line Set (Qty 3)
  • ASU12RLF1: 1/4" x 3/8" Line Set
  • Product Includes
    • (1) Fujitsu - 36k BTU - Outdoor Condenser - For 2-4 Zones (AOU36RLXFZ1)
    • (1) Fujitsu 12k BTU Wall Mounted Unit - For Multi or Single-Zone (ASU12RLF1)
    • (3) Fujitsu 7k BTU Wall Mounted Unit - For Multi-Zone (ASU7RLF1)
