Fujitsu Wall Mounted 3-Zone System - 24,000 BTU Outdoor - 7k + 7k + 12k Indoor - 18.0 SEER

Model:

F3H24W07071200

Write a Review
$3,083.95
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Factory-Direct
Ships in 3-4 Weeks
synchrony card logo
$54 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Fujitsu Wall Mounted 3-Zone System - 24,000 BTU Outdoor - 7k + 7k + 12k Indoor - 18.0 SEER
Fujitsu Wall Mounted 3-Zone System - 24,000 BTU Outdoor - 7k + 7k + 12k Indoor - 18.0 SEER
Model: F3H24W07071200
$3,083.95
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Chris, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. Their experience and dedication can be seen in the F3H24W07071200 wall mounted mini split system. If you are looking to provide heating and cooling for an individual space, or supplement existing heating and air conditioning equipment, the Halcyon HFI mini split system is a reliable and efficient choice. With a wide range of operating modes, this system can be customized to suit any of your comfort needs.
  • Inverter Technology
  • Inverter technology drives the compressor, allowing it to match output to demand. The result: a more stable and comfortable temperature within the space. This type of operation removes more moisture, reduces short-cycling, and improves efficiency.
  • Increased Connectable Capacity
  • Connect indoor units with as much as 130% of the outdoor unit capacity, allowing design flexibility. If all zones are active, indoor units will run at reduced output. As zones are satisfied, output will be redistributed zones that are still active.
  • Corrosion Resistant Heat Exchanger
  • Fujitsu applies a blue fin coating to the heat exchanger of their outdoor condensers. This improves their resistance to many common sources of corrosion and extends their longevity.
  • Advanced Filtration
  • A washable ion deodorizing filter uses fine ceramic particles to capture and remove odors. An apple catechin filter isolates and deactivates mold, bacteria, and dust. This combination creates a clean and healthy air flow from your indoor unit.
  • Timer Function
  • You can set a sleep timer to gradually decrease the output after you have gone to bed. It also supports a 24-hour timer, allowing you to set on and off time once per day. These timers allow you to curtail energy use without sacrificing comfort.
  • Dehumidify and Cool
  • Dry Mode demonstrates the Halcyon HFI's versatility. In addition to providing moderate cooling, dry mode also dehumidifies your zone.
  • Airflow Control
  • Swing mode disperses conditioned air evenly across your zone, resulting in consistent and thorough heating and cooling. Swing mode can be used with this unit's auto fan mode and auto changeover for automated comfort in rooms of all shapes and sizes.
  • Power Diffuser
  • This unit includes an airflow louver known as a power diffuser that directs heated air to the floor of the room and cold air outwards to blanket the room. This diffuser uses temperature sensors to ensure that your airflow is ideal in any application.
  • Economy Mode
  • The Halcyon HFI features an Economy Mode restricts the unit's maximum output to decrease energy use and increase savings. This mode also increases the unit's dehumidification capabilities during cooling operations and in Dry Mode.
  • Recommended line set sizes for indoor unit connectivity:
  • ASU12RLF1: 1/4" x 3/8" Line Set
  • ASU7RLF1: 1/4" x 3/8" Line Set (Qty 2)

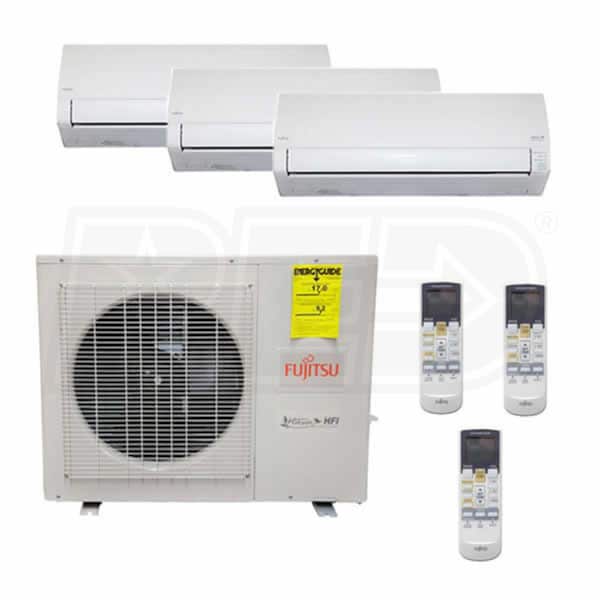

  • Product Includes
    • (1) Fujitsu - 24k BTU - Outdoor Condenser - For 2-3 Zones (AOU24RLXFZ)
    • (1) Fujitsu 12k BTU Wall Mounted Unit - For Multi or Single-Zone (ASU12RLF1)
    • (2) Fujitsu 7k BTU Wall Mounted Unit - For Multi-Zone (ASU7RLF1)
    Product Note
    This product requires the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Cable - This durable, insulated cable provides power to your indoor units from your outdoor condenser.
    • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
California residents see
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Fujitsu - 24k BTU - Outdoor Condenser - For 2-3 Zones (AOU24RLXFZ)
  • (1) Fujitsu 12k BTU Wall Mounted Unit - For Multi or Single-Zone (ASU12RLF1)
  • (2) Fujitsu 7k BTU Wall Mounted Unit - For Multi-Zone (ASU7RLF1)
F3H24W07071200
specs product image PID-65952
General Information
Type
Wall Mounted
Product Line
Halcyon HFI
Operating Mode Learn More
Heating and Cooling
Number of Zones Learn More
3
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
7 + 7 + 12
Outdoor Unit Size
24000 BTU
DOE Regional Compliance Learn More
Nationwide
Performance
Cooling Capacity
22000 BTU
Heating Capacity
24000 BTU
SEER Learn More
18.0
EER Learn More
12.5
HSPF Learn More
9.5
Cooling Power Input
1760 Watts
Heating Power Input
1720 Watts
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
5 F
Minimum Outdoor Temperature for Cooling
14 F
Dimensions
Product Weight
191 Pounds
Shipping Weight
191 Pounds
Certifications
AHRI Certified
Yes
AHRI Reference Number
6998279
AOU24RLXFZ
General Information
Type
Outdoor Condenser
Product Line
Halcyon HFI
Operating Mode Learn More
Heating and Cooling
Maximum Number of Zones
3
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
24000
Maximum Sound Level Learn More
49 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
20 Amps
Dimensions
Maximum Line Length
164 Feet
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
3/8 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
3/8 Inch
Line Set C Liquid Connection
1/4 Inch
Line Set C Gas Connection
1/2 Inch
Product Height
27 9/16 Inches
Product Width
35 7/16 Inches
Product Depth
13 Inches
Product Weight
124 Pounds
Shipping Height
32 7/8 Inches
Shipping Width
41 5/16 Inches
Shipping Depth
17 1/2 Inches
Shipping Weight
139 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
Compressor Warranty
7 Years
ASU12RLF1
General Information
Type
Wall Mounted
Product Line
Halcyon HFI
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More
12
Installation Location
Indoor
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Maximum Air Flow
388 CFM
Minimum Air Flow
182 CFM
Minimum Sound Level
21 dB
Maximum Sound Level Learn More
40 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
10 1/2 Inches
Product Width
33 1/16 Inches
Product Depth
8 Inches
Product Weight
23 Pounds
Shipping Height
10 5/8 Inches
Shipping Width
34 13/16 Inches
Shipping Depth
14 3/4 Inches
Shipping Weight
23 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
ASU7RLF1
General Information
Type
Wall Mounted
Product Line
Halcyon HFI
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More
7
Installation Location
Indoor
Performance
Cooling BTU
7000
Cooling Capacity
7000 BTU
Maximum Air Flow
330 CFM
Minimum Air Flow
182 CFM
Minimum Sound Level
21 dB
Maximum Sound Level Learn More
36 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
10 9/16 Inches
Product Width
33 1/16 Inches
Product Depth
8 Inches
Product Weight
23 Pounds
Shipping Width
34 13/16 Inches
Shipping Height
10 5/8 Inches
Shipping Depth
14 3/4 Inches
Shipping Weight
23 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
