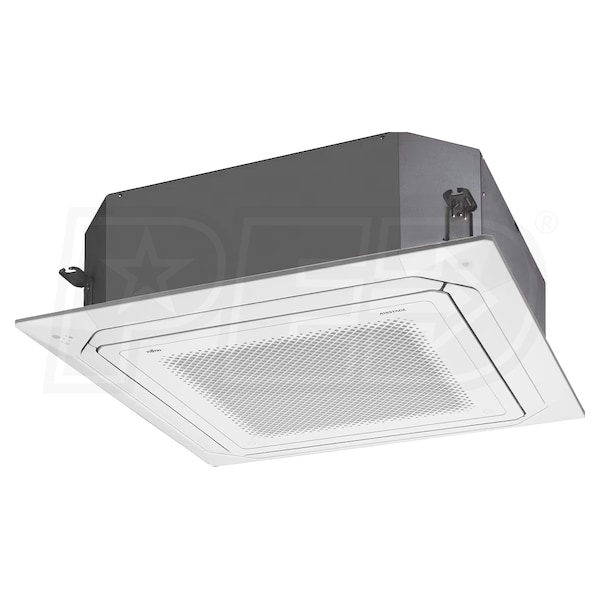

Fujitsu - 24k BTU - Ceiling Cassette with Grille - Single-Zone Only

Model:

AUU24RGLX

Write A Review
Not For Individual Sale
Continue Shopping With These Categories
Fujitsu - 24k BTU - Ceiling Cassette with Grille - Single-Zone Only
Fujitsu - 24k BTU - Ceiling Cassette with Grille - Single-Zone Only
Model: AUU24RGLX
Not For Individual Sale
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

    Product Includes
    • (1) Fujitsu 24k Cassette - Single Zone Only (AUU24RGLX-NG)
    • (1) Fujitsu Grille White (UTG-GCGF)
    Product Note
    This product requires a compatible Fujitsu mini split indoor units and the following accessories for indoor unit installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Connecting Cable - This durable, insulated cable provides power to your indoor units from your outdoor condenser.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Fujitsu 24k Cassette - Single Zone Only (AUU24RGLX-NG)
  • (1) Fujitsu Grille White (UTG-GCGF)
AUU24RGLX
specs product image PID-123404
General Information
Type
Ceiling Cassette
Product Line
Halcyon
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Remote Control
Wired
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
24000
Installation Location
Indoor
Performance
Cooling BTU
24000
Cooling Capacity
24000 BTU
Maximum Air Flow
677 CFM
Minimum Air Flow
512 CFM
Minimum Sound Level
29 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
35 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
5/8 Inch
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
AUU24RGLX-NG
General Information
Type
Ceiling Cassette
Product Line
Halcyon
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Remote Control
Wired
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
24000
Installation Location
Indoor
Performance
Cooling BTU
24000
Cooling Capacity
24000 BTU
Maximum Air Flow
677 CFM
Minimum Air Flow
512 CFM
Minimum Sound Level
29 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
35 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
5/8 Inch
Product Height
11 5/16 Inches
Product Width
33 1/16 Inches
Product Depth
33 1/16 Inches
Product Weight
53 Pounds
Shipping Height
13 3/8 Inches
Shipping Width
37 13/16 Inches
Shipping Depth
37 3/8 Inches
Shipping Weight
62 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
