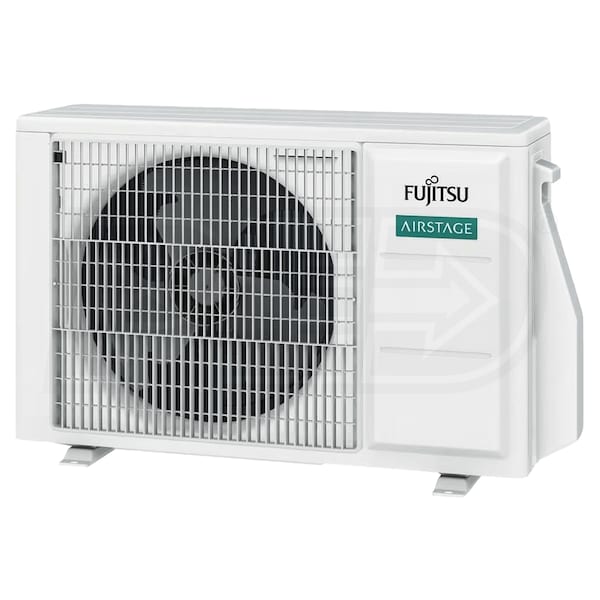

Fujitsu - 24k BTU - LPAS1 Outdoor Condenser - Single Zone Only

Model:

AOUH24LPAS1

Write A Review
Not For Individual Sale
Continue Shopping With These Categories
Fujitsu - 24k BTU - LPAS1 Outdoor Condenser - Single Zone Only
Fujitsu - 24k BTU - LPAS1 Outdoor Condenser - Single Zone Only
Model: AOUH24LPAS1
$1,094.40
Was $1,152.00
Not For Individual Sale
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. This unit has an array of effective operating modes that allow you to customize operations to suit your comfort, making it an intelligent addition to any home or business.
  • Auto Changeover
  • The air conditioner switches between the cooling and heating modes automatically according to the set temperature and the room temperature.
  • Weekly & 24 hr. Timer
  • You can choose any day between Monday and Sunday, and can be set up to four ON Timers or OFF Timers in one day.
  • Auto Louver
  • Redirects airflow automatically with up/down and left/right motion.
  • Minimum Heat Mode
  • The room temperature can be maintained at 50 degrees fahrenheit so as to prevent the room temperature from falling too far.
  • Auto Restart
  • The air conditioner will then restart automatically in its previous mode when the power is restored.
  • Economy Mode
  • Economy operation mode allows you to save more energy by setting the room temperature to be little higher than the set-temp under cooling mode and lower than set-temp under heating mode.
  • Energy Saving Program (ESP)
  • With the ESP function, the system actively monitors occupancy and adjusts system settings accordingly to achieve optimum energy savings.
  • Wireless Remote control
  • The Wireless Remote Controller allows convenient control of indoor unit operation.
  • Outdoor Unit Low Noise Schedule
  • Limits compressor and fan speed during high speed operation for noise reduction purposes. It is effective when the surrounding area is quiet, such as in the night.
  • Product Note
    This product requires a compatible Fujitsu mini split indoor unit and the following accessories for indoor unit installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Outdoor Condenser Plastic Pad or Wall Bracket (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser. The bracket is a simple and sturdy way to mount your outdoor condenser off of the ground.
    • Adding these accessories to your order will provide a complete, ready-to-install mini split system.


    Fujitsu provides a 10-year parts and compressor warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at fujitsugeneral.com/us/support/downloads/halcyon/warranty.html.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

AOUH24LPAS1
specs product image PID-117415
General Information
Type
Outdoor Condenser
Product Line
LPAS1
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
24000
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
53 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
20 Amps
Dimensions
Maximum Line Length
66 Feet
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
24 7/8 Inches
Product Width
31 7/16 Inches
Product Depth
11 7/16 Inches
Product Weight
95 Pounds
Shipping Height
12 11/16 Inches
Shipping Width
42 7/16 Inches
Shipping Depth
13 5/8 Inches
Shipping Weight
104 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
