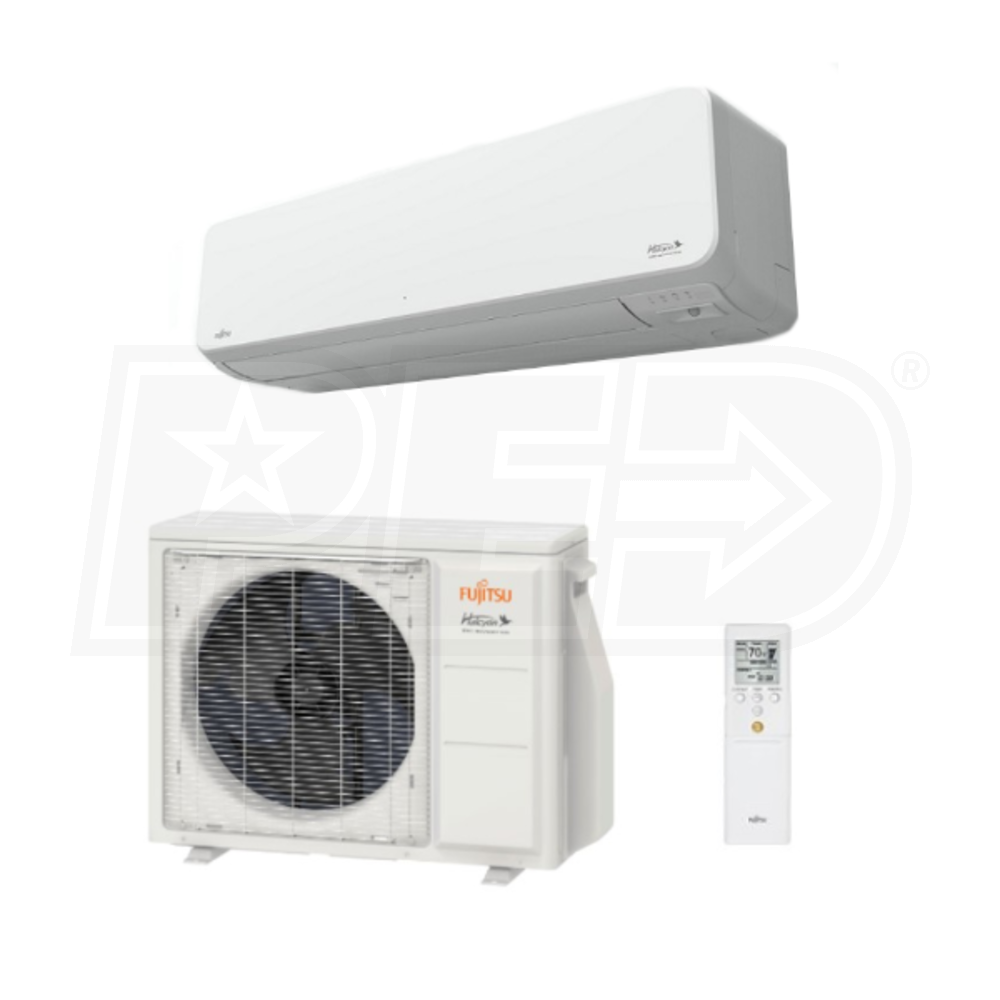

Fujitsu - 12k BTU Cooling + Heating - LZAH1 Wall Mounted Air Conditioning System - 29.4 SEER

Model:

12LZASH1

Write a Review
$2,017.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Factory-Direct
Ships in 3-4 Weeks
synchrony card logo
$337 / Month
Suggested monthly payments with 6 month financing.
Fujitsu - 12k BTU Cooling + Heating - LZAH1 Wall Mounted Air Conditioning System - 29.4 SEER
Fujitsu - 12k BTU Cooling + Heating - LZAH1 Wall Mounted Air Conditioning System - 29.4 SEER
Model: 12LZASH1
$2,017.00
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

    Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. Their experience and dedication can be seen in the LZAH1 wall mounted mini split system. The LZAH1 is ideal for applications where energy use and outdoor temperature are concerns; its 29.4 SEER rating is among the highest available and it features low ambient heating technology that allows it maintain operations in subzero Fahrenheit temperatures. The Fujitsu wall mounted designer mini split indoor unit has a sleek, modern design and a front panel that slides upwards to maintain its slim profile during operation. This system has an array of effective operating modes that allow you to customize operations to suit your comfort. The Fujitsu LZAH1 is a powerful, efficient addition to any home or business.
  • Wi-Fi Enabled
  • The Fujitsu ASUG12LZAS wall mounted unit comes equipped with a built-in Wi-Fi adapter. This allows you to control your unit through a Wi-Fi connected device.
  • Inverter Technology
  • The AOUG12LZAH1 outdoor condenser uses an inverter to drive the compressor, allowing it to match its output to the amount of heating or cooling required by a space, even as conditions change. This enables the system to maintain a more stable temperature.
  • Low Ambient Heating
  • Fujitsu's extra low temperature heating technology allows this condenser to safely maintain its rated capacity in outdoor temperatures as low as three degrees Fahrenheit. The XLTH outdoor condensers also have a base pan heater to prevent damage.
  • Advanced Filtration
  • The ASUG12LZAS unit has two filters for keeping your home, or business, safe and clean. An ion deodorizing filter uses fine ceramic particles to capture and remove odors and an apple catechin filter isolates and deactivates mold, bacteria, and dust.
  • Timer Function
  • This system offers seven day programmability with two unique on/off events on each individual day. This allows you to customize heating and cooling operations to suit your personal schedule, improving energy efficiency without compromising your home.
  • Product Includes
    • (1) Fujitsu - 12k - LZAH1 Outdoor Condenser - Single Zone Only (AOUG12LZAH1)
    • (1) Fujitsu - 12k - Wall Mounted Unit - Single Zone Only (ASUG12LZAS)
    Product Note
    This product requires the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Cable - This durable, insulated cable provides power to your indoor unit from your outdoor condenser.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Fujitsu - 12k - LZAH1 Outdoor Condenser - Single Zone Only (AOUG12LZAH1)
  • (1) Fujitsu - 12k - Wall Mounted Unit - Single Zone Only (ASUG12LZAS)
12LZASH1
specs product image PID-106475
General Information
Type
Wall Mounted
Product Line
Halcyon
Operating Mode Learn More
Heating and Cooling
Number of Zones Learn More
1
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
12
Outdoor Unit Size
12000 BTU
Line Set Size
1/4" x 3/8"
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Heating Capacity
16000 BTU
SEER Learn More
29.4
EER Learn More
15.2
HSPF Learn More
13.8
Minimum Operating Temperature
-15 F
Maximum Operating Temperature
14 F
Minimum Outdoor Temperature for Heating Learn More
-15 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
14.4 Amps
Recommended Breaker Size
15 Amps
Dimensions
Suction Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Weight
115 Pounds
Shipping Weight
132 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Warranty Learn More
5 Years
Compressor Warranty
10 Limited Years
AOUG12LZAH1
General Information
Type
Outdoor Condenser
Product Line
LZAH1
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
12000
Maximum Sound Level Learn More
47 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
-15 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Maximum Line Length
66 Feet
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
24 7/8 Inches
Product Width
31 7/16 Inches
Product Depth
11 7/16 Inches
Product Weight
86 Pounds
Shipping Height
27 1/4 Inches
Shipping Width
37 Inches
Shipping Depth
14 3/4 Inches
Shipping Weight
95 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
Compressor Warranty
7 Years
ASUG12LZAS
General Information
Type
Wall Mounted
Product Line
LZAS
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More
12
Installation Location
Indoor
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Maximum Air Flow
542 CFM
Minimum Air Flow
200 CFM
Minimum Sound Level
23 dB
Maximum Sound Level Learn More
43 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
11 1/16 Inches
Product Width
38 9/16 Inches
Product Depth
9 7/16 Inches
Product Weight
29 Pounds
Shipping Height
12 11/16 Inches
Shipping Width
42 7/16 Inches
Shipping Depth
13 1/16 Inches
Shipping Weight
37 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
