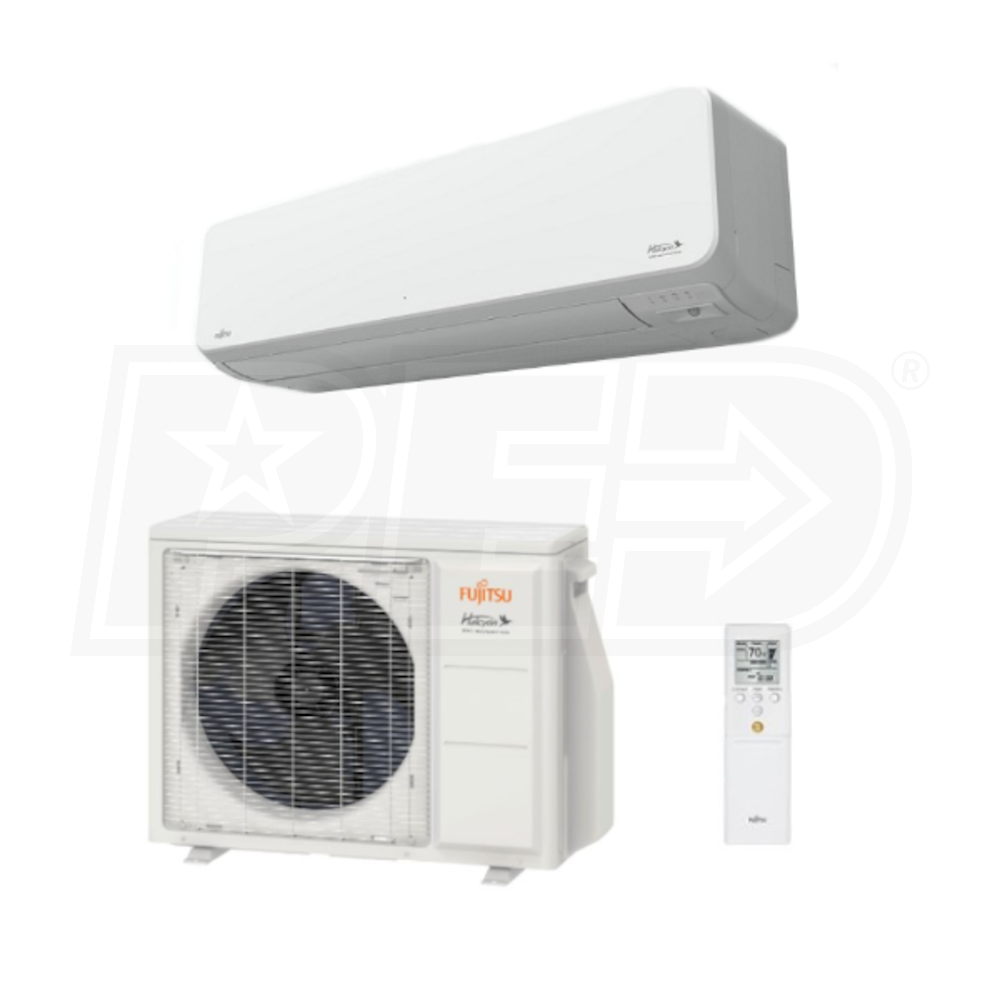

Fujitsu - 9k BTU Cooling + Heating - LZAS Wall Mounted Air Conditioning System - 33.1 SEER

Model:

09LZAS1

Write a Review
$1,665.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Factory-Direct
Ships in 3-4 Weeks
synchrony card logo
$278 / Month
Suggested monthly payments with 6 month financing.
Fujitsu - 9k BTU Cooling + Heating - LZAS Wall Mounted Air Conditioning System - 33.1 SEER
Fujitsu - 9k BTU Cooling + Heating - LZAS Wall Mounted Air Conditioning System - 33.1 SEER
Model: 09LZAS1
$1,665.00
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

    Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. Their experience and dedication can be seen in the LZAS wall mounted mini split system. The LZAS is ideal for applications where energy use is a concern; its 33.1 SEER rating is among the highest available. The Fujitsu wall mounted designer mini split indoor unit has a sleek, modern design and a front panel that slides upwards to maintain its slim profile during operation. This system has an array of effective operating modes that allow you to customize operations to suit your comfort. The Fujitsu LZAS is a powerful, efficient addition to any home or business.
  • Wi-Fi Enabled
  • The Fujitsu ASUG09LZAS wall mounted unit comes equipped with a built-in Wi-Fi adapter. This allows you to control your unit through a Wi-Fi connected device.
  • Inverter Technology
  • The AOUG09LZAS1 outdoor condenser uses an inverter to drive the compressor, allowing it to match its output to the amount of heating or cooling required by a space, even as conditions change. This enables the system to maintain a more stable temperature.
  • Low Ambient Heating
  • Fujitsu's low temperature heating technology allows this condenser to safely maintain its rated capacity in outdoor temperatures as low as 20 degrees Fahrenheit. The AOUG09LZAS1 can operate in heating mode in conditions as low as -5 degrees Fahrenheit.
  • Advanced Filtration
  • The ASUG09LZAS unit has two filters for keeping your home, or business, safe and clean. An ion deodorizing filter uses fine ceramic particles to capture and remove odors and an apple catechin filter isolates and deactivates mold, bacteria, and dust.
  • Timer Function
  • This system offers seven day programmability with two unique on/off events on each individual day. This allows you to customize heating and cooling operations to suit your personal schedule, improving energy efficiency without compromising your home.
  • Product Includes
    • (1) Fujitsu - 9k - LZAS1 Outdoor Condenser - Single Zone Only (AOUG09LZAS1)
    • (1) Fujitsu - 9k - Wall Mounted Unit - Single Zone Only (ASUG09LZAS)
    Product Note
    This product requires the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Cable - This durable, insulated cable provides power to your indoor unit from your outdoor condenser.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Fujitsu - 9k - LZAS1 Outdoor Condenser - Single Zone Only (AOUG09LZAS1)
  • (1) Fujitsu - 9k - Wall Mounted Unit - Single Zone Only (ASUG09LZAS)
09LZAS1
specs product image PID-106471
General Information
Type
Wall Mounted
Product Line
Halcyon
Operating Mode Learn More
Heating and Cooling
Number of Zones Learn More
1
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
9
Outdoor Unit Size
9000 BTU
Line Set Size
1/4" x 3/8"
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Heating Capacity
12000 BTU
SEER Learn More
33.1
EER Learn More
18
HSPF Learn More
14.2
Minimum Operating Temperature
-5 F
Maximum Operating Temperature
14 F
Minimum Outdoor Temperature for Heating Learn More
-5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
13.4 Amps
Recommended Breaker Size
15 Amps
Dimensions
Suction Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Weight
113 Pounds
Shipping Weight
132 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Warranty Learn More
5 Years
Compressor Warranty
10 Limited Years
AOUG09LZAS1
General Information
Type
Outdoor Condenser
Product Line
LZAS
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
9000
Maximum Sound Level Learn More
47 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
-5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Maximum Line Length
66 Feet
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
24 7/8 Inches
Product Width
31 7/16 Inches
Product Depth
11 7/16 Inches
Product Weight
84 Pounds
Shipping Height
27 1/4 Inches
Shipping Width
37 Inches
Shipping Depth
14 3/4 Inches
Shipping Weight
95 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
Compressor Warranty
7 Years
ASUG09LZAS
General Information
Type
Wall Mounted
Product Line
LZAS
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More
9
Installation Location
Outdoor
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Maximum Air Flow
542 CFM
Minimum Air Flow
206 CFM
Minimum Sound Level
23 dB
Maximum Sound Level Learn More
43 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
11 1/16 Inches
Product Width
38 9/16 Inches
Product Depth
9 7/16 Inches
Product Weight
29 Pounds
Shipping Height
12 11/16 Inches
Shipping Width
42 7/16 Inches
Shipping Depth
13 1/16 Inches
Shipping Weight
37 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
