Flanders 225RT-1520C
Flanders 225RT-1520C
Hover to zoom
1 of 1

Flanders Series 225 - 15'' x 20'' x 1'' - Ring Panel Filters - MERV 7 - Qty 24

Model:

225RT-1520C

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Flanders Series 225  - 15'' x 20'' x 1'' - Ring Panel Filters - MERV 7 - Qty 24
Flanders Series 225 - 15'' x 20'' x 1'' - Ring Panel Filters - MERV 7 - Qty 24
Model: 225RT-1520C
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals

Features

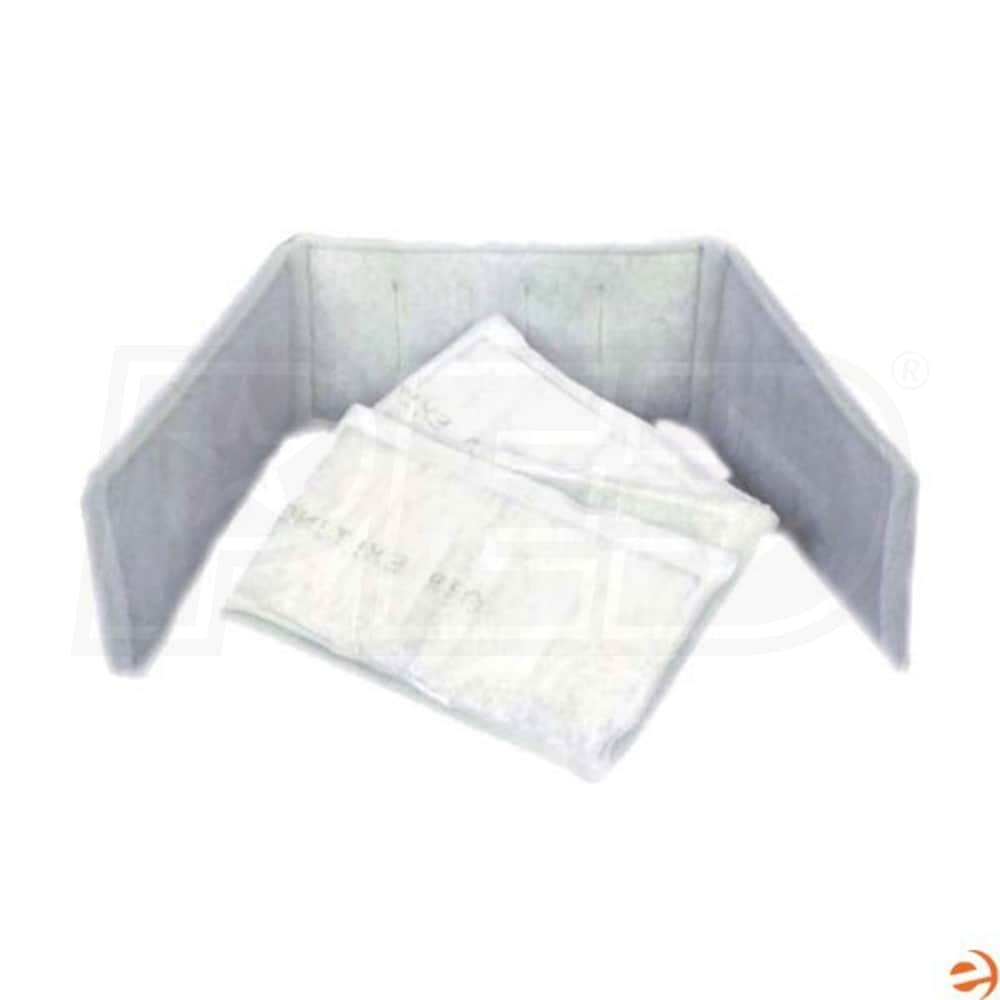

    The Flanders 225 Series 225RT-1520C Ring Panel Filter is a two-ply polyester panel with a 7 MERV efficiency rating. These 15" x 20'' filters are constructed by heat sealing layers of synthetic filtering media over a corrosion-resistant steel support frame. 225RT filters feature an overcut of media forming a built-in gasket between the wire frame and the holding frame. The overcut prevents air from bypassing your filter and secures your filter in place, allowing it to be installed without the use of retainer fasteners. 225RT filters are constructed with a 1" nominal media using a 3/4" nominal polyester media with internal tackification on the upstream and a 1/4" nominal white polyester media on the downstream. These filters are UL 900 class 2 listed for flammability and are 100% moisture resistant, extending the life of your filter.
  • Sleeve Panel
  • In a sleeve panel, one end is left unsealed allowing the interior support frame to be removed and reused while the soiled media is disposed.
  • UL 900 Class 2 Listed
  • Filters are flame resistant. When clean, air filters do not produce flame or extensive sparks when subjected to a flame exposure test.
  • 100% Moisture Resistant
  • Moisture resistance prevents potential damage due to dampness, extending the service life of your filter.
  • Galvanized Wire Frame
  • A galvanized, corrosion-resistant wire frame provides added support to your filter.
  • Two-Ply Media
  • An extra layer of media provides an added level of filtering.

Specifications

225RT-1520C
specs product image PID-28478
General Information
Type
Panel Filter
Product Line
225
Material
Polyester
Box Quantity
24
Performance
Filter Efficiency
7 MERV
Dimensions
Nominal Height
15 Inches
Nominal Width
20 Inches
Nominal Depth
1 Inch
Product Weight
17.06 Pounds
