Fantech VHR - 200 CFM - Heat Recovery Ventilator (HRV) - Top Ports - 6" Duct - Recirculation

Fantech VHR - 200 CFM - Heat Recovery Ventilator (HRV) - Top Ports - 6" Duct - Recirculation
Model: VHR2005R
Product Discontinued
Sorry, this product is no longer available.
There Is A Newer Model Of This Item
Discontinued

(as of 09:27 CST - Details) Sales Tax Extra $1,311.00Visit Site
Only 1 In-Stock
Ships Tuesday, Jan 23rd
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Free Freight
Free Freight
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features

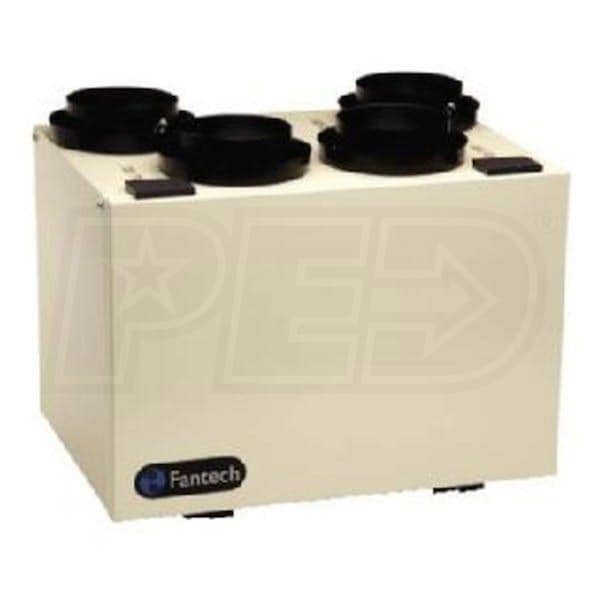

    The Fantech VHR 2005R Heat Recovery Ventilator (HRV) is a 200 CFM heat recovery ventilator with top ports and recirculation defrost capabilities. The VHR 2005R is a 120 volt unit designed with 4 ports with 6" ducts. HRVs make your heating and cooling systems more efficient by transferring heat between fresh and stale air during ventilation. Its compact size and wall bracket make this HRV easy to mount. The VHR 2005R Heat Recovery Ventilator (HRV) features an aluminum core, washable electrostatic filters, and electronic control board.

    Product Features

    Heat Recovery Core
    An aluminum heat recovery core provides improved heat transfer capacity while taking up less space than traditional cores.

    Winter Guard
    A built-in recirculating defrost system allows for consistent, reliable operation during the winter months.

    Electronic Control Board
    Microprocessor technology efficiently controls operation of the unit making it easy to connect HVAC equipment and wall controls.

    Washable Electrostatic Filters
    Electrostatic filters capture airborne particles traveling through the ventilator. Easily washable, these filters can be repeatedly reused before replacement.

    Product Includes
    • (1) VHR 2005R Heat Recovery Ventilator (HRV)
    • (1) Mounting Chains
Specifications
General Information
Type
HRV
Product Line
VHR
Defrost Type ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
Recirculation
Ports Quantity
4
Port Location
Top
UPC
650737214449
Performance
Sensible Recovery Efficiency
62 %
Apparent Sensible Effectiveness
77 %
Minimum Air Flow
80 CFM
Maximum Air Flow
200 CFM
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Duct Connection
6 Inches
Product Height
20.5 Inches
Product Width
28 Inches
Product Depth
17.25 Inches
Product Weight
45 Pounds
Shipping Height
19 Inches
Shipping Width
26 Inches
Shipping Length
33 Inches
Shipping Weight
45 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Motor Warranty
7 Years
Certifications
CSA Listed
Yes
Features
Features

    The Fantech VHR 2005R Heat Recovery Ventilator (HRV) is a 200 CFM heat recovery ventilator with top ports and recirculation defrost capabilities. The VHR 2005R is a 120 volt unit designed with 4 ports with 6" ducts. HRVs make your heating and cooling systems more efficient by transferring heat between fresh and stale air during ventilation. Its compact size and wall bracket make this HRV easy to mount. The VHR 2005R Heat Recovery Ventilator (HRV) features an aluminum core, washable electrostatic filters, and electronic control board.

    Product Features

    Heat Recovery Core
    An aluminum heat recovery core provides improved heat transfer capacity while taking up less space than traditional cores.

    Winter Guard
    A built-in recirculating defrost system allows for consistent, reliable operation during the winter months.

    Electronic Control Board
    Microprocessor technology efficiently controls operation of the unit making it easy to connect HVAC equipment and wall controls.

    Washable Electrostatic Filters
    Electrostatic filters capture airborne particles traveling through the ventilator. Easily washable, these filters can be repeatedly reused before replacement.

    Product Includes
    • (1) VHR 2005R Heat Recovery Ventilator (HRV)
    • (1) Mounting Chains
Specifications
General Information
Type
HRV
Product Line
VHR
Defrost Type ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
Recirculation
Ports Quantity
4
Port Location
Top
UPC
650737214449
Performance
Sensible Recovery Efficiency
62 %
Apparent Sensible Effectiveness
77 %
Minimum Air Flow
80 CFM
Maximum Air Flow
200 CFM
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Duct Connection
6 Inches
Product Height
20.5 Inches
Product Width
28 Inches
Product Depth
17.25 Inches
Product Weight
45 Pounds
Shipping Height
19 Inches
Shipping Width
26 Inches
Shipping Length
33 Inches
Shipping Weight
45 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Motor Warranty
7 Years
Certifications
CSA Listed
Yes
Product Specs
+
Specifications
General Information
Type
HRV
Product Line
VHR
Defrost Type ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
Recirculation
Ports Quantity
4
Port Location
Top
UPC
650737214449
Performance
Sensible Recovery Efficiency
62 %
Apparent Sensible Effectiveness
77 %
Minimum Air Flow
80 CFM
Maximum Air Flow
200 CFM
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Duct Connection
6 Inches
Product Height
20.5 Inches
Product Width
28 Inches
Product Depth
17.25 Inches
Product Weight
45 Pounds
Shipping Height
19 Inches
Shipping Width
26 Inches
Shipping Length
33 Inches
Shipping Weight
45 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Motor Warranty
7 Years
Certifications
CSA Listed
Yes
