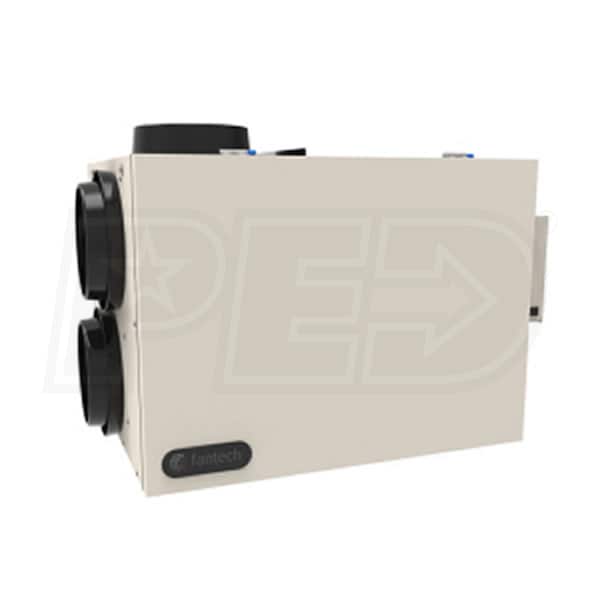

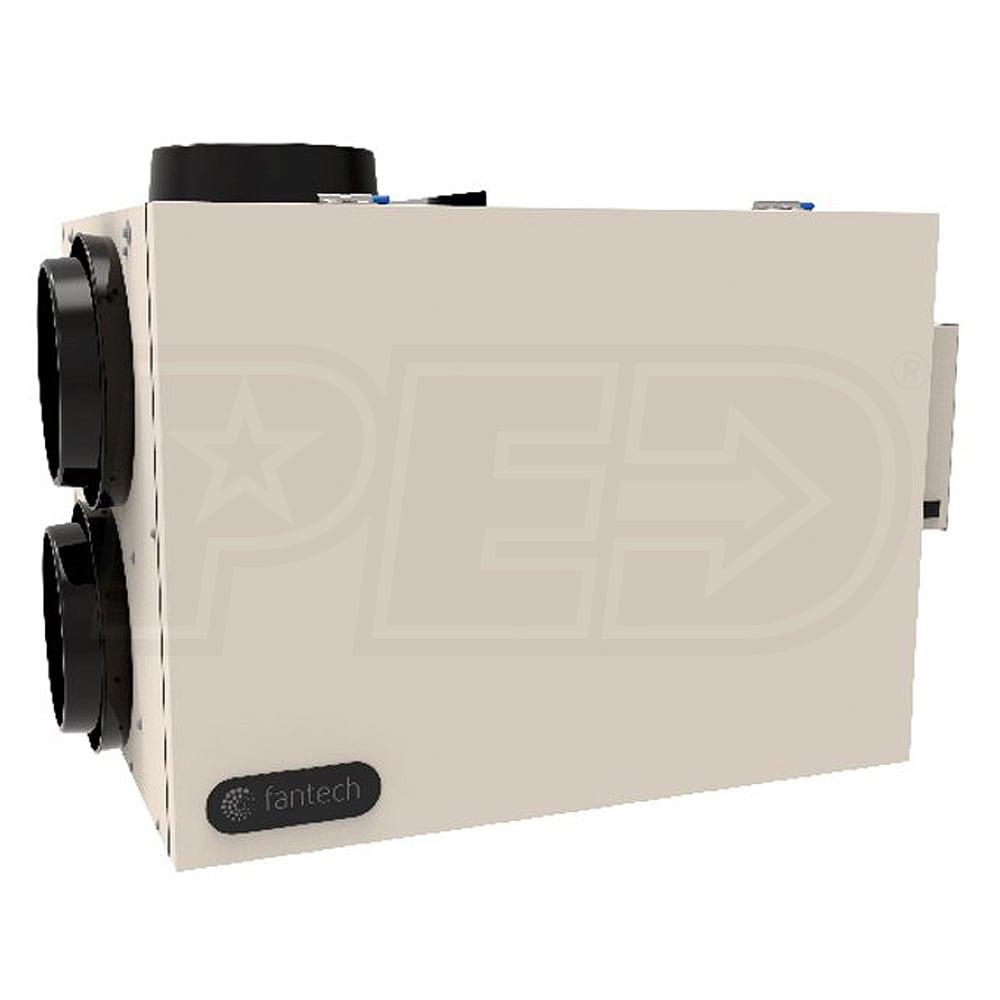

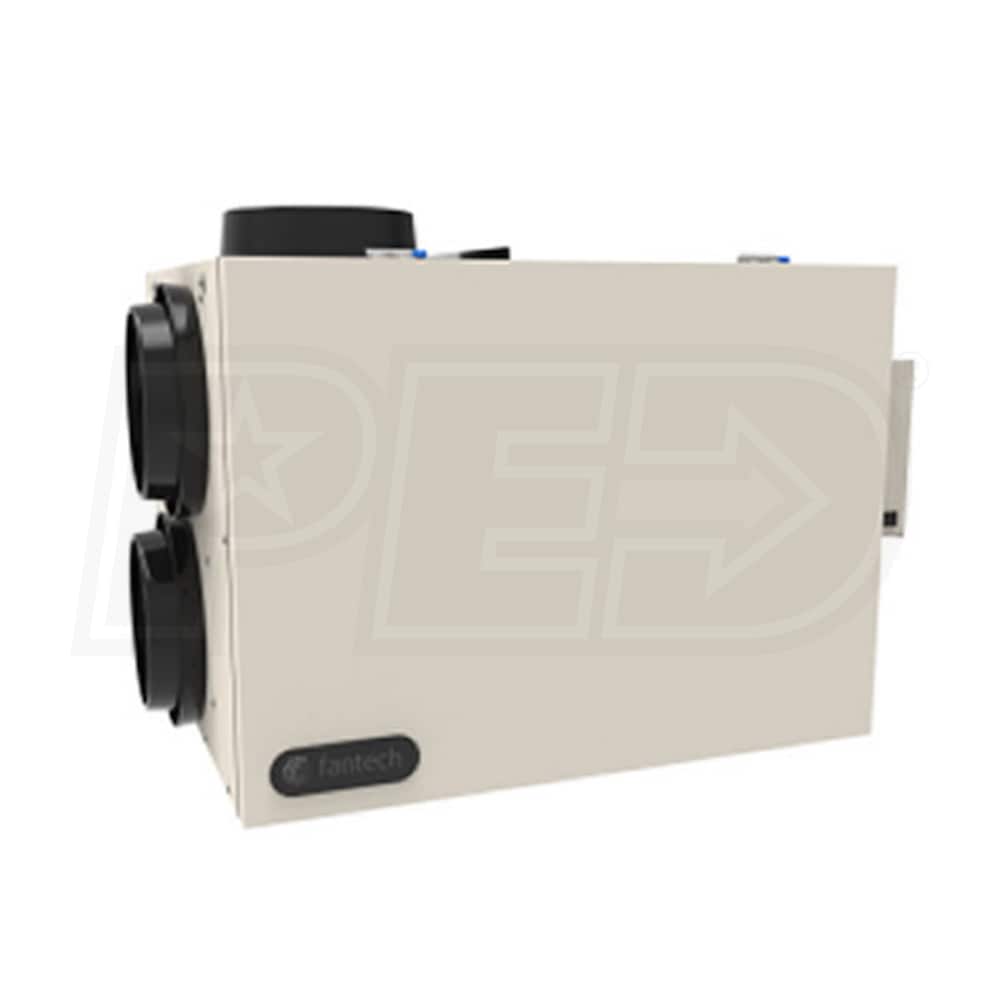

Fantech SHR - 267 CFM - Heat Recovery Ventilator (HRV) - Side Ports - 8" Duct - Recirculation Defrost
Model:
SHR260RD
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Heat Recovery Core
- An aluminum heat recovery core provides improved heat transfer capacity while taking up less space than traditional cores.
- Winter Guard
- A built-in recirculating defrost system allows for consistent, reliable operation during the winter months.
- Controls
- An External rocker switch featuring three positions (Low/Stand By/Medium) that allows for simple control of air flow.
- Washable Electrostatic Filters
- Electrostatic filters capture airborne particles traveling through the ventilator. Easily washable, these filters can be repeatedly reused before replacement.
- Product Includes
- SHR 260RD Heat Recovery Ventilator (HRV)
- Mounting Bolts
The Fantech SHR 260RD Heat Recovery Ventilator (HRV) is a 267 CFM heat recovery ventilator with side ports and recirculation defrost capabilities. The SHR 260RD is a 120 volt unit designed with 4 ports with 8" ducts. HRVs make your heating and cooling systems more efficient by transferring heat between fresh and stale air during ventilation. Its compact size and wall bracket make this HRV easy to mount. The SHR 260RD Heat Recovery Ventilator (HRV) features an aluminum core, washable electrostatic filters and internal recirculation defrost.
Specifications
SHR260RD
Overview
Product Category
Heat Recovery Ventilators (HRVs)
UPC
650737992989
General Information
Type
HRV
Product Line
SHR
Product Category
Heat Recovery Ventilators (HRVs)
Defrost Type
Defrost Type
ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
Recirculation
Ports Quantity
4
Port Location
Side/Top
Performance
Maximum Air Flow
309 CFM
Apparent Sensible Effectiveness
77 %
Minimum Air Flow
105 CFM
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Duct Connection
8 Inches
Product Height
20 1/2 Inches
Product Width
27 7/8 Inches
Product Depth
25 1/8 Inches
Product Weight
80 Pounds
Shipping Height
25 Inches
Shipping Width
26 Inches
Shipping Length
35 Inches
Shipping Weight
80 Pounds
Certifications
CSA Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Motor Warranty
7 Years
