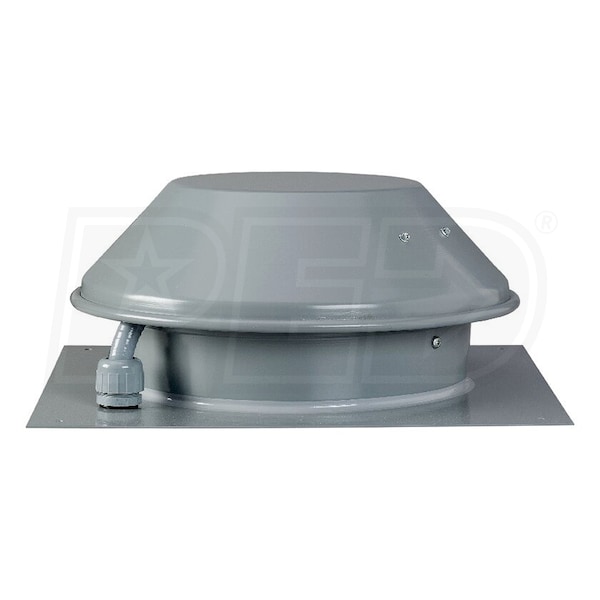

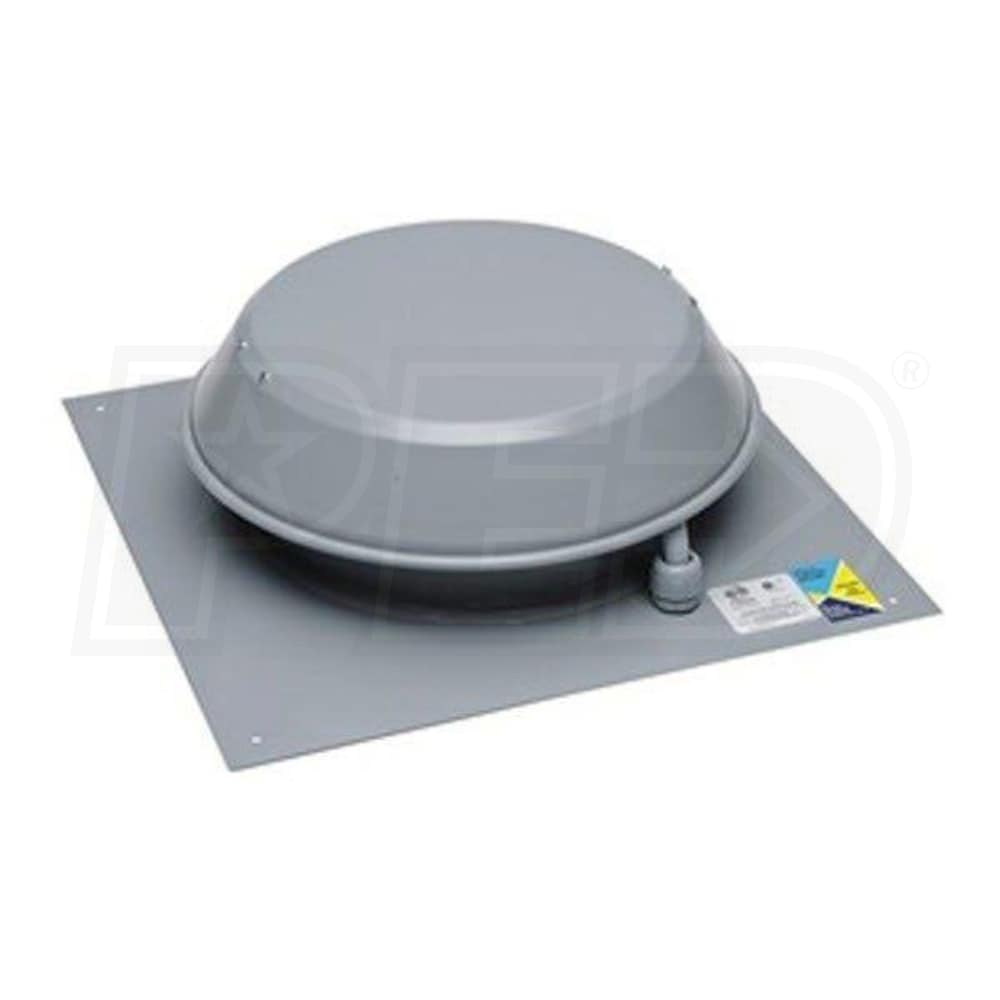

Fantech RE - 116 CFM - Exterior Duct Fan - Roof Mount - 4-5" Duct

Fantech RE - 116 CFM - Exterior Duct Fan - Roof Mount - 4-5" Duct
Our Price
Compare Prices
Shipping Info
Model: RE54
$176.00
Ships in 3-4 Weeks
Holiday Shipping Schedule
Holiday Schedule -
Mount Type
Max Air Flow (CFM)

Ships in 3-4 Weeks
Shipping Info
Shipping Info
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    Featuring a galvanized steel housing, the Fantech RE 54 Centrifugal Exterior Duct Fan is the perfect solution for direct through-ceiling ventilation with quiet operation. This 115 volt model can produce a maximum airflow of up to 116 CFM. The RE 54 is constructed with an adjustable 4" to 5" round duct. RE Series fans are designed for residential use. RE fan motors mount on flat or pitched rooftops and can operate with air temperatures up to 140 degrees Fahrenheit. RE models are designed with a flat base for direct flashing to the roof.
  • Permanently Lubricated Sealed Ball Bearings
  • Permanently lubricated sealed ball bearings extend the service life of your fan.
  • Thermal Overload Protection
  • Thermal overload protection automatically resets the fan when temperatures get too high, avoiding potential damage to the unit due to overheating.
  • 100% Speed Controllable
  • On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
  • External Rotor Motor
  • An external rotor motor allows the fan to operate in high-moisture or dust-laden areas.
Specifications
General Information
Product Line
RE
Mount Type
Roof
Housing Material
Galvanized Steel
UPC
650737420406
Performance
Maximum Air Flow
116 CFM
Maximum Sound Level (Sones) ? The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
3.5
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.18 Amps
Dimensions
Duct Connection
4 Inches
Product Height
6 Inches
Product Width
15 1/2 Inches
Product Depth
15 1/2 Inches
Product Weight
11 Pounds
Shipping Height
14 Inches
Shipping Width
20 Inches
Shipping Length
20 Inches
Shipping Weight
11 Pounds
Certifications
CSA Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Features
Features
    Featuring a galvanized steel housing, the Fantech RE 54 Centrifugal Exterior Duct Fan is the perfect solution for direct through-ceiling ventilation with quiet operation. This 115 volt model can produce a maximum airflow of up to 116 CFM. The RE 54 is constructed with an adjustable 4" to 5" round duct. RE Series fans are designed for residential use. RE fan motors mount on flat or pitched rooftops and can operate with air temperatures up to 140 degrees Fahrenheit. RE models are designed with a flat base for direct flashing to the roof.
  • Permanently Lubricated Sealed Ball Bearings
  • Permanently lubricated sealed ball bearings extend the service life of your fan.
  • Thermal Overload Protection
  • Thermal overload protection automatically resets the fan when temperatures get too high, avoiding potential damage to the unit due to overheating.
  • 100% Speed Controllable
  • On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
  • External Rotor Motor
  • An external rotor motor allows the fan to operate in high-moisture or dust-laden areas.
Specifications
General Information
Product Line
RE
Mount Type
Roof
Housing Material
Galvanized Steel
UPC
650737420406
Performance
Maximum Air Flow
116 CFM
Maximum Sound Level (Sones) ? The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
3.5
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.18 Amps
Dimensions
Duct Connection
4 Inches
Product Height
6 Inches
Product Width
15 1/2 Inches
Product Depth
15 1/2 Inches
Product Weight
11 Pounds
Shipping Height
14 Inches
Shipping Width
20 Inches
Shipping Length
20 Inches
Shipping Weight
11 Pounds
Certifications
CSA Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
