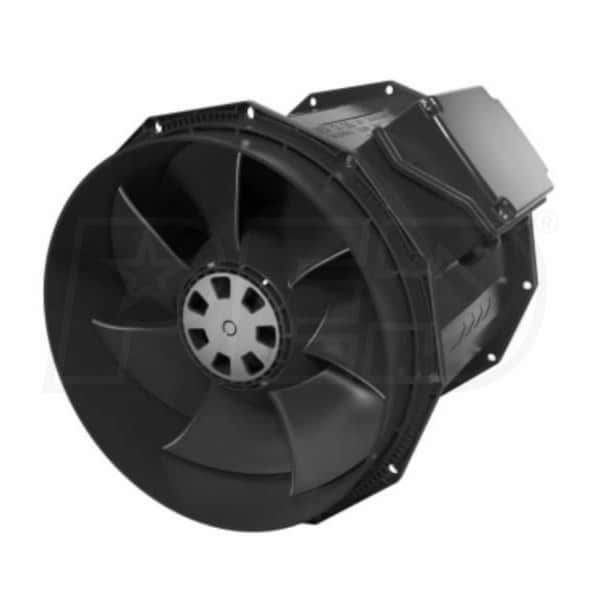

Fantech prioAir - 1156 CFM at 0.2" Static Pressure - Inline Duct Fan - 10" Duct - ECM Motor - 120V

Fantech prioAir - 1156 CFM at 0.2" Static Pressure - Inline Duct Fan - 10" Duct - ECM Motor - 120V
Our Price
Compare Prices
Shipping Info
Model: prioAir 10 EC
$440.00

Only 3 In-Stock
Ships Monday, Oct 21st
Shipping Crate Icon
Free Shipping
Duct Diameter
Efficiency
Only 3 In-Stock
Ships Monday, Oct 21st
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    The prioAir 10 EC inline duct fan pairs a revolutionary impeller design with a high efficiency EC motor to deliver high air flow with low power consumption. You can save even more by using the included speed control to exactly match your air flow requirements, or use an external 0-10Vdc to adjust the fan speed on demand. Combining these features with a speed output that can be used to monitor fan operation, the prioAir 10 EC is the perfect fan for any smart home or office.
  • Advanced Impeller Design
  • The aerodynamically optimized impeller in the prioAir 10 EC provides powerful, quiet airflow with excellent efficiency.
  • Air Tight Casing
  • The prioAir 10 EC features an air tight composite casing that ensures your air goes where you want it to go. The casing is also lightweight and corrosion-proof to provide excellent installation flexibility.
  • BMS Ready
  • The prioAir 10 EC is controllable via a 0-10 Vdc signal and sends a 10V speed output to make integration with a building management system a breeze.
  • High Efficiency Motor
  • The prioAir 10 EC features a high efficiency EC motor that both reduces energy consumption without compromising performance.
Specifications
General Information
Type
Duct Fan
Product Line
PrioAir
Mount Type
Inline
UPC
650737560683
Additional Model Numbers
PRIOAIR10EC, prioAir 10 EC
Performance
Maximum Air Flow
1237 CFM
Electrical Data
Voltage
120 Volts
Power Consumption
164 Watts
Phase
1
Frequency
60 Hz
Current Draw
2.4 Amps
Dimensions
Duct Connection
10 Inches
Product Diameter
11 1/16 Inches
Shipping Weight
10 Pounds
Certifications
UL Listed
Yes
Warranty Information
Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Features
Features
    The prioAir 10 EC inline duct fan pairs a revolutionary impeller design with a high efficiency EC motor to deliver high air flow with low power consumption. You can save even more by using the included speed control to exactly match your air flow requirements, or use an external 0-10Vdc to adjust the fan speed on demand. Combining these features with a speed output that can be used to monitor fan operation, the prioAir 10 EC is the perfect fan for any smart home or office.
  • Advanced Impeller Design
  • The aerodynamically optimized impeller in the prioAir 10 EC provides powerful, quiet airflow with excellent efficiency.
  • Air Tight Casing
  • The prioAir 10 EC features an air tight composite casing that ensures your air goes where you want it to go. The casing is also lightweight and corrosion-proof to provide excellent installation flexibility.
  • BMS Ready
  • The prioAir 10 EC is controllable via a 0-10 Vdc signal and sends a 10V speed output to make integration with a building management system a breeze.
  • High Efficiency Motor
  • The prioAir 10 EC features a high efficiency EC motor that both reduces energy consumption without compromising performance.
Specifications
General Information
Type
Duct Fan
Product Line
PrioAir
Mount Type
Inline
UPC
650737560683
Additional Model Numbers
PRIOAIR10EC, prioAir 10 EC
Performance
Maximum Air Flow
1237 CFM
Electrical Data
Voltage
120 Volts
Power Consumption
164 Watts
Phase
1
Frequency
60 Hz
Current Draw
2.4 Amps
Dimensions
Duct Connection
10 Inches
Product Diameter
11 1/16 Inches
Shipping Weight
10 Pounds
Certifications
UL Listed
Yes
Warranty Information
Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Product Specs
+
Specifications
General Information
Type
Duct Fan
Product Line
PrioAir
Mount Type
Inline
UPC
650737560683
Additional Model Numbers
PRIOAIR10EC, prioAir 10 EC
Performance
Maximum Air Flow
1237 CFM
Electrical Data
Voltage
120 Volts
Power Consumption
164 Watts
Phase
1
Frequency
60 Hz
Current Draw
2.4 Amps
Dimensions
Duct Connection
10 Inches
Product Diameter
11 1/16 Inches
Shipping Weight
10 Pounds
Certifications
UL Listed
Yes
Warranty Information
Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
