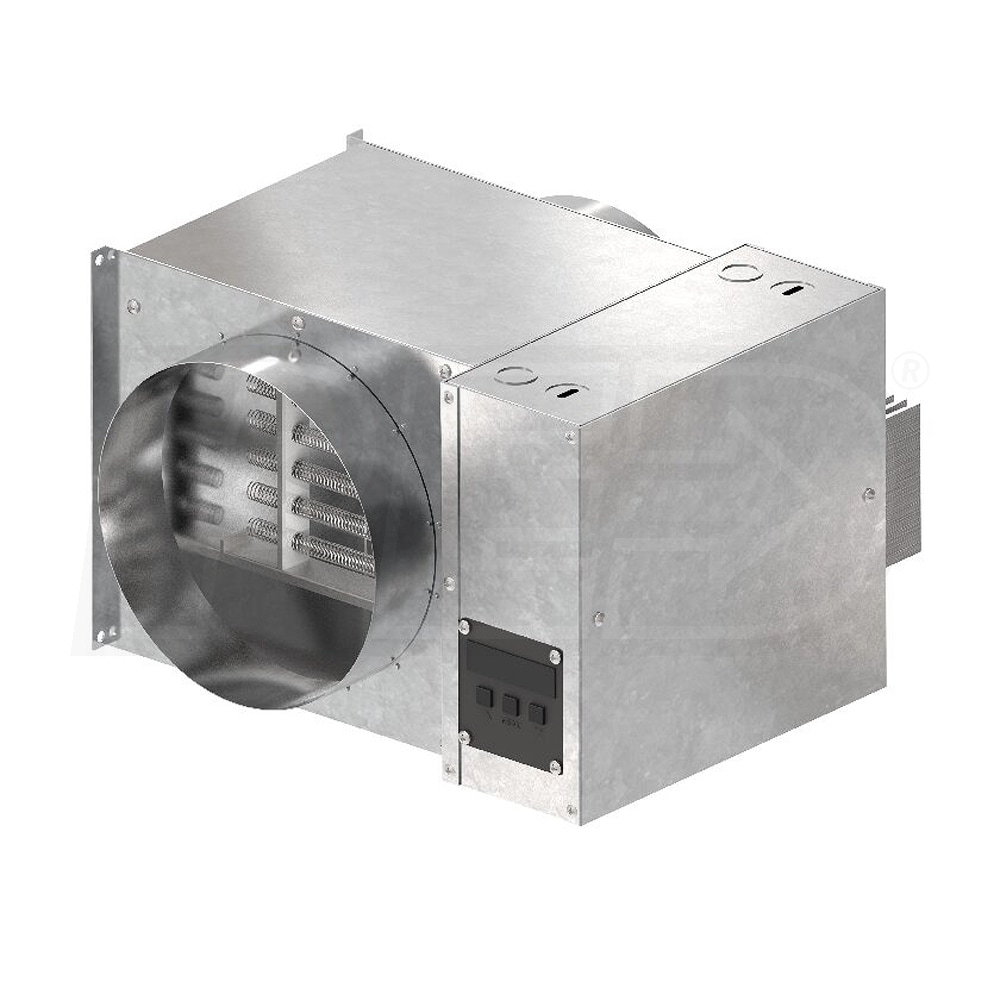

Fantech MUAH - Make-Up Air Heater - 20 kW - 12" Duct

Fantech MUAH - Make-Up Air Heater - 20 kW - 12" Duct
Model: MUAH20/12
$1,319.00
Only 1 In-Stock
Ships Thursday, Sep 20th
Free Shipping
Duct Diameter
Heating Capacity (kW)

Only 1 In-Stock
Ships Thursday, Sep 20th
Free Freight
Free Freight
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    The perfect addition for your Fantech Make-Up Air System, the MUAH 20/12 make-up air heater ensures that your air is not only fresh, but also warm. With a modulating element and on board temperature controller, the MUAH 20/12 will automatically adjust to changing air flow and incoming air temperature to maintain the make-up air and temperature set by the installer.
    Product Note
    • Compatible with the Fantech MUAS 2000.
    • The MUAH20/12 is not intended to provide space heating but warm cold incoming air before delivery.
Specifications
General Information
Product Line
MUAH
UPC
650737460112
Performance
Heating Capacity
68280 BTU
Heating Capacity (kW)
20 kW
Minimum Air Flow
600 CFM
Maximum Air Flow
1600 CFM
Electrical Data
Voltage
240 Volts
Phase
1
Frequency
60 Hz
Dimensions
Duct Connection
12 Inches
Product Width
21 Inches
Shipping Height
31 Inches
Shipping Width
40 Inches
Shipping Depth
14 Inches
Shipping Weight
75 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Heat Exchanger Warranty
5 Years
Features
Features
    The perfect addition for your Fantech Make-Up Air System, the MUAH 20/12 make-up air heater ensures that your air is not only fresh, but also warm. With a modulating element and on board temperature controller, the MUAH 20/12 will automatically adjust to changing air flow and incoming air temperature to maintain the make-up air and temperature set by the installer.
    Product Note
    • Compatible with the Fantech MUAS 2000.
    • The MUAH20/12 is not intended to provide space heating but warm cold incoming air before delivery.
Specifications
General Information
Product Line
MUAH
UPC
650737460112
Performance
Heating Capacity
68280 BTU
Heating Capacity (kW)
20 kW
Minimum Air Flow
600 CFM
Maximum Air Flow
1600 CFM
Electrical Data
Voltage
240 Volts
Phase
1
Frequency
60 Hz
Dimensions
Duct Connection
12 Inches
Product Width
21 Inches
Shipping Height
31 Inches
Shipping Width
40 Inches
Shipping Depth
14 Inches
Shipping Weight
75 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Heat Exchanger Warranty
5 Years
Product Specs
+
Specifications
General Information
Product Line
MUAH
UPC
650737460112
Performance
Heating Capacity
68280 BTU
Heating Capacity (kW)
20 kW
Minimum Air Flow
600 CFM
Maximum Air Flow
1600 CFM
Electrical Data
Voltage
240 Volts
Phase
1
Frequency
60 Hz
Dimensions
Duct Connection
12 Inches
Product Width
21 Inches
Shipping Height
31 Inches
Shipping Width
40 Inches
Shipping Depth
14 Inches
Shipping Weight
75 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Heat Exchanger Warranty
5 Years
