Fantech HERO - 173 CFM - Heat Recovery Ventilator (HRV) - Top Ports - 6
Fantech HERO - 173 CFM - Heat Recovery Ventilator (HRV) - Top Ports - 6" Duct - Recirculation Defrost
Model: HERO 150H-EC
Product Q&A
How-To Articles

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

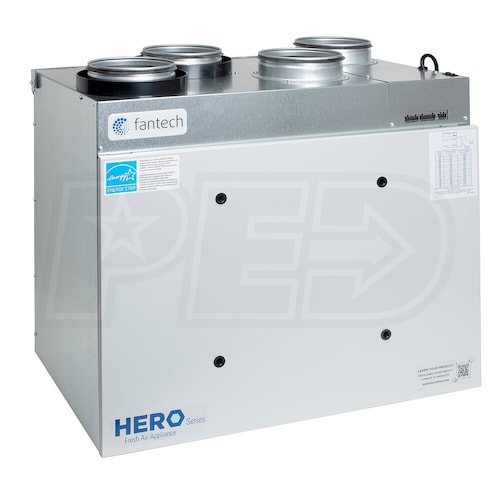

    The Fantech HERO 150H-EC Heat Recovery Ventilator (HRV) is a 173 CFM heat recovery ventilator with top ports and recirculation defrost capabilities. The HERO 150H-EC is a 120 volt unit designed with 4 ports with 6" ducts. HRVs make your heating and cooling systems more efficient by transferring heat between fresh and stale air during ventilation. Its compact size and wall bracket make this HRV easy to mount. The HERO 150H-EC Heat Recovery Ventilator (HRV) features a counterflow core, washable electrostatic filters and an EC motor.
  • Exceptional Efficiency
  • The Fantech HERO is capable of extracting up to 82% of the heat from the air exiting your home, which is then used to temper the fresh air coming in. With efficiency like that, the Fantech HERO will be your hero!
  • Healthier Home
  • Without proper ventilation, you are subject to indoor air pollutants like chemical products, pet dander or building materials. With an HRV, your home will be ventilated up to 20 times per day, making for a healthier home.
  • EC Motor
  • With integrated electronic controls, energy savings are ensurred no matter the airflow demands with an ECM. Less heat is created with an EC motor, resulting in less maintenance and longer life span.
  • Winterguard™
  • A built-in recirculating defrost system allows for consistent, reliable operation during the winter months.
  • Washable Electrostatic Filters
  • Easily washable, these filters can be used throughout the life of the HERO. With the integrated MERV 8 filter, you will have exceptional filtration.
  • Easy Maintenance and Service
  • An access panel on the HERO allows for simple maintenance and serviceability. The core easily slides out with a 12" clearance for additional service ease.
  • Insulated Cabinet
  • The 24 gauge galvanized steel cabinet is insulated with 3/4" high density expanded polystyrene.
  • Product Includes
  • HERO 150H-EC HRV
  • Wall Mounting Speed Bracket


specs product image PID-99368
Product Category
Heat Recovery Ventilators (HRVs)
General Information
Product Line
Product Category
Heat Recovery Ventilators (HRVs)
Defrost Type Learn More
Defrost Type
ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
Ports Quantity
Port Location
Maximum Air Flow
173 CFM
Apparent Sensible Effectiveness
88 %
Sensible Recovery Efficiency
82 %
Electrical Data
120 Volts
60 Hz
Duct Connection
6 Inches
Product Height
24 7/8 Inches
Product Width
27 7/8 Inches
Product Depth
13 3/8 Inches
Product Weight
50.9 Pounds
Shipping Height
24 7/8 Inches
Shipping Width
27 7/8 Inches
Shipping Length
13 3/8 Inches
Shipping Weight
58 Pounds
CSA Listed
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Motor Warranty
7 Years
