Fantech FSD - 6,993 CFM - Inline Duct Fan - 26" Duct - 208/460V

Fantech FSD - 6,993 CFM - Inline Duct Fan - 26" Duct - 208/460V
Our Price
Compare Prices
Shipping Info
Model: FSD26
$2,060.00
Factory-Direct
Ships in 3-4 Weeks
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Free Lift Gate Service -
Holiday Shipping Schedule
Holiday Schedule -
Duct Diameter
Add-Ons

Free Shipping$2,060.00Buy Now

(as of 08:12 CST - Details)Sales Tax Extra $3,123.00Visit Site
Factory-Direct
Ships in 3-4 Weeks
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • How-To Articles
  • Manuals
Product Description
+
Features
Features

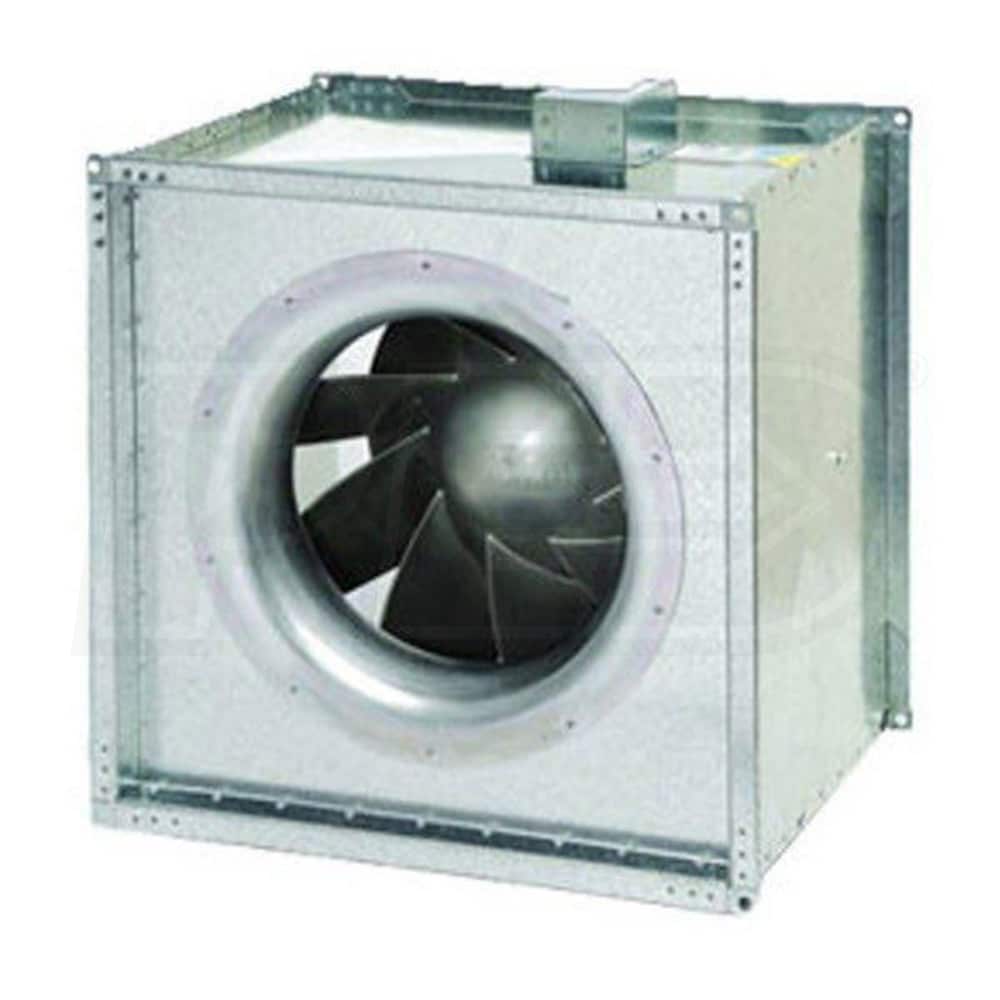

    The Fantech FSD 26 Square Inline Duct Fan is a 6,993 CFM centrifugal supply and exhaust fan designed to provide high airflow with backward curved impellers. It is constructed for 26 inch square venting. FSD Series Duct Fans can install directly within equally sized square ductwork without the need for transitions. This unit is wired for 208/460 volts.
  • Backward Curved Impeller
  • Backward curved impeller blades allow particles to easily pass through the fan blades, preventing a build-up.
  • 100% Speed Controllable
  • On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
  • External Rotor Motor
  • An external rotor motor allows the fan to operate in high-moisture or dust-laden areas.
  • Thermal Overload Protection
  • Thermal overload protection automatically resets the fan when temperatures get too high, avoiding potential damage to the unit due to overheating.
Specifications
General Information
Product Line
FSD
Housing Material
Galvanized Steel
UPC
650737132606
Performance
Maximum Air Flow
6993 CFM
Maximum Sound Level (Sones) ? The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
27
Electrical Data
Voltage
208/460 Volts
Phase
3
Frequency
60 Hz
Current Draw
3.82 Amps
Dimensions
Duct Connection
26 Inches
Product Height
26 Inches
Product Width
26 Inches
Product Depth
20 Inches
Shipping Height
24 Inches
Shipping Width
35 Inches
Shipping Length
35 Inches
Shipping Weight
134 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Features
Features
    The Fantech FSD 26 Square Inline Duct Fan is a 6,993 CFM centrifugal supply and exhaust fan designed to provide high airflow with backward curved impellers. It is constructed for 26 inch square venting. FSD Series Duct Fans can install directly within equally sized square ductwork without the need for transitions. This unit is wired for 208/460 volts.
  • Backward Curved Impeller
  • Backward curved impeller blades allow particles to easily pass through the fan blades, preventing a build-up.
  • 100% Speed Controllable
  • On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
  • External Rotor Motor
  • An external rotor motor allows the fan to operate in high-moisture or dust-laden areas.
  • Thermal Overload Protection
  • Thermal overload protection automatically resets the fan when temperatures get too high, avoiding potential damage to the unit due to overheating.
Specifications
General Information
Product Line
FSD
Housing Material
Galvanized Steel
UPC
650737132606
Performance
Maximum Air Flow
6993 CFM
Maximum Sound Level (Sones) ? The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
27
Electrical Data
Voltage
208/460 Volts
Phase
3
Frequency
60 Hz
Current Draw
3.82 Amps
Dimensions
Duct Connection
26 Inches
Product Height
26 Inches
Product Width
26 Inches
Product Depth
20 Inches
Shipping Height
24 Inches
Shipping Width
35 Inches
Shipping Length
35 Inches
Shipping Weight
134 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Product Specs
+
Specifications
General Information
Product Line
FSD
Housing Material
Galvanized Steel
UPC
650737132606
Performance
Maximum Air Flow
6993 CFM
Maximum Sound Level (Sones) ? The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
27
Electrical Data
Voltage
208/460 Volts
Phase
3
Frequency
60 Hz
Current Draw
3.82 Amps
Dimensions
Duct Connection
26 Inches
Product Height
26 Inches
Product Width
26 Inches
Product Depth
20 Inches
Shipping Height
24 Inches
Shipping Width
35 Inches
Shipping Length
35 Inches
Shipping Weight
134 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
